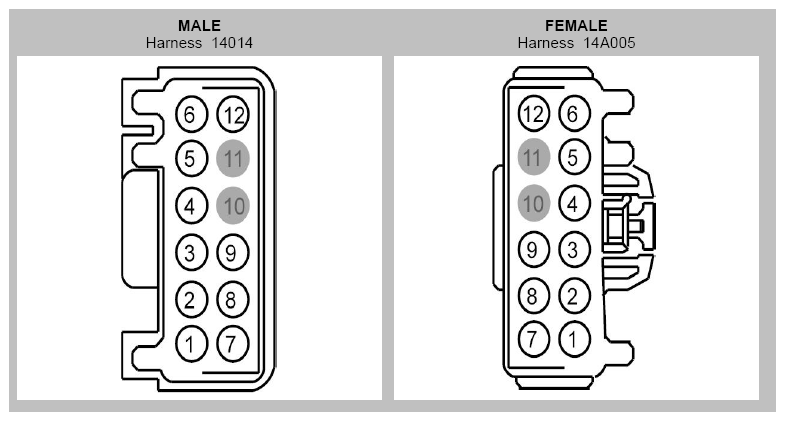

Inline Connector End View (C700)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
VME09 (WH-GN) |
18 |
14A005 - Expedition |
| 1 |
VME12 (BN-WH) |
16 |
14014 |
| 1 |
VME39 (GN-BN) |
18 |
14A005 - Navigator |
| 2 |
RME09 (BN-YE) |
18 |
14A005 - Expedition |
| 2 |
RME12 (BN-BU) |
16 |
14014 |
| 2 |
RME39 (GY-BN) |
18 |
14A005 - Navigator |
| 3 |
CPW16 (BU-OG) |
14 |
14A005 |
| 3 |
CPW18 (GY-VT) |
12 |
14014 |
| 4 |
CPW15 (YE) |
14 |
14A005 |
| 4 |
CPW17 (BN-GN) |
12 |
14014 |
| 5 |
CPL52 (VT-GY) |
14 |
|
| 6 |
VLN18 (BU-WH) |
18 |
Navigator |
| 7 |
CPL11 (GY-BN) |
14 |
|
| 8 |
CPW30 (GY-YE) |
12 |
|
| 9 |
CPL36 (GN) |
20 |
14014 |
| 9 |
CPL39 (YE) |
18 |
14A005 |
| 10 |
* |
* |
|
| 11 |
* |
* |
|
| 12 |
GD138 (BK-WH) |
20 |
14014 |
| 12 |
GD143 (BK-VT) |
18 |
14A005 - except EL or L |
| 12 |
GD143 (BK-VT) |
20 |
14A005 - EL and L |
