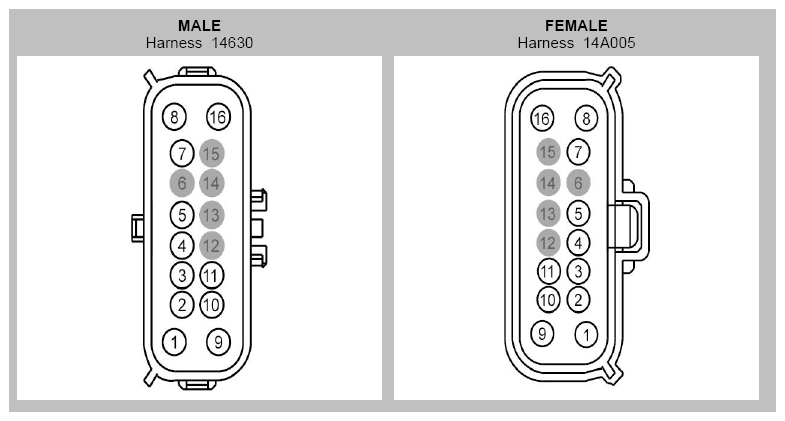

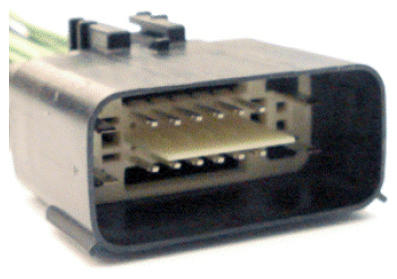

Inline Connector End View (C610)
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | SBP04 (GN-RD) | 16 | 14630 - Navigator |
| 1 | SBP04 (GN-RD) | 16 | 14A005 - Navigator |
| 2 | CPL31 (WH) | 18 | 14A005 |
| 2 | CPL31 (WH) | 20 | 14630 |
| 3 | CBP41 (BU) | 18 | 14A005 - Navigator |
| 3 | CBP41 (BU) | 18 | 14630 - Navigator |
| 4 | VR218 (YE-OG) | 18 | |
| 5 | RR132 (BU-WH) | 18 | |
| 6 | * | * | |
| 7 | CPL11 (GY-BN) | 14 | |
| 8 | CPW20 (WH-OG) | 12 | Expedition |
| 8 | CPW20 (WH-OG) | 18 | Navigator |
| 9 | CPW19 (VT) | 12 | Expedition |
| 9 | CPW19 (VT) | 18 | 14A005 - Navigator |
| 9 | CPW19 (VT) | 18 | 14630 - Navigator |
| 10 | CPL52 (VT-GY) | 14 | |
| 11 | CPW31 (GN-WH) | 18 | Navigator |
| 12 | * | * | |
| 13 | * | * | |
| 14 | * | * | |
| 15 | * | * | |
| 16 | GD138 (BK-WH) | 16 | 14630 - Navigator |
| 16 | GD138 (BK-WH) | 18 | 14A005 |
| 16 | GD138 (BK-WH) | 20 | 14630 - Expedition |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-892 | Service Part Number: 7U2Z-14S411-KA Gauge: 12 16 Pin material: Tin&Silver Cavities: 16 Vehicle Uses:
|
