Inline Connector End View (C438)

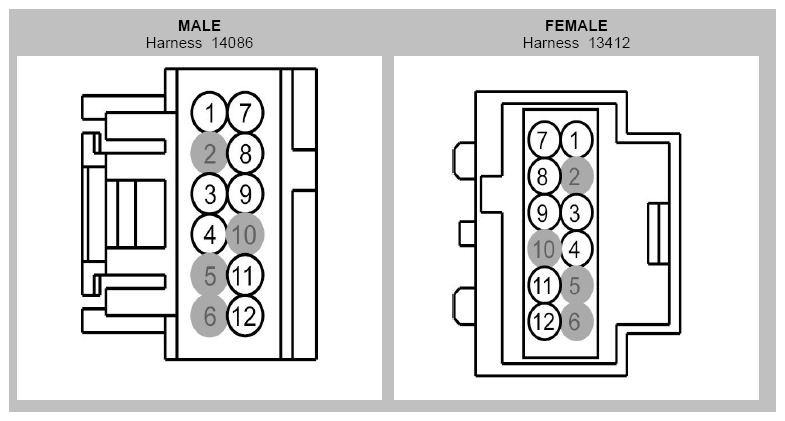

Fig 1: Identifying Inline Connector (C438)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Qualifier
1	* (WH-VT)	18	13412
1	CPL60 (BN-YE)	20	14086
2	*	*
3	* (BK)	18	13412
3	GD150 (BK-WH)	18	14086
4	* (LG)	18	13412
4	GD133 (BK)	18	14086
5	*	*
6	*	*
7	* (GY)	18	13412
7	VMP19 (WH-GN)	20	14086
8	* (BK)	18	13412
8	RMP19 (BN-VT)	20	14086
9	* (OG)	18	13412
9	DMP19 (BK)	20	14086
10	*	*
11	* (BN)	18	13412
11	CLS30 (VT-WH)	18	14086
12	* (TN)	18	13412
12	CBP35 (YE-GY)	18	14086

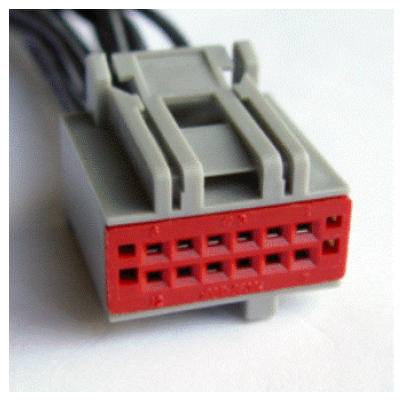

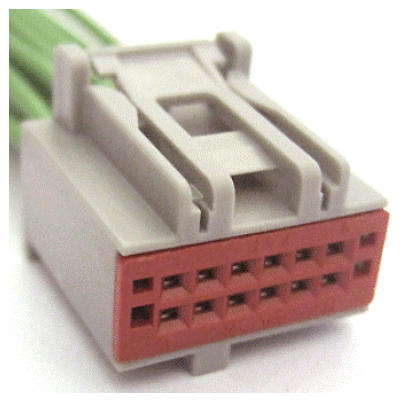

Available Pigtail Kits
Pigtail Kit Part Number WPT-949	Service Part Number: 3U2Z-14S411-BMAB Gauge: 18 Pin material: Silver Cavities: 12 Vehicle Uses: Control - Navigation Display Module - Driver Door Module - Front Interface Monitor - Video/DVD Switch - Gear Shift Select/Neutral Safety
Pigtail Kit Part Number WPT-760	Service Part Number: 3U2Z-14S411-BMAA Gauge: 18 Pin material: Tin Cavities: 12 Vehicle Uses: Coil - Ignition Lamp - Storage Compartment - Trunk Mirror - Rearview Module - Heated Seat (Rear)
