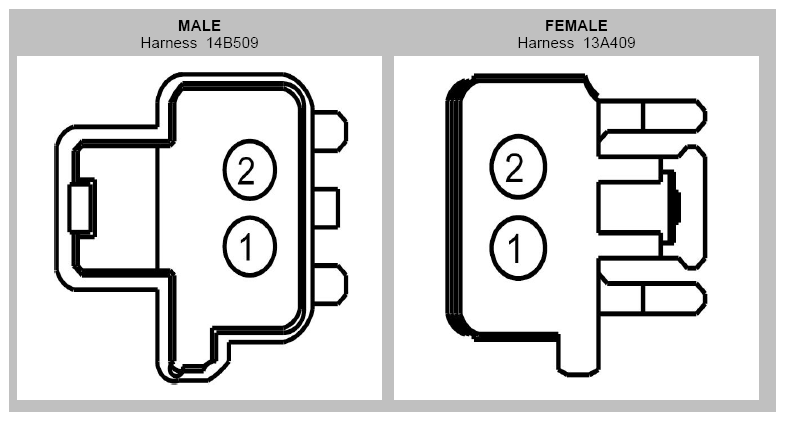

Inline Connector End View (C431)

Fig 1: Identifying Inline Connector (C431)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Qualifier
1	CPS49 (BN-GN)	12	13A409
1	CPS51 (VT-GY)	12	14B509
2	CPS50 (BU-BN)	12	13A409
2	CPS52 (YE-GN)	12	14B509

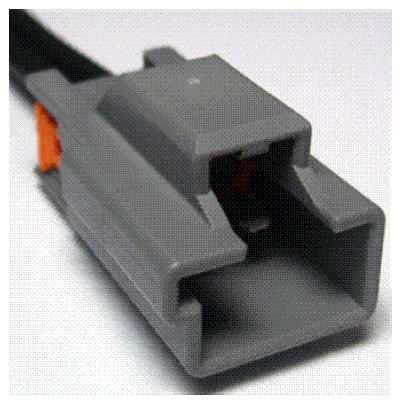

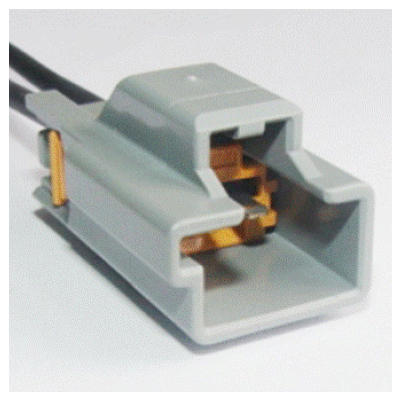

Available Pigtail Kits
Pigtail Kit Part Number WPT-879	Service Part Number: 6U2Z-14S411-PA Gauge: 12 Pin material: Tin Cavities: 2 Vehicle Uses: Module - Liftgate Motor - Air Suspension Compressor Speaker - Front Switch - Heated Seat - LH - Rear
Pigtail Kit Part Number WPT-1149	Service Part Number: 6U2Z-14S411-PB Gauge: 10 Pin material: Tin Cavities: 2 Vehicle Uses: Element - Heated Windshield Motor - Convertible Top Motor - Power Window - LH - Rear Motor - Power Window - RH - Rear Motor - Seat Lumbar Switch - Heater A/C Blower (Rear) Terminal - Rear Window Defroster Grid
