Inline Connector End View (C421)

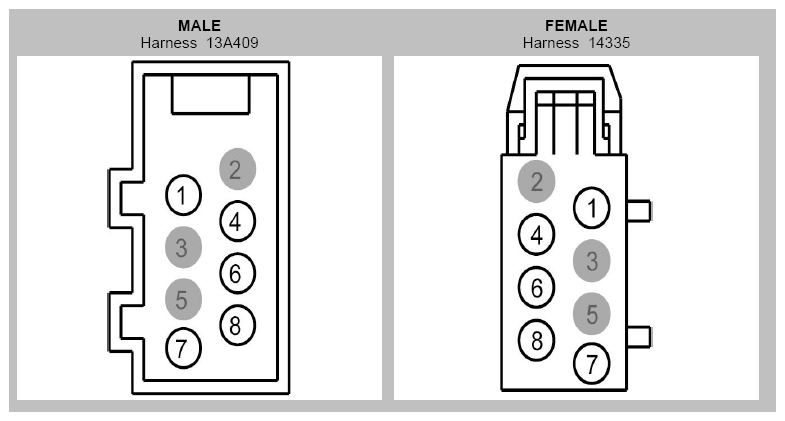

Fig 1: Identifying Inline Connector (C421)
G08735122Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Qualifier
1 CPR39 (VT-WH) 20
2 * *
3 * *
4 CPW26 (BU-BN) 20
5 * *
6 CPR31 (VT-BN) 20
7 CPR40 (YE-OG) 20
8 CPW25 (YE-BU) 20
