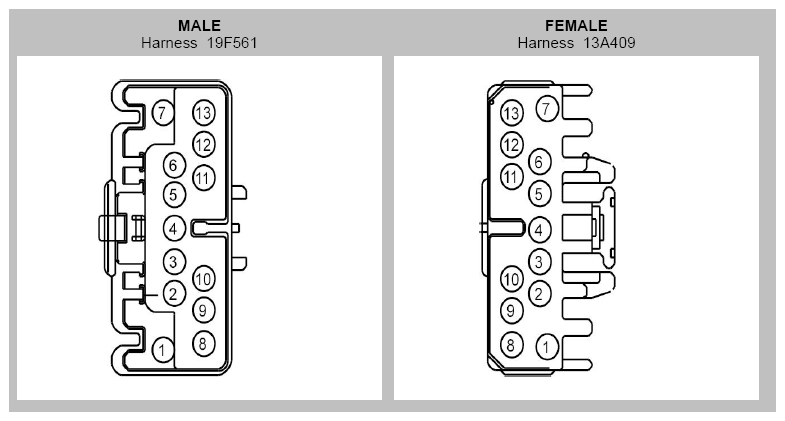

Inline Connector End View (C408)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
CHA06 (YE-VT) |
12 |
|
| 2 |
CH233 (VT-BN) |
20 |
|
| 3 |
CH234 (YE-GN) |
20 |
|
| 4 |
VH439 (GY-VT) |
20 |
|
| 5 |
CH207 (BU-GY) |
20 |
|
| 6 |
CH208 (GN-OG) |
20 |
|
| 7 |
GD151 (BK-GN) |
12 |
|
| 8 |
CHA08 (GN-OG) |
12 |
|
| 9 |
LH111 (BN-WH) |
20 |
|
| 10 |
RH111 (GY-BU) |
20 |
|
| 11 |
CHA07 (BU-GY) |
12 |
|
| 12 |
VH438 (GN-VT) |
20 |
|
| 13 |
CHA05 (BN-WH) |
12 |
|
