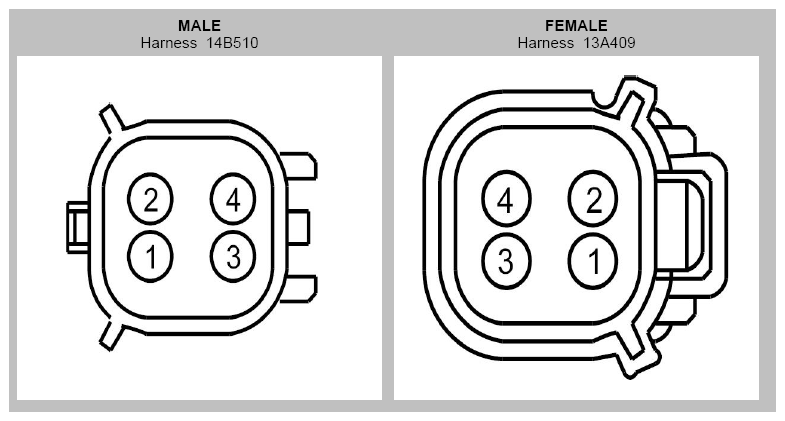

Inline Connector End View (C4002)
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | GD150 (BK-WH) | 16 | 14B510 |
| 1 | GD150 (BK-WH) | 18 | 13A409 |
| 2 | RHS41 (GN-BN) | 20 | 14B510 |
| 2 | RHS41 (GN-BN) | 20 | 13A409 |
| 3 | VHS42 (GN) | 20 | 14B510 |
| 3 | VHS45 (GY-BN) | 20 | 13A409 |
| 4 | CHS39 (GN-BU) | 18 | 14B510 |
| 4 | CHS43 (GY-BU) | 18 | 13A409 |

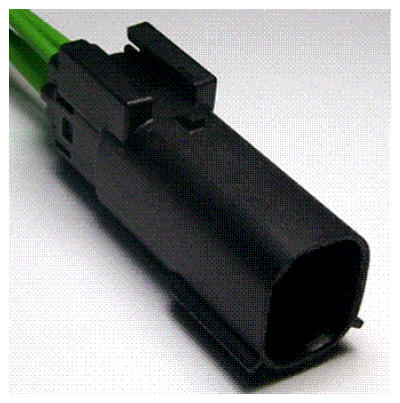

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1288 | Service Part Number: CU2Z-14S411-ZA Gauge: 16 Pin material: Silver Cavities: 4 Vehicle Uses:
|
