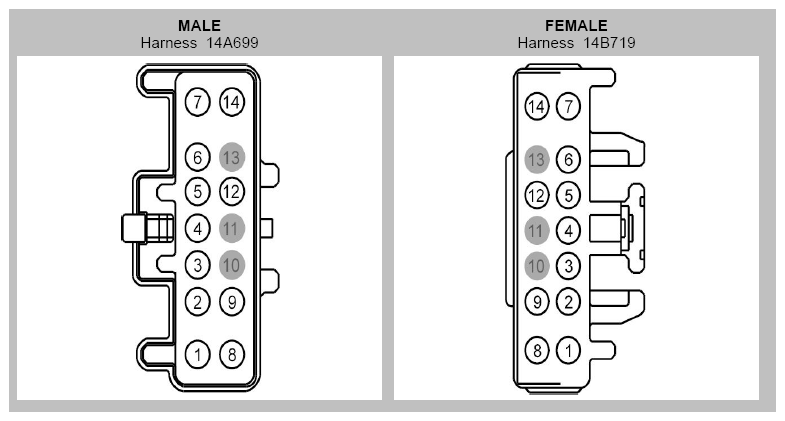

Inline Connector End View (C328)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
CPS19 (GY-VT) |
14 |
14B719 |
| 1 |
CPS21 (WH-OG) |
12 |
14A699 |
| 2 |
CHS04 (YE-GY) |
18 |
14B719 |
| 2 |
CHS09 (GY) |
18 |
14A699 |
| 3 |
CHS03 (GN-BN) |
18 |
14B719 |
| 3 |
CHS08 (BN-YE) |
18 |
14A699 |
| 4 |
CHS01 (GY-VT) |
16 |
14B719 |
| 4 |
CHS06 (BU-BN) |
14 |
14A699 |
| 5 |
RHS15 (GY-BN) |
18 |
14B719 |
| 5 |
RHS20 (GN-BU) |
18 |
14A699 |
| 6 |
RHS01 (WH-VT) |
16 |
14B719 |
| 6 |
RHS06 (WH) |
14 |
14A699 |
| 7 |
CPS07 (GY-BN) |
12 |
14B719 |
| 7 |
CPS39 (GY-YE) |
12 |
14A699 |
| 8 |
CPS08 (VT-OG) |
12 |
14B719 |
| 8 |
CPS40 (VT-GY) |
12 |
14A699 |
| 9 |
VHS35 (VT-OG) |
18 |
14B719 |
| 9 |
VHS36 (YE-BU) |
18 |
14A699 |
| 10 |
* |
* |
14A699 |
| 10 |
VPS12 (GY-OG) |
18 |
14B719 |
| 11 |
* |
* |
14A699 |
| 11 |
RPS13 (GN-OG) |
18 |
14B719 |
| 12 |
CHS13 (VT-BN) |
18 |
14B719 |
| 12 |
CHS14 (GN) |
18 |
14A699 |
| 13 |
* |
* |
|
| 14 |
CPS18 (BN-GN) |
14 |
14B719 |
| 14 |
CPS20 (VT) |
12 |
14A699 |
