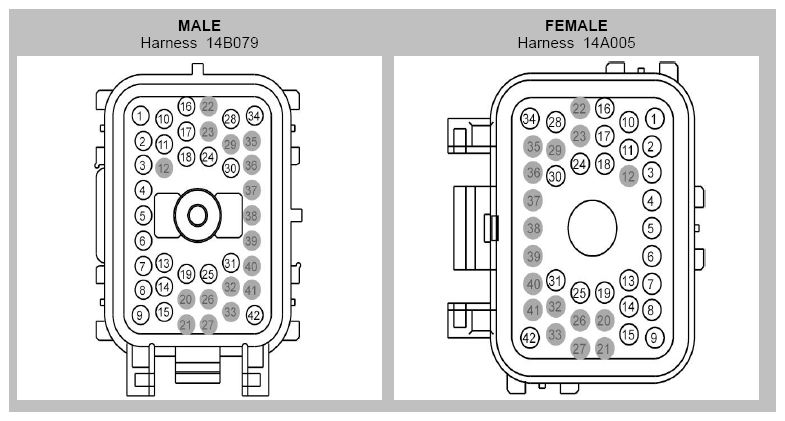

Inline Connector End View (C314)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
GD143 (BK-VT) |
14 |
|
| 2 |
VME12 (BN-WH) |
18 |
Expedition |
| 3 |
RME12 (BN-BU) |
18 |
Expedition |
| 4 |
VME09 (WH-GN) |
18 |
Expedition |
| 5 |
RME09 (BN-YE) |
18 |
Expedition |
| 6 |
CBP35 (YE-GY) |
20 |
|
| 7 |
CDC37 (GY-VT) |
20 |
|
| 8 |
CHS39 (GN-BU) |
18 |
|
| 9 |
SBB66 (YE-RD) |
14 |
|
| 10 |
VDB06 (GY-OG) |
20 |
14A005 - base Expedition |
| 10 |
VDB06 (GY-OG) |
20 |
14B079 |
| 10 |
VDB06 (GY-OG) |
22 |
14A005 |
| 11 |
VDB07 (VT-OG) |
20 |
14A005 - base Expedition |
| 11 |
VDB07 (VT-OG) |
20 |
14B079 |
| 11 |
VDB07 (VT-OG) |
22 |
14A005 |
| 12 |
* |
* |
|
| 13 |
VHS45 (GY-BN) |
20 |
14A005 |
| 13 |
VHS45 (GY-BN) |
20 |
14B079 |
| 14 |
SBB65 (RD) |
14 |
14B079 - Navigator |
| 14 |
SBB65 (RD) |
14 |
14A005 - Navigator |
| 15 |
VHS42 (GN) |
20 |
14A005 |
| 15 |
VHS42 (GN) |
20 |
14B079 |
| 16 |
RME12 (BN-BU) |
16 |
14A005 - Expedition |
| 16 |
VME12 (BN-WH) |
18 |
14B079 - Expedition |
| 17 |
RME12 (BN-BU) |
18 |
14B079 - Expedition |
| 17 |
VME12 (BN-WH) |
16 |
14A005 - Expedition |
| 18 |
RME09 (BN-YE) |
18 |
14A005 - Expedition |
| 18 |
RME09 (BN-YE) |
18 |
14B079 - Expedition |
| 19 |
VME09 (WH-GN) |
18 |
Expedition |
| 20 |
* |
* |
|
| 21 |
* |
* |
|
| 22 |
* |
* |
|
| 23 |
* |
* |
|
| 24 |
RHS41 (GN-BN) |
20 |
|
| 25 |
VDB05 (WH) |
20 |
|
| 26 |
* |
* |
|
| 27 |
* |
* |
|
| 28 |
CHS43 (GY-BU) |
18 |
|
| 29 |
* |
* |
|
| 30 |
SBP03 (BU-RD) |
18 |
14B079 |
| 30 |
SBP03 (BU-RD) |
18 |
14A005 |
| 31 |
VDB04 (WH-BU) |
20 |
14B079 |
| 31 |
VDB04 (WH-BU) |
22 |
14A005 |
| 32 |
* |
* |
|
| 33 |
* |
* |
|
| 34 |
SBP18 (YE-RD) |
16 |
|
| 35 |
* |
* |
|
| 36 |
* |
* |
|
| 37 |
* |
* |
|
| 38 |
* |
* |
|
| 39 |
* |
* |
|
| 40 |
* |
* |
|
| 41 |
* |
* |
|
| 42 |
VLN18 (BU-WH) |
18 |
Navigator |
