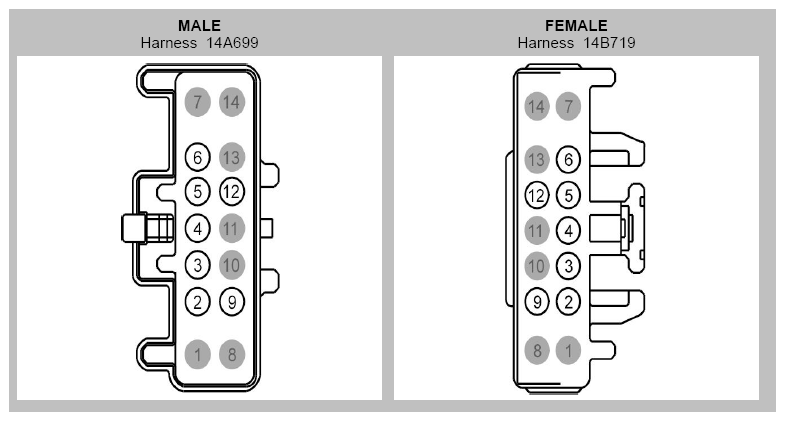

Inline Connector End View (C313)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
* |
* |
|
| 2 |
CHS09 (GY) |
18 |
|
| 3 |
CHS08 (BN-YE) |
18 |
|
| 4 |
CHS06 (BU-BN) |
16 |
|
| 5 |
RHS20 (GN-BU) |
18 |
14B719 |
| 5 |
RHS20 (GN-BU) |
18 |
14A699 |
| 6 |
RHS06 (WH) |
16 |
|
| 7 |
* |
* |
|
| 8 |
* |
* |
|
| 9 |
VHS36 (YE-BU) |
18 |
|
| 10 |
* |
* |
|
| 11 |
* |
* |
|
| 12 |
CHS14 (GN) |
18 |
|
| 13 |
* |
* |
|
| 14 |
* |
* |
|
