Inline Connector End View (C312)

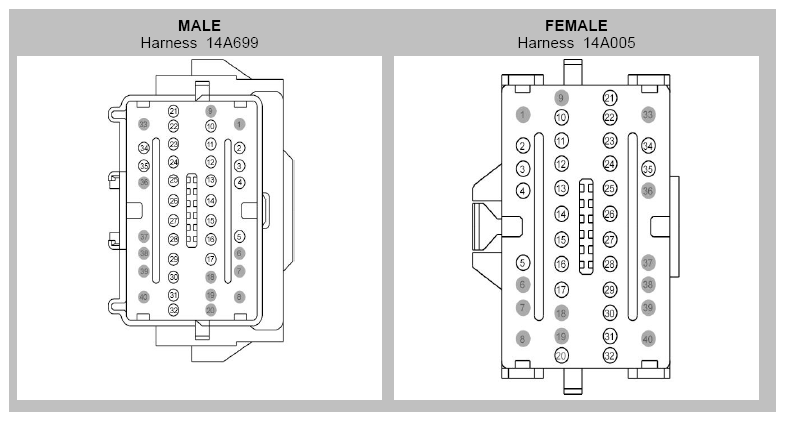

Fig 1: Identifying Inline Connector (C312)
G08735079Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Qualifier
1 * *
2 CPP04 (GY) 14 Navigator
3 CPP05 (WH-VT) 14 Navigator
4 CPP14 (BN-WH) 20 Navigator
5 CPP15 (YE-VT) 20 Navigator
6 * *
7 * *
8 * *
9 * *
10 SBP02 (YE-RD) 18 14A699 - with memory
10 SBP02 (YE-RD) 18 14A005 - with memory
11 SBP12 (GN-RD) 20 14A699 - with memory
11 SBP12 (GN-RD) 20 14A005 - with memory
12 CPP09 (VT-OG) 20 with memory
13 CPP10 (BN-BU) 20 with memory
14 CHS01 (GY-VT) 16 with climate control seats
15 RHS15 (GY-BN) 18 with climate control seats
16 LPP06 (YE-BU) 20 with memory
17 RPP06 (GN) 20 with memory
18 * *
19 * *
20 * *
21 VPM38 (BN-GN) 18 with memory
21 VPM38 (BN-GN) 20 14A699 - with memory
22 VPM35 (YE-BU) 18 with memory
22 VPM35 (YE-BU) 20 14A699 - with memory
23 RHS02 (BU-OG) 16 with climate control seats
24 VHS26 (VT) 18 with climate control seats
25 RHS05 (YE-VT) 18 with climate control seats
26 RHS01 (WH-VT) 16 with climate control seats
27 VHS35 (VT-OG) 18 with climate control seats
28 RHS03 (GY-OG) 18 with climate control seats
29 CHS13 (VT-BN) 18 with climate control seats
30 CHS03 (GN-BN) 18 with climate control seats
31 CHS04 (YE-GY) 18 with climate control seats
32 CHS02 (YE-BU) 16 with climate control seats
33 * *
34 CPP02 (BN) 14 with memory
35 CPP01 (WH-OG) 14 with memory
36 * *
37 * *
38 * *
39 * *
40 * *
