Inline Connector End View (C3052)

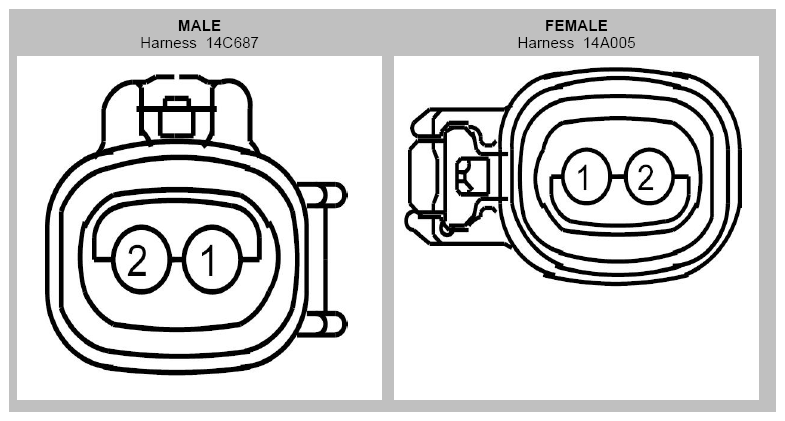

Fig 1: Identifying Inline Connector (C3052)
G08735562Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Qualifier
1 CR110 (GN-BN) 20 14C687
1 CR112 (BU-GY) 20 14A005
2 RR110 (GY-OG) 20 14C687
2 RR112 (GN-OG) 20 14A005
