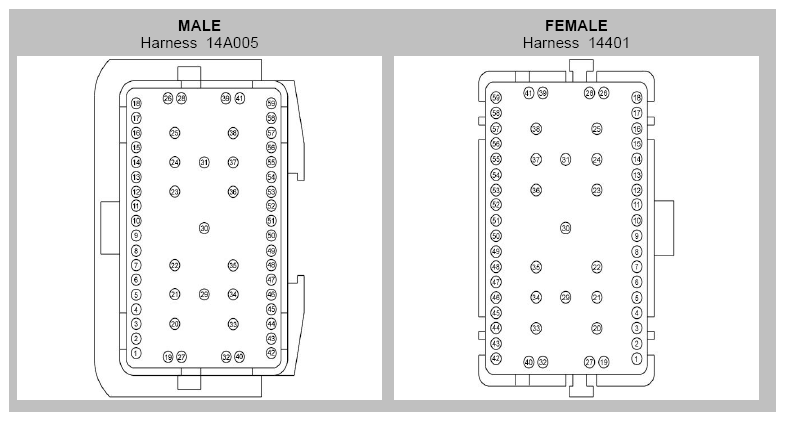

Inline Connector End View (C238)
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | CPR63 (GY-YE) | 20 | |
| 2 | VDB06 (GY-OG) | 20 | |
| 3 | VDB07 (VT-OG) | 20 | |
| 4 | CLS30 (VT-WH) | 18 | 14401 |
| 4 | CLS30 (VT-WH) | 18 | 14A005 |
| 5 | VLN18 (BU-WH) | 18 | Navigator |
| 6 | CLS17 (YE-GY) | 18 | |
| 7 | CRW20 (GY-YE) | 20 | 14401 |
| 7 | CRW20 (GY-YE) | 22 | 14A005 |
| 8 | CRW21 (YE-VT) | 20 | 14401 |
| 8 | CRW21 (YE-VT) | 22 | 14A005 |
| 9 | VPP17 (VT-BN) | 20 | Navigator |
| 10 | LPP06 (YE-BU) | 20 | |
| 11 | RPP06 (GN) | 20 | |
| 12 | CPP01 (VT-OG) | 20 | 14401 - Expedition with memory |
| 12 | CPP09 (VT-OG) | 20 | 14401 - Navigator |
| 12 | CPP09 (VT-OG) | 20 | 14A005 |
| 13 | CPP10 (BN-BU) | 20 | |
| 14 | VME01 (GN-VT) | 18 | Navigator |
| 15 | RME01 (GY) | 18 | Navigator |
| 16 | VME02 (VT) | 18 | Navigator |
| 17 | RME02 (YE) | 18 | Navigator |
| 18 | SME23 (VT-RD) | 20 | 14A005 - Expedition |
| 18 | SME23 (VT-RD) | 22 | 14401 - Expedition |
| 19 | RR104 (WH-BU) | 20 | |
| 20 | CPP02 (BN) | 14 | |
| 21 | VME09 (WH-GN) | 18 | Expedition |
| 22 | RME09 (BN-YE) | 18 | Expedition |
| 23 | VME22 (VT-GN) | 18 | Expedition |
| 24 | RME22 (GN-WH) | 18 | Expedition |
| 25 | CPP01 (WH-OG) | 14 | |
| 26 | RR101 (YE-GN) | 20 | |
| 27 | CR104 (YE-GY) | 20 | |
| 28 | CR101 (VT-BN) | 20 | |
| 29 | LRD12 (BU-GY) | 18 | 14A005 |
| 29 | LRD12 (BU-GY) | 20 | 14401 |
| 30 | GD114 (BL-BU) | 14 | 14A005 - Expedition |
| 30 | GD114 (BL-BU) | 18 | 14401 - Expedition |
| 31 | RRD12 (BN) | 18 | 14A005 |
| 31 | RRD12 (BN) | 20 | 14401 |
| 32 | RR102 (WH) | 20 | |
| 33 | CPP04 (GY) | 14 | Navigator |
| 34 | GD133 (BK) | 14 | |
| 35 | DME22 (OG) | 20 | Expedition |
| 36 | VDB06 (GY-OG) | 22 | Expedition |
| 37 | VDB07 (VT-OG) | 22 | Expedition |
| 38 | CPP05 (WH-VT) | 14 | Navigator |
| 39 | RR103 (VT-GN) | 20 | |
| 40 | CR102 (BU) | 20 | |
| 41 | CR103 (GY-BU) | 20 | |
| 42 | VME30 (GN-BN) | 18 | Navigator |
| 43 | VME39 (GN-BN) | 18 | Navigator |
| 44 | RME39 (GY-BN) | 18 | Navigator |
| 45 | CME13 (YE-OG) | 20 | |
| 46 | RME30 (VT-BN) | 18 | Navigator |
| 47 | CMP08 (GY-BN) | 20 | |
| 48 | RMP09 (BU-GN) | 20 | 14401 |
| 48 | RMP09 (BU-GN) | 22 | 14A005 |
| 49 | CH208 (GN-OG) | 20 | Navigator |
| 50 | CPP14 (BN-WH) | 20 | Navigator |
| 51 | CPP15 (YE-VT) | 20 | Navigator |
| 52 | VDB04 (WH-BU) | 20 | |
| 53 | VDB05 (WH) | 20 | |
| 54 | VME08 (GN-OG) | 18 | Navigator |
| 55 | RME08 (GY-OG) | 18 | Navigator |
| 56 | VME07 (WH) | 18 | 14A005 |
| 56 | VME07 (WH) | 22 | 14401 |
| 57 | RME07 (WH-BN) | 18 | 14A005 |
| 57 | RME07 (WH-BN) | 22 | 14401 |
| 58 | CPL27 (WH-BN) | 20 | |
| 59 | CH208 (GN-OG) | 20 | Expedition |
