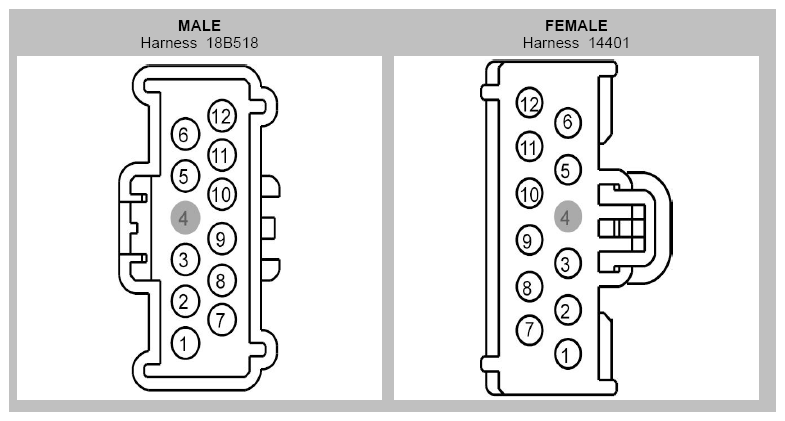

Inline Connector End View (C237)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
CH428 (GN-WH) |
12 |
|
| 2 |
CH429 (GY-BN) |
12 |
|
| 3 |
CH430 (VT-OG) |
12 |
|
| 4 |
* |
* |
|
| 5 |
CH202 (BU-GN) |
20 |
|
| 6 |
CH402 (YE-GN) |
12 |
|
| 7 |
GD138 (BK-WH) |
12 |
|
| 8 |
CH239 (BU-WH) |
20 |
|
| 9 |
CH229 (WH-BU) |
20 |
|
| 10 |
CH203 (GN-BN) |
20 |
|
| 11 |
CH238 (YE-OG) |
20 |
|
| 12 |
CH228 (YE-GY) |
20 |
|
