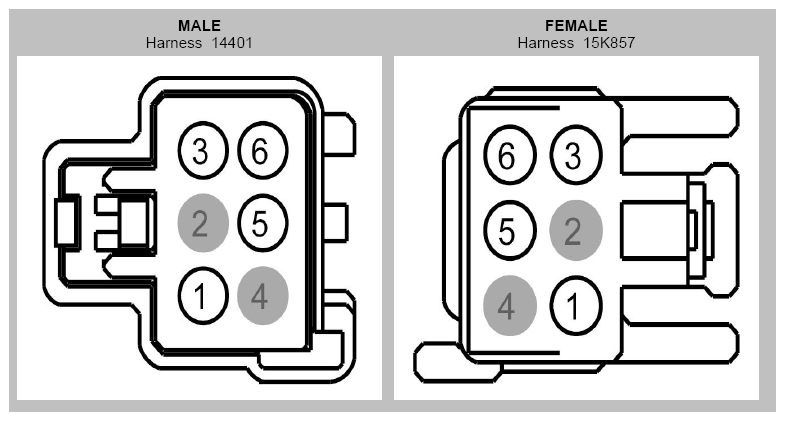

Inline Connector End View (C219)

Fig 1: Identifying Inline Connector (C219)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Qualifier
1	LPP06 (YE-BU)	20	with memory
2	*	*
3	RPP06 (GN)	20	with memory
4	*	*
5	CPP02 (BN)	14	14401 - with memory
5	CPP02 (BN)	14	15K857
5	CPP10 (BN)	14	14401 - without memory
6	CPP01 (WH-OG)	14	14401 - with memory
6	CPP01 (WH-OG)	14	15K857
6	CPP09 (WH-OG)	14	14401 - without memory

Available Pigtail Kits

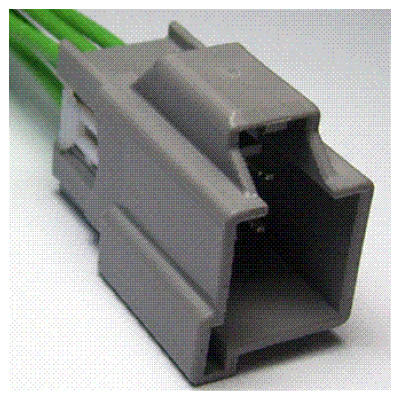

Pigtail Kit Part Number WPT-444	Service Part Number: 3U2Z-14S411-NBA Gauge: 16 Pin material: Tin Cavities: 6 Vehicle Uses: Element - Heated Seat Lamp - CHMSL (Center High Mount Stop Lamp) Lamp - Courtesy - Footwell Lamp - Park/Turn/Stop Lamp - Park/Turn/Stop/Reverse - Inline (Male) Motor - Adjustable Pedal Switch - Gear Shift Select/Neutral Safety Switch - Multifunction

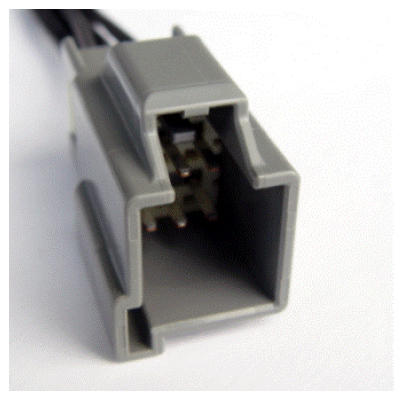

Pigtail Kit Part Number WPT-1299	Service Part Number: 3U2Z-14S411-NBB Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses: Connector - Inline Element - Heated Seat Inverter - DC to AC Lamp - CHMSL (Center High Mount Stop Lamp) Lamp - Courtesy - Footwell Lamp - License Lamp - Park/Turn/Stop Lamp - Top Finish Panel Motor - Adjustable Pedal Switch - Gear Shift Select/Neutral Safety Switch - Multifunction
