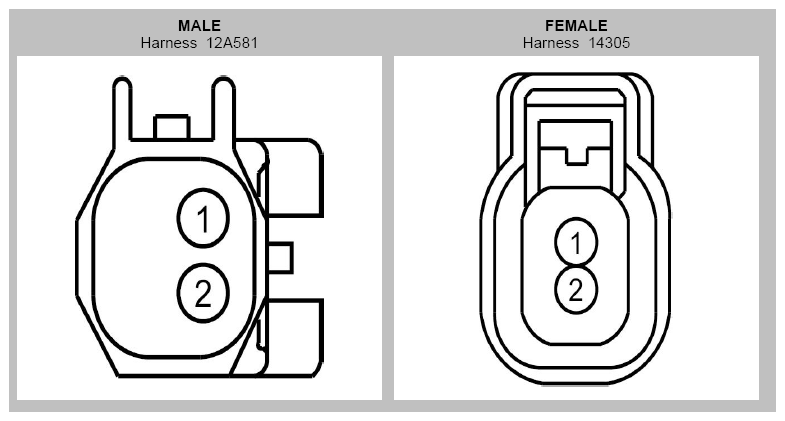

Inline Connector End View (C192)

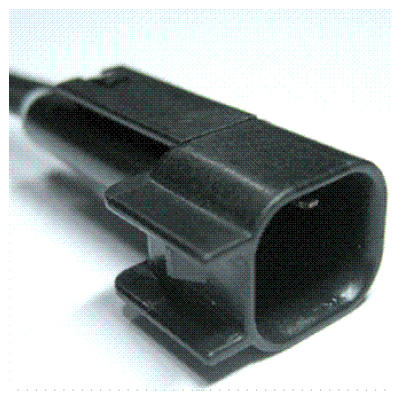

Fig 1: Identifying Inline Connector (C192)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Qualifier
1	CDC10 (BU-OG)	18
2	CDC15 (VT)	18

Available Pigtail Kits
Pigtail Kit Part Number WPT-1193	Service Part Number: 3U2Z-14S411-DCAB Gauge: 16 Pin material: Tin (greased) Cavities: 2 Vehicle Uses: Element - Heated Seat Lamp - CHMSL (Center High Mount Stop Lamp) Lamp - Fog/Driving Lamp - Side Marker (Rear Fender) Mirror - Sideview Sensor - Crash (Engine Compartment) Speaker - Tweeter - LH - Front Speaker - Tweeter - RH - Front
