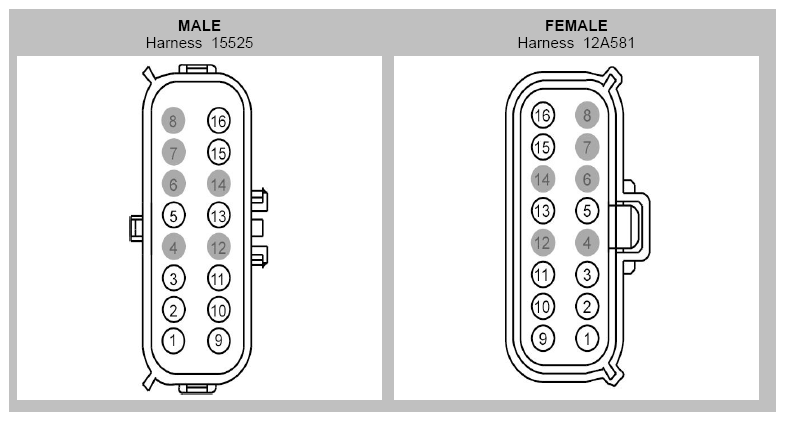

Inline Connector End View (C146)
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | CCF14 (GN-OG) | 18 | 12A581 - 4x4 |
| 1 | CCF14 (GN-OG) | 18 | 15525 - 4x4 Expedition |
| 2 | CCF08 (GY-OG) | 14 | 12A581 - 4x4 |
| 2 | CCF08 (GY-OG) | 14 | 15525 - 4x4 Expedition |
| 3 | CCF07 (BN-GN) | 14 | 12A581 - 4x4 |
| 3 | CCF07 (BN-GN) | 14 | 15525 - 4x4 Expedition |
| 4 | * | * | |
| 5 | CCF04 (VT-OG) | 14 | 15525 - 4x4 Navigator |
| 5 | CCF17 (WH-OG) | 18 | 12A581 - 4x4 |
| 5 | CCF17 (WH-OG) | 18 | 15525 - 4x4 Expedition |
| 6 | * | * | |
| 7 | * | * | |
| 8 | * | * | |
| 9 | CCF16 (VT-GN) | 18 | 12A581 - 4x4 |
| 9 | CCF16 (VT-GN) | 18 | 15525 - 4x4 Expedition |
| 10 | RCF09 (BN-WH) | 18 | 12A581 - 4x4 Expedition |
| 10 | RCF09 (BN-WH) | 18 | 15525 - 4x4 Expedition |
| 11 | CET34 (BN-GN) | 20 | |
| 12 | * | * | |
| 13 | CBK02 (GN) | 16 | |
| 14 | * | * | |
| 15 | CCF15 (BN-YE) | 18 | 12A581 - 4x4 |
| 15 | CCF15 (BN-YE) | 18 | 15525 - 4x4 Expedition |
| 16 | CCF03 (GY-BN) | 14 | 4x4 |

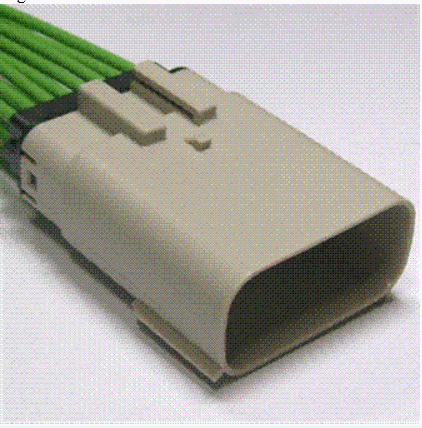

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1321 | Service Part Number: DU2Z-14S411-SA Gauge: 18 Pin material: Silver Cavities: 16 Vehicle Uses:
|
