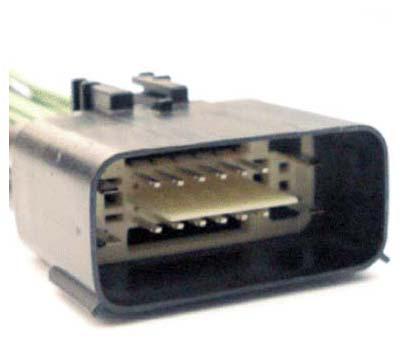

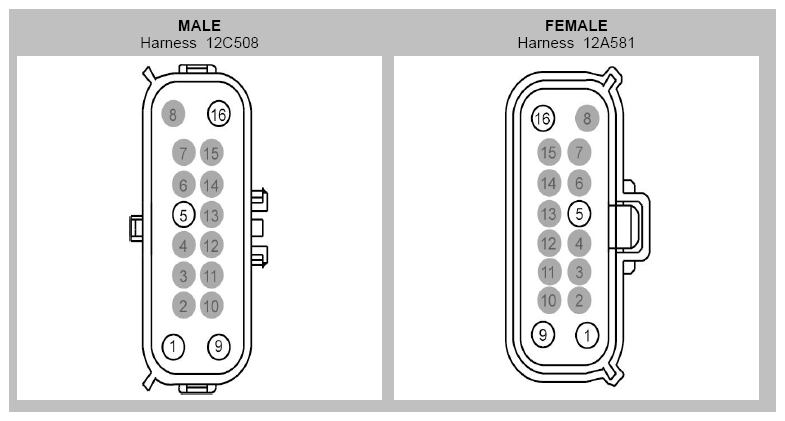

Inline Connector End View (C145)
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | CBK04 (VT) | 16 | 12C508 |
| 1 | CBK04 (VT) | 18 | 12A581 |
| 2 | * | * | |
| 3 | * | * | |
| 4 | * | * | |
| 5 | CMC24 (GY) | 18 | 12C508 |
| 5 | CMC24 (GY) | 20 | 12A581 |
| 6 | * | * | |
| 7 | * | * | |
| 8 | * | * | |
| 9 | CBK01 (BU) | 12 | 12A581 |
| 9 | CBK01 (BU) | 16 | 12C508 |
| 10 | * | * | |
| 11 | * | * | |
| 12 | * | * | |
| 13 | * | * | |
| 14 | * | * | |
| 15 | * | * | |
| 16 | CBK02 (GN) | 18 | 12C508 |
| 16 | CBK03 (GN) | 18 | 12A581 |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-892 | Service Part Number: 7U2Z-14S411-KA Gauge: 12 16 Pin material: Tin&Silver Cavities: 16 Vehicle Uses:
|
