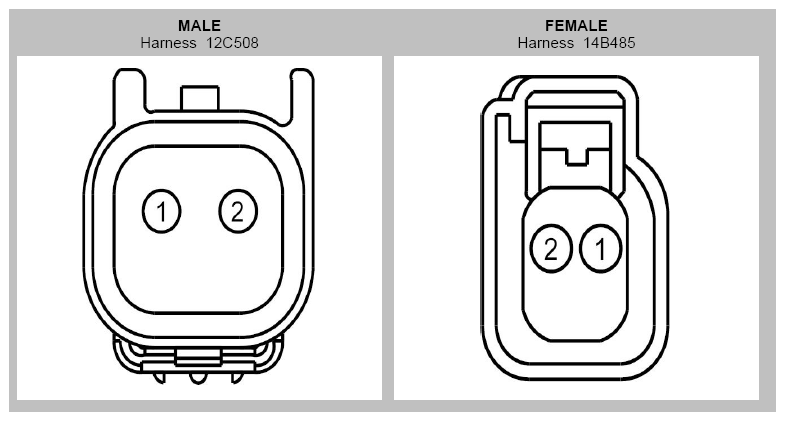

Inline Connector End View (C144)

Fig 1: Identifying Inline Connector (C144)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Qualifier
1	VE712 (BU-GY)	18	14B485
1	VE712 (BU-GY)	20	12C508
2	RE405 (GN-WH)	18	14B485
2	RE405 (GN-WH)	20	12C508

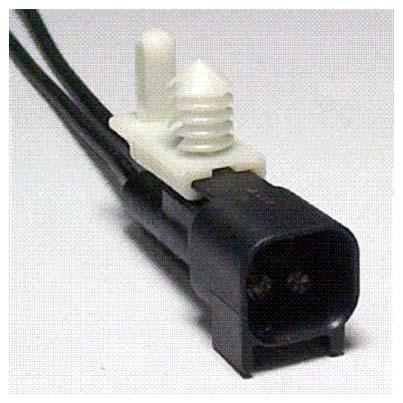

Available Pigtail Kits
Pigtail Kit Part Number WPT-1186	Service Part Number: BU2Z-14S411-AKA Gauge: 16 Pin material: Tin (greased) Cavities: 2 Vehicle Uses: Speaker - Tweeter - LH - Front Speaker - Tweeter - LH - Rear Speaker - Tweeter - RH - Front Speaker - Tweeter - RH - Rear Switch - Seatbelt
