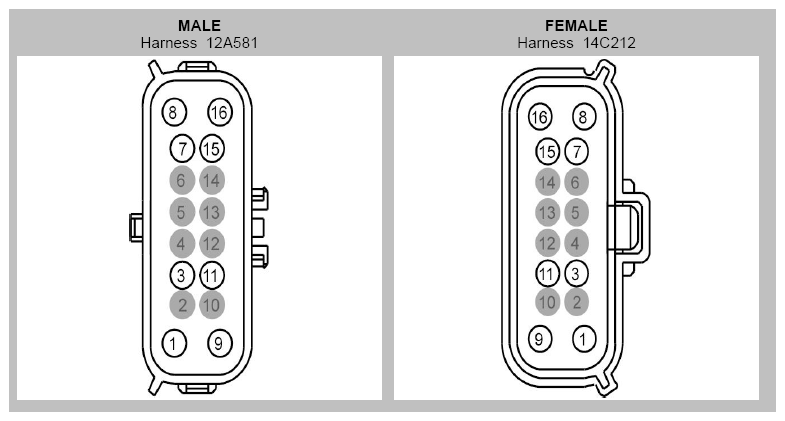

Inline Connector End View (C110)

Fig 1: Identifying Inline Connector (C110)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Qualifier
1	CLF21 (GY-VT)	18
2	*	*
3	VMP13 (BU-OG)	20
4	*	*
5	*	*
6	*	*
7	VMP11 (BU-GN)	20
8	RMP06 (YE-OG)	20
9	LMP06 (VT-GY)	20
10	*	*
11	VMP10 (WH-BU)	20	14C212
11	VMP10 (WH-BU)	20	12A581
12	*	*
13	*	*
14	*	*
15	VMP12 (BU-GY)	20
16	GD120 (BK-GN)	18
