Ignition Switch Connector End View (C250)

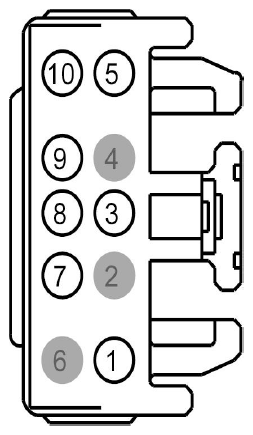

Fig 1: Identifying Ignition Switch Connector (C250)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	CDC34 (WH-OG)	18	SWITCH - IGNITION # RUN; START
2	*	*	Not Used
3	CDC30 (BU-GY)	18	SWITCH - IGNITION # KEY IN
4	*	*	Not Used
5	CDC33 (VT-GN)	14	SWITCH - IGNITION # RUN; ACCESSORY
6	*	*	Not Used
7	CDC32 (BN-YE)	14	SWITCH - IGNITION # RUN
8	SBP27 (BU-RD)	14	FUSE - 27 OR CIRCUIT BREAKER
9	SBP27 (BU-RD)	14	FUSE - 27 OR CIRCUIT BREAKER
10	CDC35 (BU-WH)	20	SWITCH - IGNITION # START

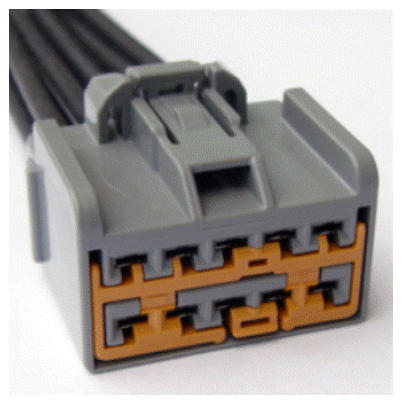

Available Pigtail Kits
Pigtail Kit Part Number WPT-516	Service Part Number: 3U2Z-14S411-TJA Gauge: 12 Pin material: Tin Cavities: 9 Vehicle Uses Switch - Headlamp Switch - Ignition Switch - Multifunction Switch - Seat (driver) Switch - Seat (passenger) Switch - Windshield Wiper/Washer
