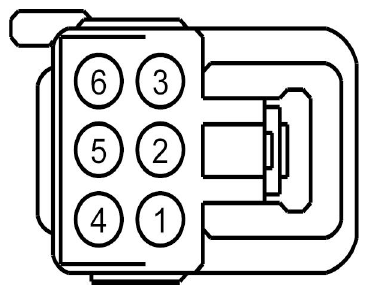

Heated Seat Module, Rear Connector End View (C3054B)

Fig 1: Identifying Heated Seat Module, Rear Connector (C3054B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBP18 (YE-RD)	16	FUSE - 18 OR CIRCUIT BREAKER
2	CBP35 (YE-GY)	20	FUSE - 35 OR CIRCUIT BREAKER
3	SBP18 (YE-RD)	16	FUSE - 18 OR CIRCUIT BREAKER
4	CHS39 (GN-BU)	18	CTRL MOD. - HOT/COLD SEAT # REAR LEFT CUSHION HEATER
5	GD143 (BK-VT)	16	GROUND - PILLAR B LEFT
6	CHS43 (GY-BU)	18	CTRL MOD. - HOT/COLD SEAT # REAR RIGHT CUSHION HEATER

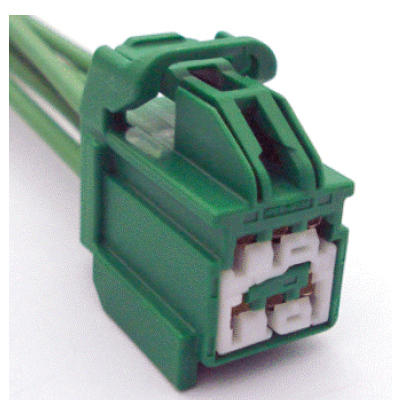

Available Pigtail Kits
Pigtail Kit Part Number WPT-1032	Service Part Number: 9U2Z-14S411-XA  Gauge: 14  Pin material: Silver  Cavities: 6  Vehicle Uses Module - Climate Control Seat Module - Heated Seat
