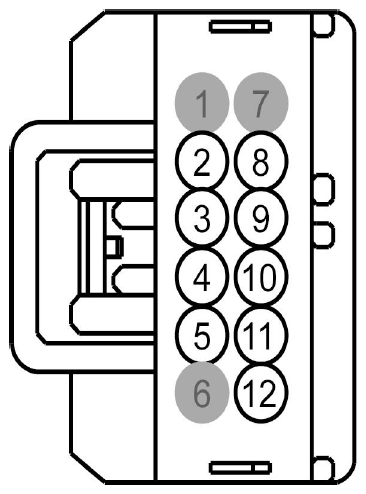

Heated Seat Module, Rear Connector End View (C3054A)

Fig 1: Identifying Heated Seat Module, Rear Connector (C3054A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	CHS46 (YE-GN)	22	CTRL MOD. - HOT/COLD SEAT # REAR LEFT SELECT HIGH
3	VHS42 (GN)	20	SENSOR - CUSHION TEMP REAR LEFT
4	CHS49 (VT)	22	CTRL MOD. - HOT/COLD SEAT # REAR LEFT INDICATOR LOW
5	CHS48 (YE)	22	CTRL MOD. - HOT/COLD SEAT # REAR LEFT INDICATOR HIGH
6	*	*	Not Used
7	*	*	Not Used
8	CHS50 (BU-GY)	22	CTRL MOD. - HOT/COLD SEAT # REAR RIGHT SELECT HIGH
9	VHS45 (GY-BN)	20	SENSOR - CUSHION TEMP REAR RIGHT
10	CHS53 (WH-BN)	22	CTRL MOD. - HOT/COLD SEAT # REAR RIGHT INDICATOR LOW
11	CHS52 (BU)	22	CTRL MOD. - HOT/COLD SEAT # REAR RIGHT INDICATOR HIGH
12	RHS41 (GN-BN)	20	CTRL MOD. - HEATED SEAT # REAR CUSHION TEMP

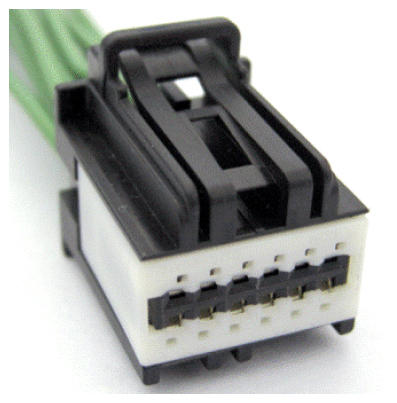

Available Pigtail Kits
Pigtail Kit Part Number WPT-930	Service Part Number: 9U2Z-14S411-DA  Gauge: 18  Pin material: Silver  Cavities: 12  Vehicle Uses Module - Climate Control Seat Module - Heated Seat (Rear)
