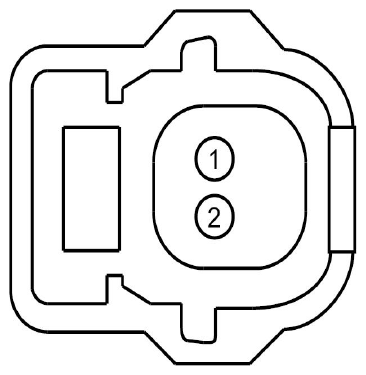

Front Impact Severity Sensor Connector End View (C177)

Fig 1: Identifying Front Impact Severity Sensor Connector (C177)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VR213 (VT-GN)	20	SENSOR - IMPACT FRONT 1ST OR LEFT
2	RR129 (YE-GY)	20	CTRL MOD. - SENSOR IMPACT FRONT 1ST OR LEFT

Available Pigtail Kits

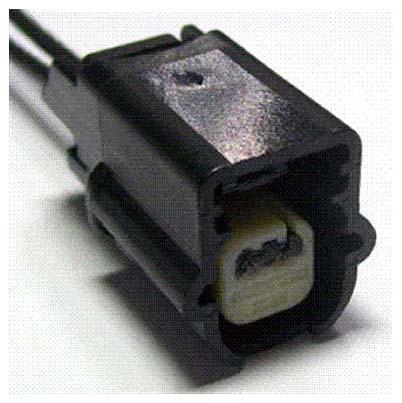

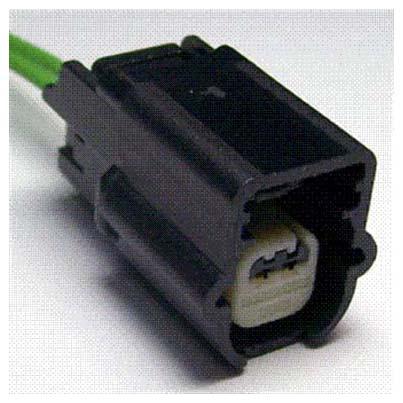

Pigtail Kit Part Number WPT-1314	Service Part Number: 8U2Z-14S411-AAC  Gauge: 20  Pin material: Silver  Cavities: 2  Vehicle Uses Sensor - Crash (Engine Compartment) Sensor - Seat Track Position Sensor - Side Impact Solenoid - Down Shift Solenoid - Torque Control Coupling Valve - Heated PCV Valve - Heater Core Shut Off Valve - Transmission Fluid Warmer
Pigtail Kit Part Number WPT-1216	Service Part Number: 8U2Z-14S411-AAB  Gauge: 18  Pin material: Silver  Cavities: 2  Vehicle Uses Sensor - Crash (Engine Compartment) Sensor - Seat Track Position Sensor - Side Impact Solenoid - Down Shift Valve - Heated PCV
Pigtail Kit Part Number WPT-1090	Service Part Number: AU2Z-14S411-YA  Gauge: 18  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Sensor - Crash (Engine Compartment) Sensor - Side Impact
