Four-Wheel Drive Switch Connector End View (C2071)

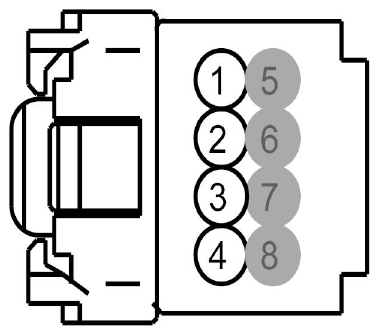

Fig 1: Identifying Four-Wheel Drive Switch Connector (C2071)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VLN18 (BU-WH)	18	DIMMER - IP/SWITCH ILLUMINATION
2	RCF13 (WH-BN)	20	SWITCH - FOUR WHEEL DRIVE MODE COMMAND (4WDMCS)
3	CCF13 (WH-BU)	20	SWITCH - FOUR WHEEL DRIVE MODE COMMAND (4WDMCS)
4	GD138 (BK-WH)	20	GROUND - PILLAR A RIGHT
5	*	*	Not Used
6	*	*	Not Used
7	*	*	Not Used
8	*	*	Not Used

Available Pigtail Kits

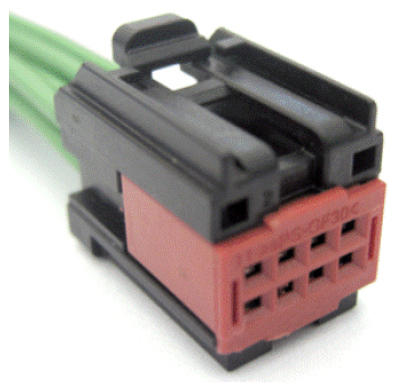

Pigtail Kit Part Number WPT-950	Service Part Number: 3U2Z-14S411-CTB  Gauge: 18  Pin material: Silver  Cavities: 8  Vehicle Uses Switch - 4x4 Control Switch - Adjustable Pedal Switch - Deck Lid/Lift Gate Ajar

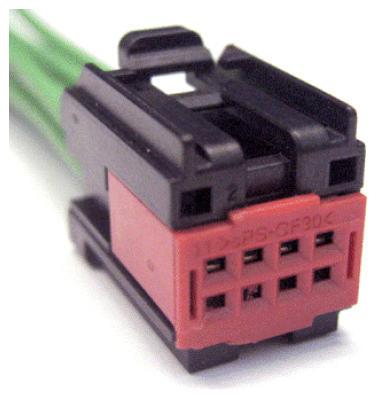

Pigtail Kit Part Number WPT-1215	Service Part Number: 3U2Z-14S411-CTC  Gauge: 18  Pin material: Tin  Cavities: 8  Vehicle Uses Switch - 4x4 Control Switch - Adjustable Pedal Switch - Ambient Lighting Color Switch - Deck Lid/Hatch Release Switch - Deck Lid/Lift Gate Ajar Switch - Dimmer

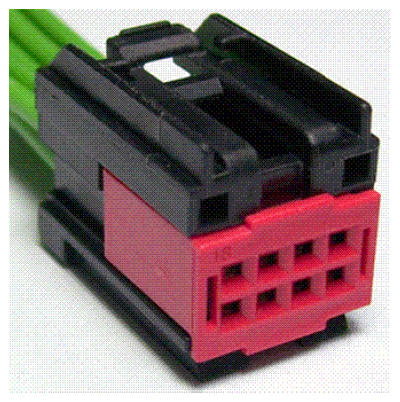

Pigtail Kit Part Number WPT-354	Service Part Number: 3U2Z-14S411-CTA  Gauge: 18  Pin material: Silver  Cavities: 8  Vehicle Uses Switch - 4x4 Control Switch - Dimmer
