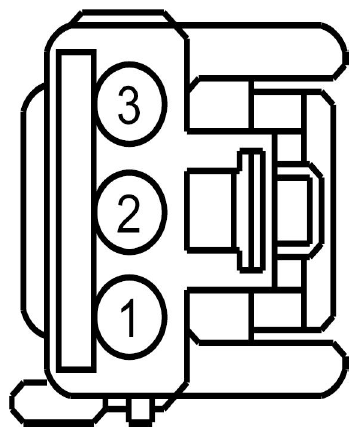

Brake Shift Interlock Connector End View (C2008)

Fig 1: Identifying Brake Shift Interlock Connector (C2008)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD138 (BK-WH)	20	GROUND - PILLAR A RIGHT
2	CET53 (BU-OG)	20	CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK
3	CDC37 (GY-VT)	20	SWITCH - START INTERLOCK NEUTRAL SAFETY

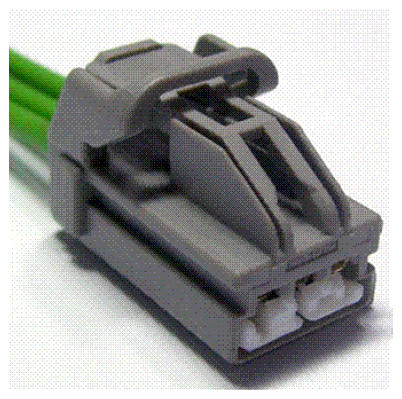

Available Pigtail Kits
Pigtail Kit Part Number WPT-1147	Service Part Number: 3U2Z-14S411-BHAB  Gauge: 16  Pin material: Silver  Cavities: 3  Vehicle Uses Motor - Rear Window Wiper Motor - Seat Recline Refrigerator
