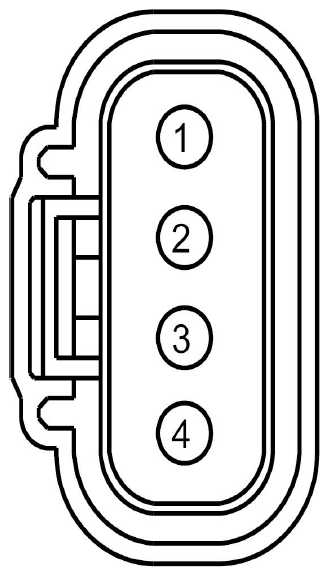

Blower Motor Speed Control Connector End View (C297)

Fig 1: Identifying Blower Motor Speed Control Connector (C297)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD138 (BK-WH)	12	GROUND - PILLAR A RIGHT
2	VH301 (YE-BU)	12	CTRL MOD. - BLOWER VARIABLE SPEED # BLOWER MOTOR
3	VH101 (WH-VT)	20	CTRL MOD. - CLIMATE # BLOWER MOTOR CONTROL
4	CH402 (YE-GN)	12	RELAY - FRONT BLOWER

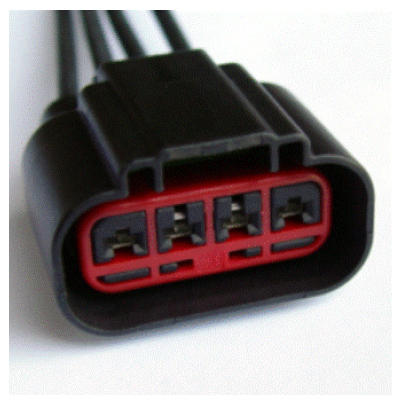

Available Pigtail Kits
Pigtail Kit Part Number WPT-688	Service Part Number: 3U2Z-14S411-ZEA  Gauge: 12  Pin material: Tin  Cavities: 4  Vehicle Uses Module - Heated Seat Motor - Power Window - RH - Rear Motor - Radio Power Antenna Motor - Rear Quarter Flip Window Speaker - Door (rear)
