Component Location Views

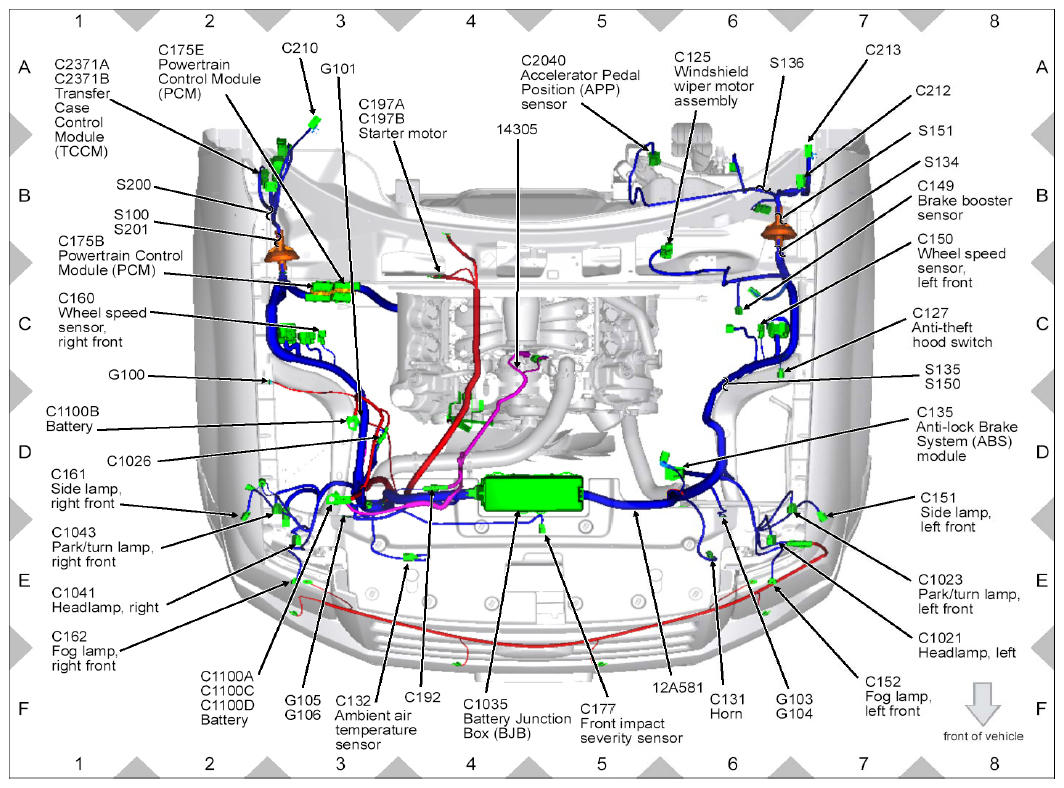

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 4)

G08734822

Courtesy of FORD MOTOR CO.

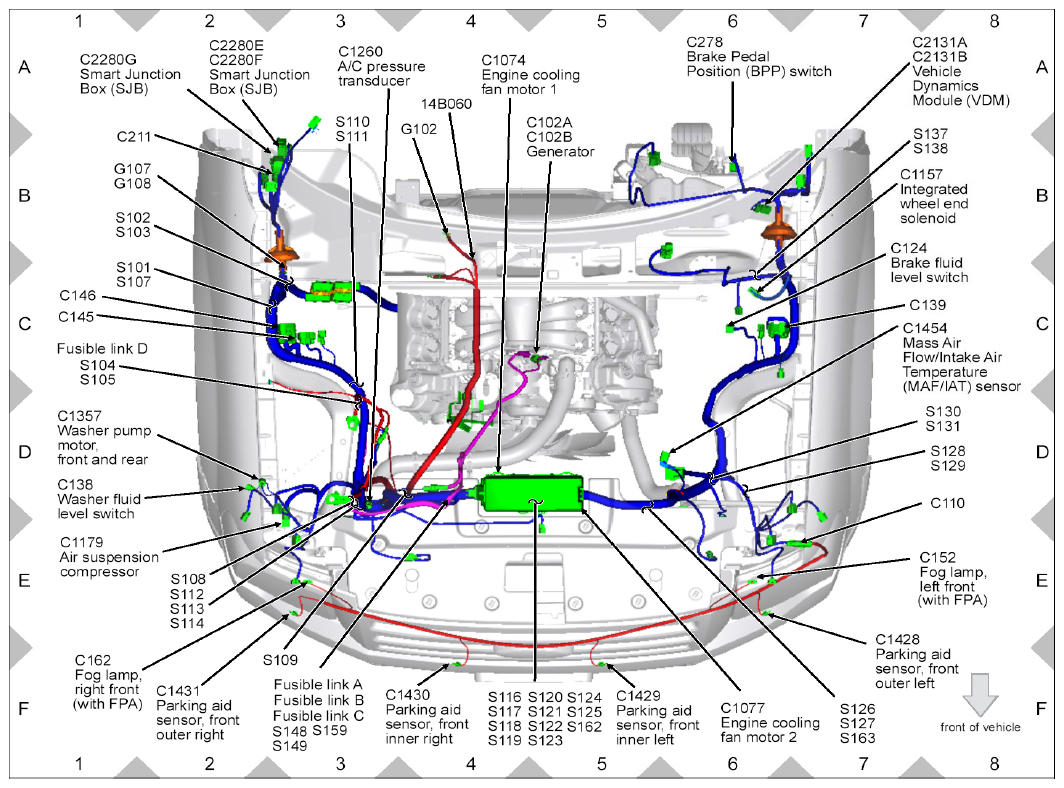

Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 4)

G08734823

Courtesy of FORD MOTOR CO.

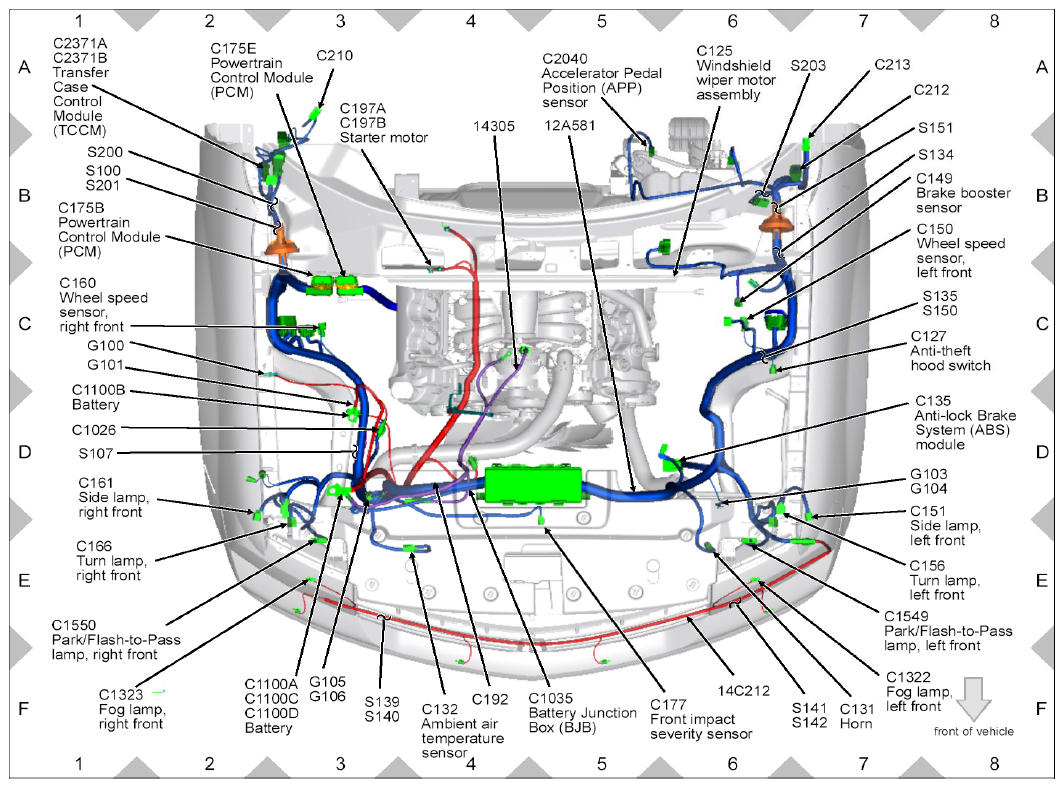

Fig 3: Engine Compartment Wiring Harness Connectors Location (3 Of 4)

G08734824

Courtesy of FORD MOTOR CO.

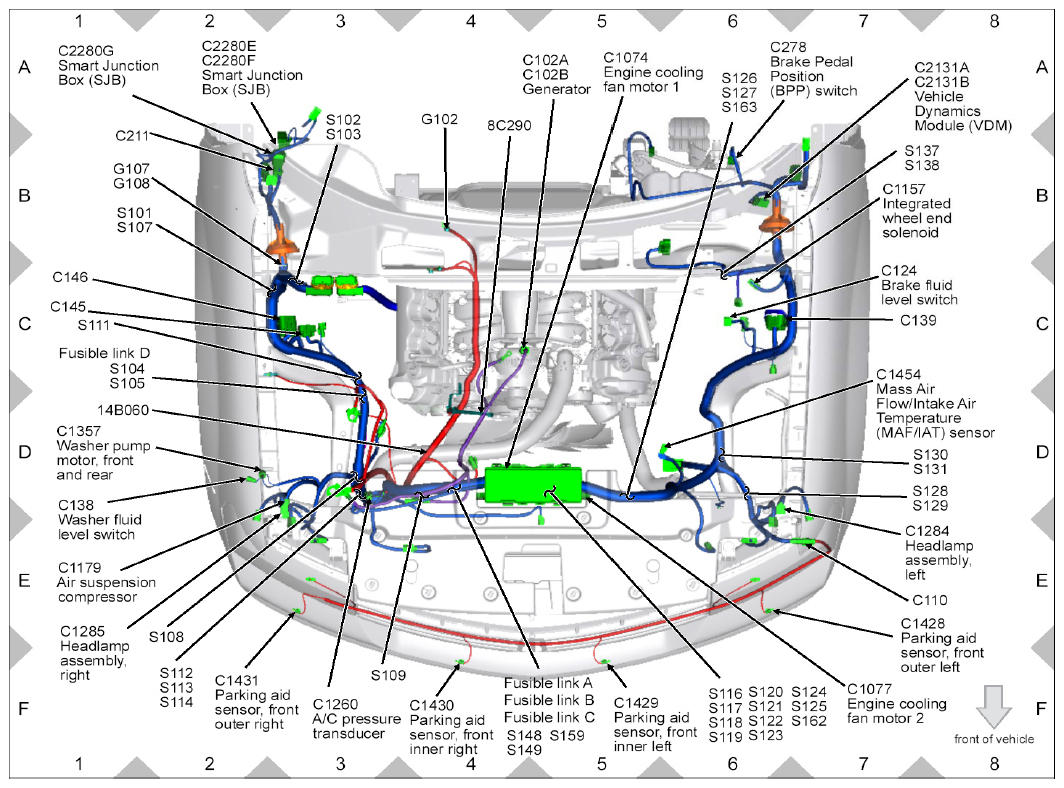

Fig 4: Engine Compartment Wiring Harness Connectors Location (4 Of 4)

G08734825

Courtesy of FORD MOTOR CO.

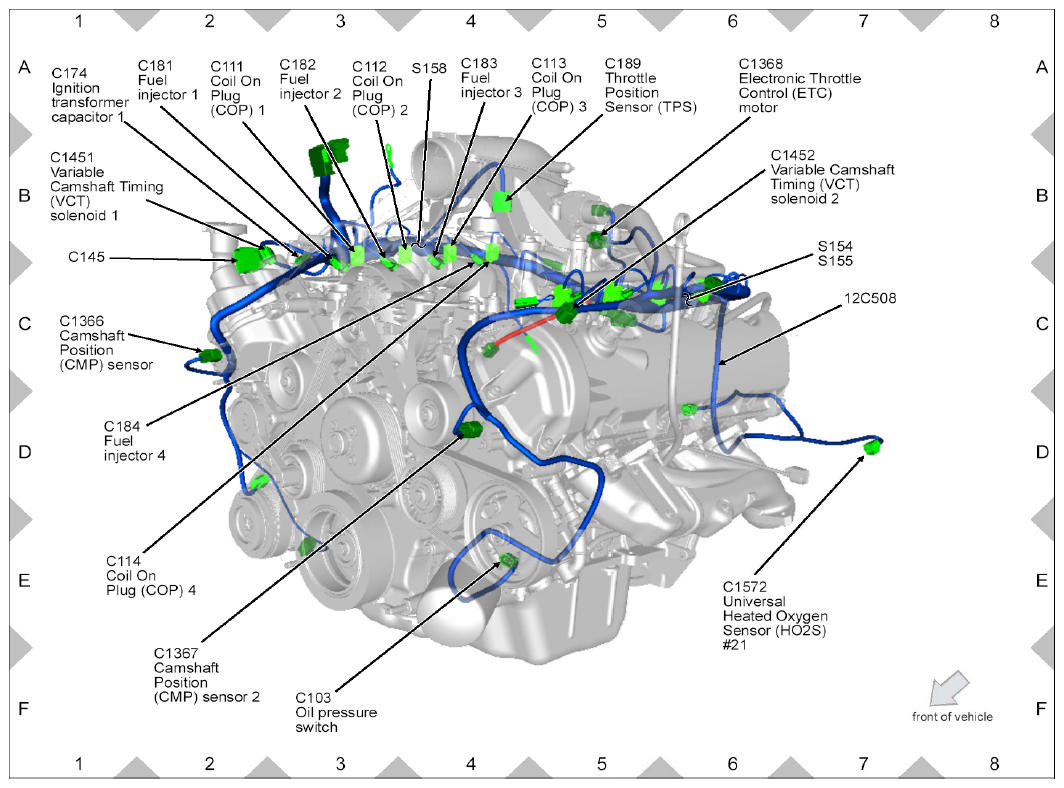

Fig 5: Engine Wiring Harness Connectors Location (1 Of 2)

G08734826

Courtesy of FORD MOTOR CO.

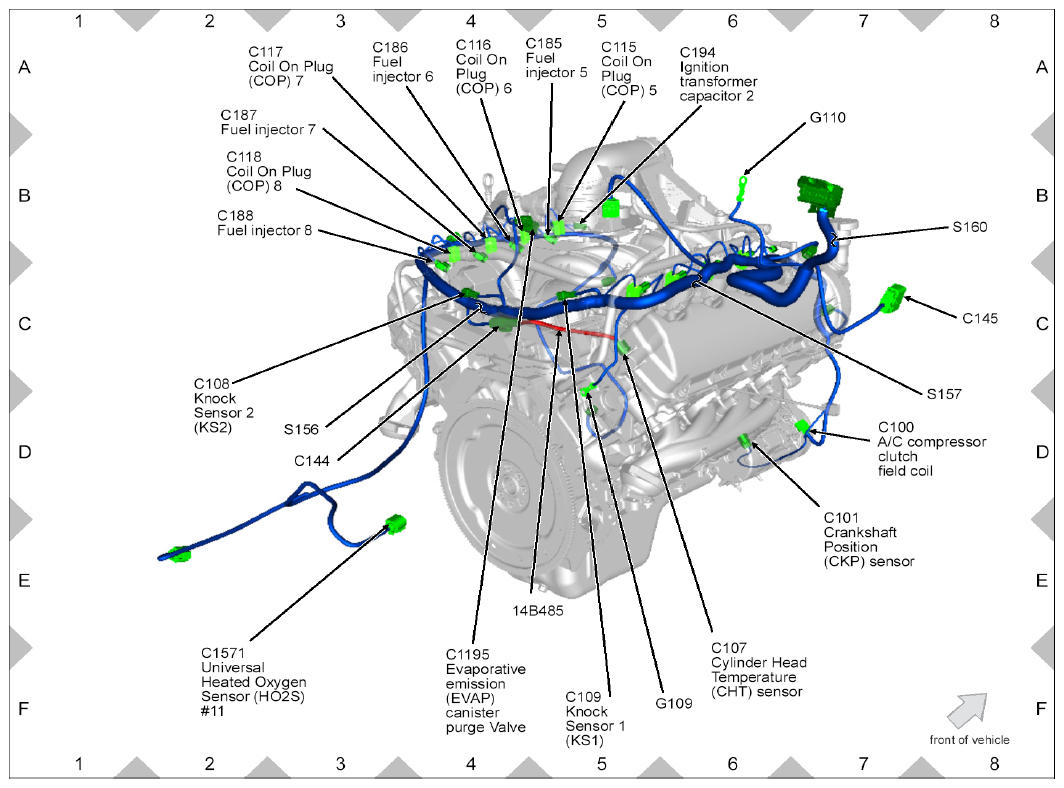

Fig 6: Engine Wiring Harness Connectors Location (2 Of 2)

G08734827

Courtesy of FORD MOTOR CO.

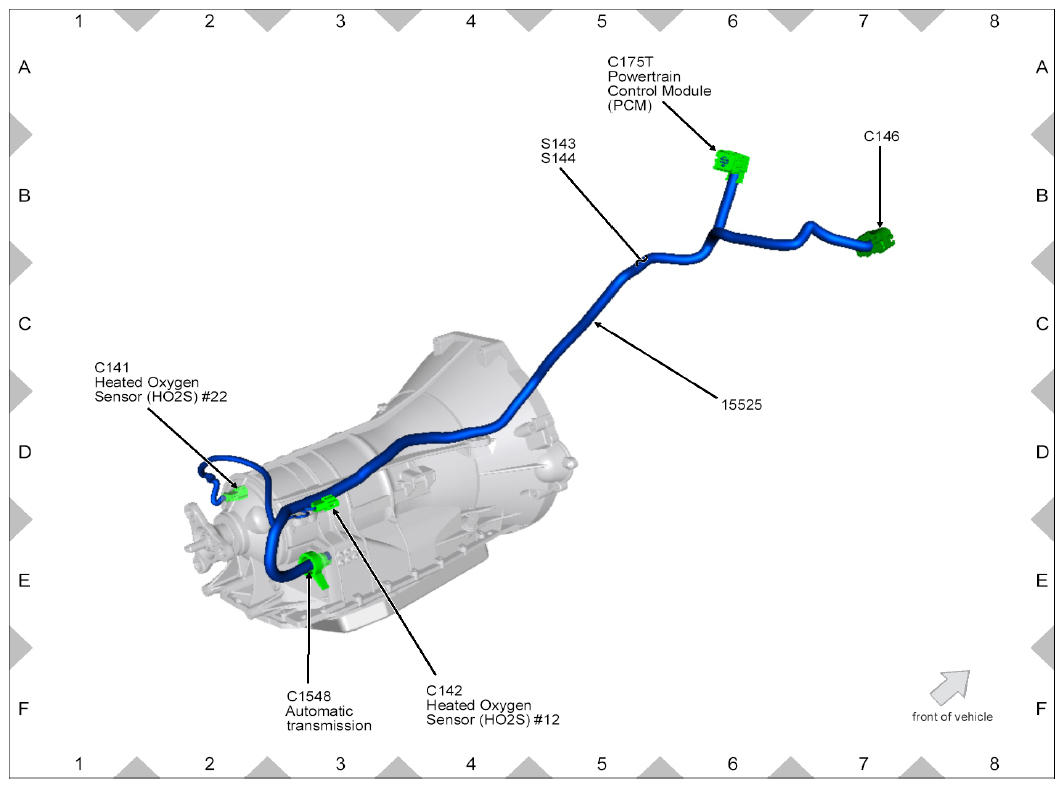

Fig 7: Transmission Wiring Harness Connectors Location (1 Of 2)

G08734828

Courtesy of FORD MOTOR CO.

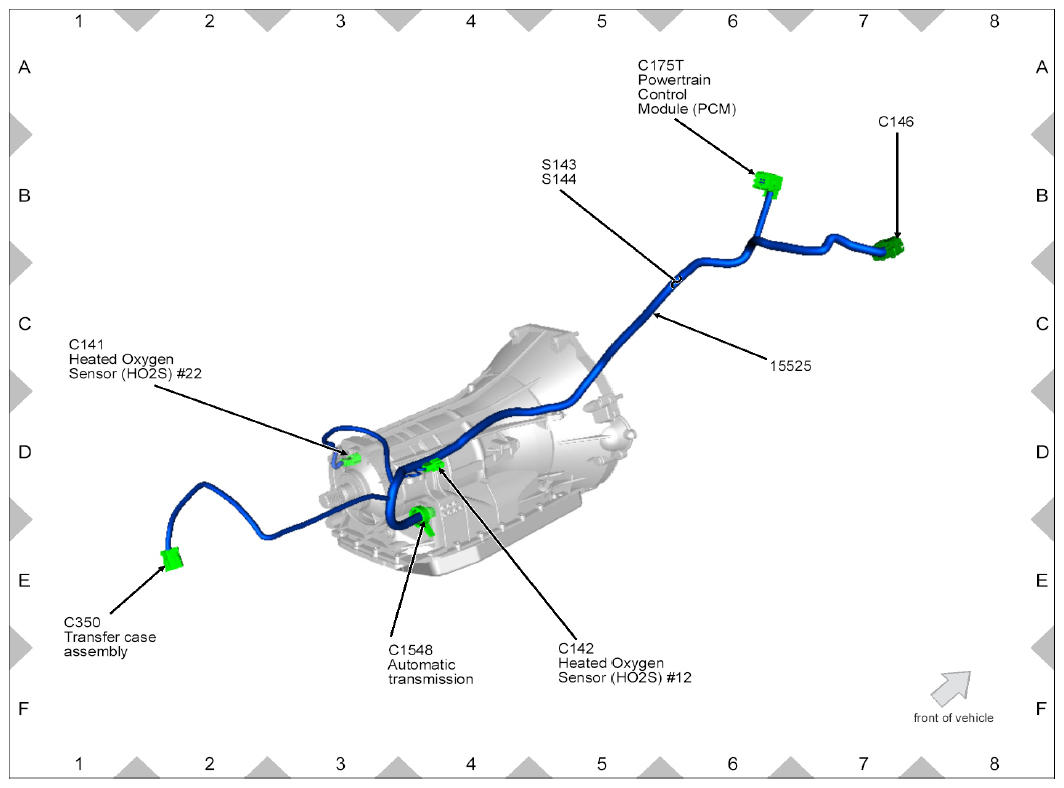

Fig 8: Transmission Wiring Harness Connectors Location (2 Of 2)

G08734829

Courtesy of FORD MOTOR CO.

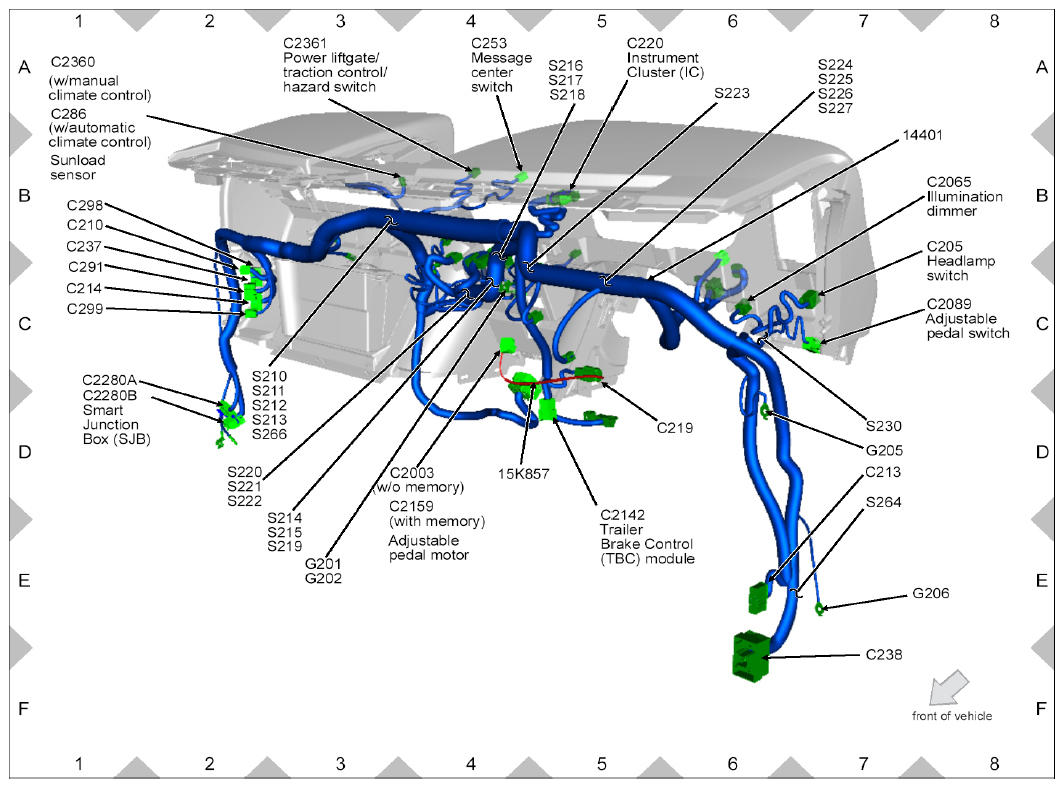

Fig 9: Dash Board Wiring Harness Connectors Location - Back Side

G08734830

Courtesy of FORD MOTOR CO.

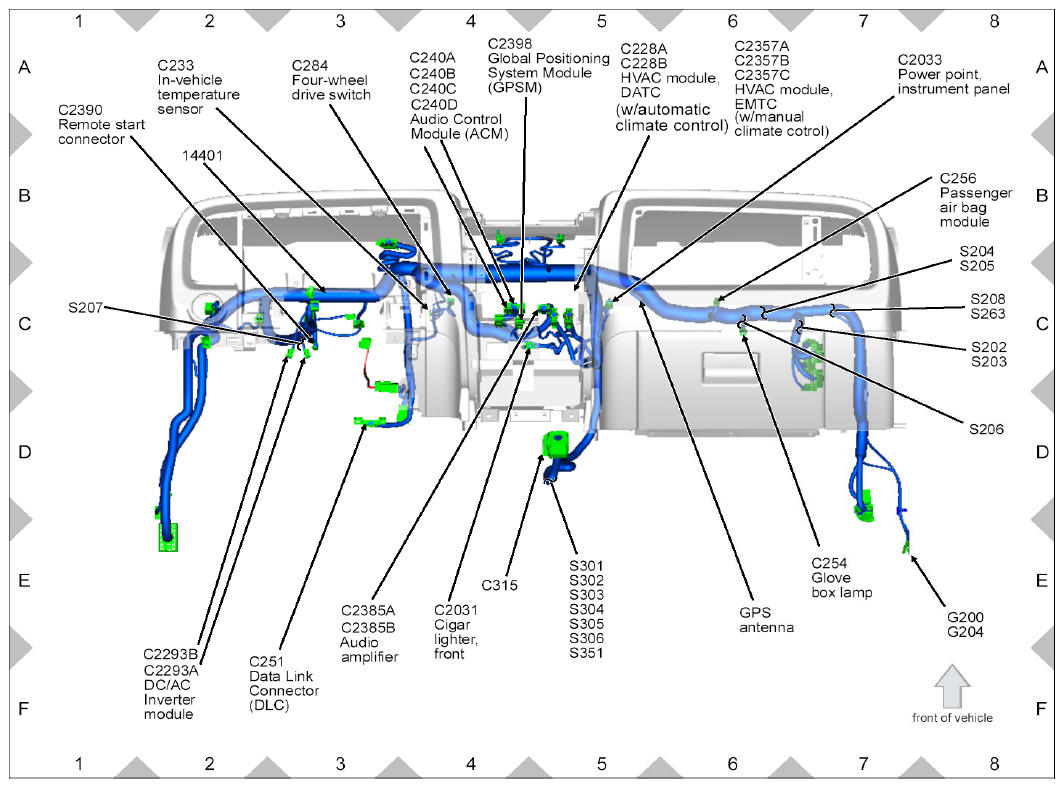

Fig 10: Dash Board Wiring Harness Connectors Location - Front Side

G08734831

Courtesy of FORD MOTOR CO.

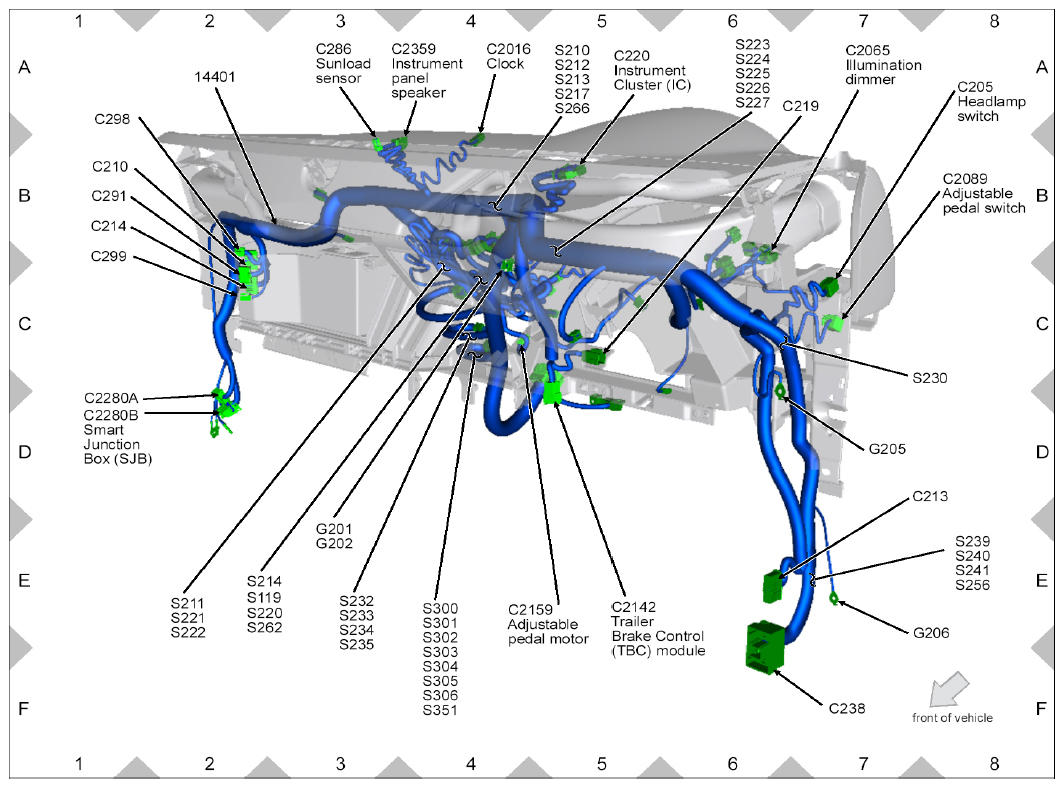

Fig 11: Dash Board Wiring Harness Connectors Location - Back Side

G08734832

Courtesy of FORD MOTOR CO.

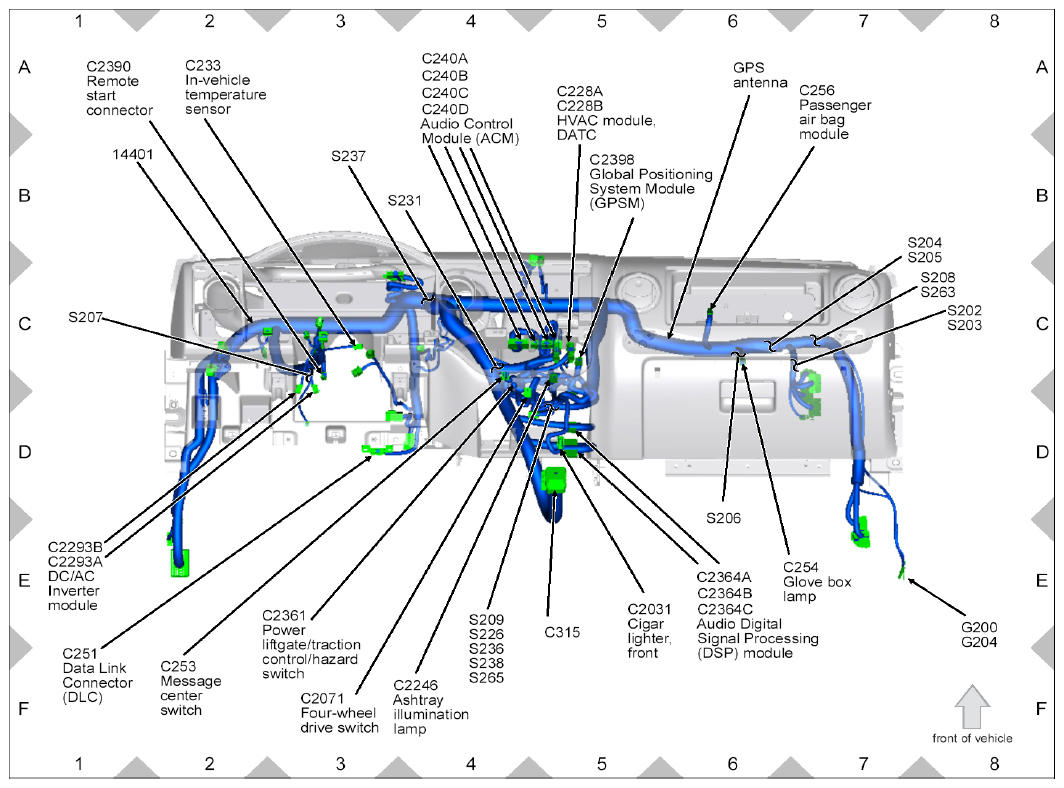

Fig 12: Dash Board Wiring Harness Connectors Location - Front Side

G08734833

Courtesy of FORD MOTOR CO.

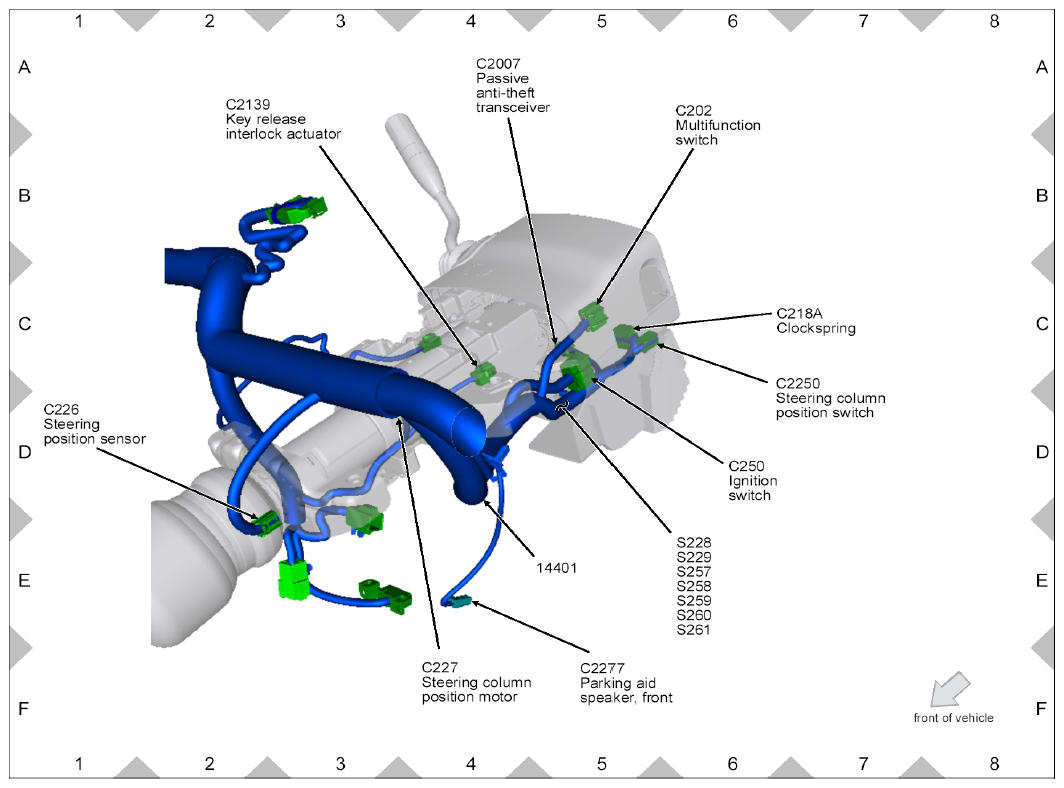

Fig 13: Steering Assembly Wiring Harness Connectors Location (1 Of 2)

G08734834

Courtesy of FORD MOTOR CO.

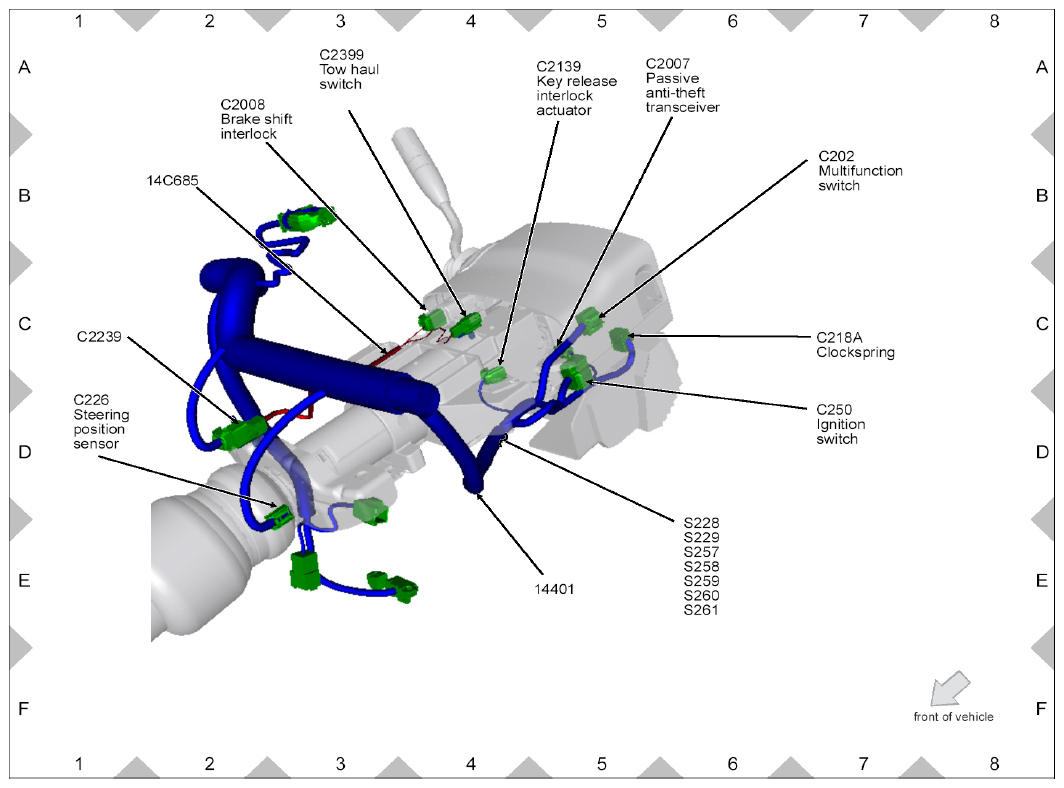

Fig 14: Steering Assembly Wiring Harness Connectors Location (2 Of 2)

G08734835

Courtesy of FORD MOTOR CO.

Fig 15: Steering Wheel Wiring Harness Connectors Location (1 Of 2)

G08734836

Courtesy of FORD MOTOR CO.

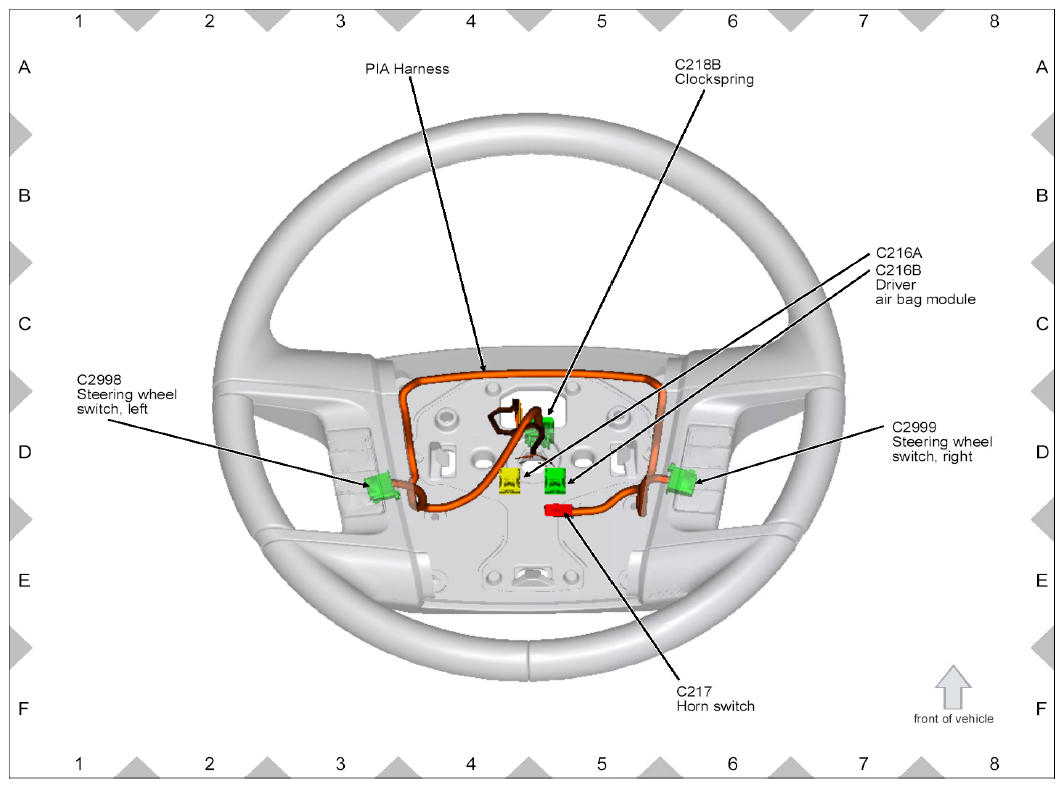

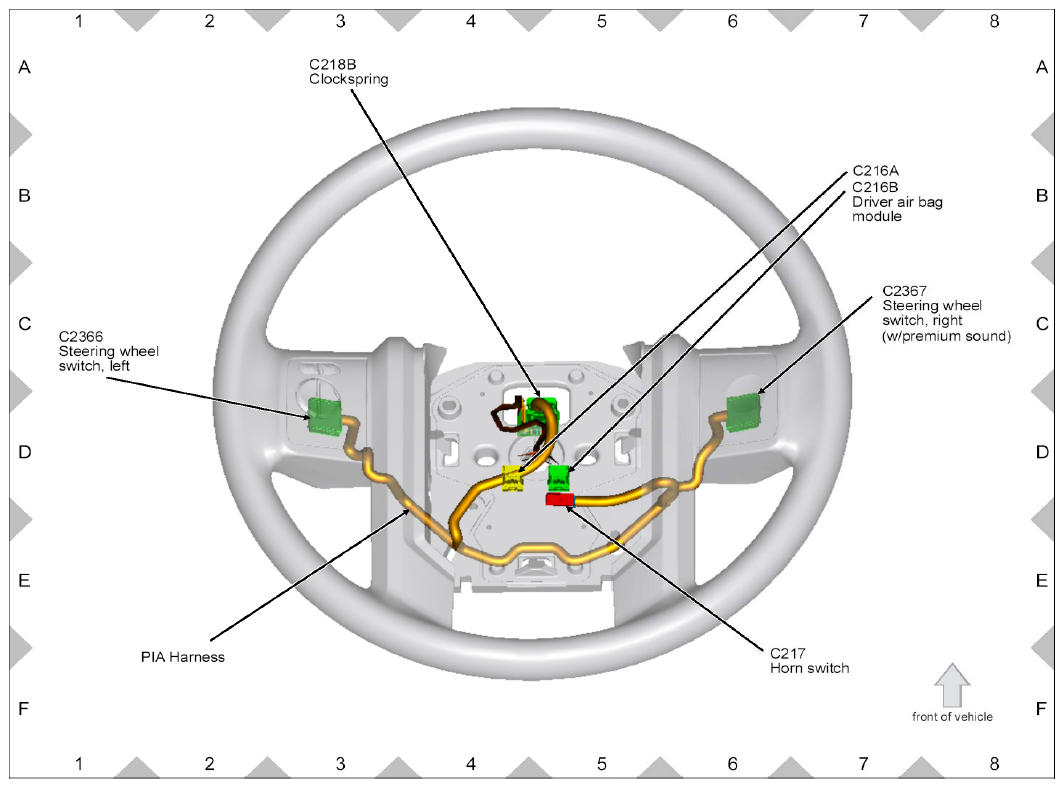

Fig 16: Steering Wheel Wiring Harness Connectors Location (2 Of 2)

G08734837

Courtesy of FORD MOTOR CO.

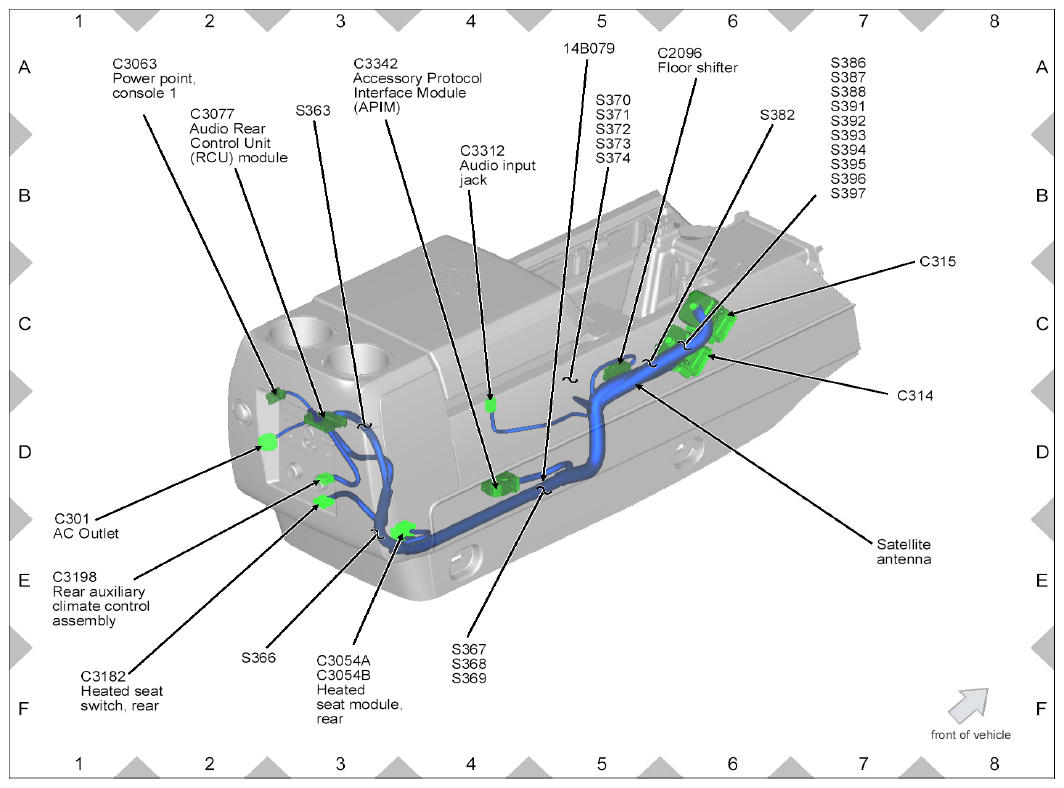

Fig 17: Center Console Wiring Harness Connectors Location (1 Of 2)

G08734838

Courtesy of FORD MOTOR CO.

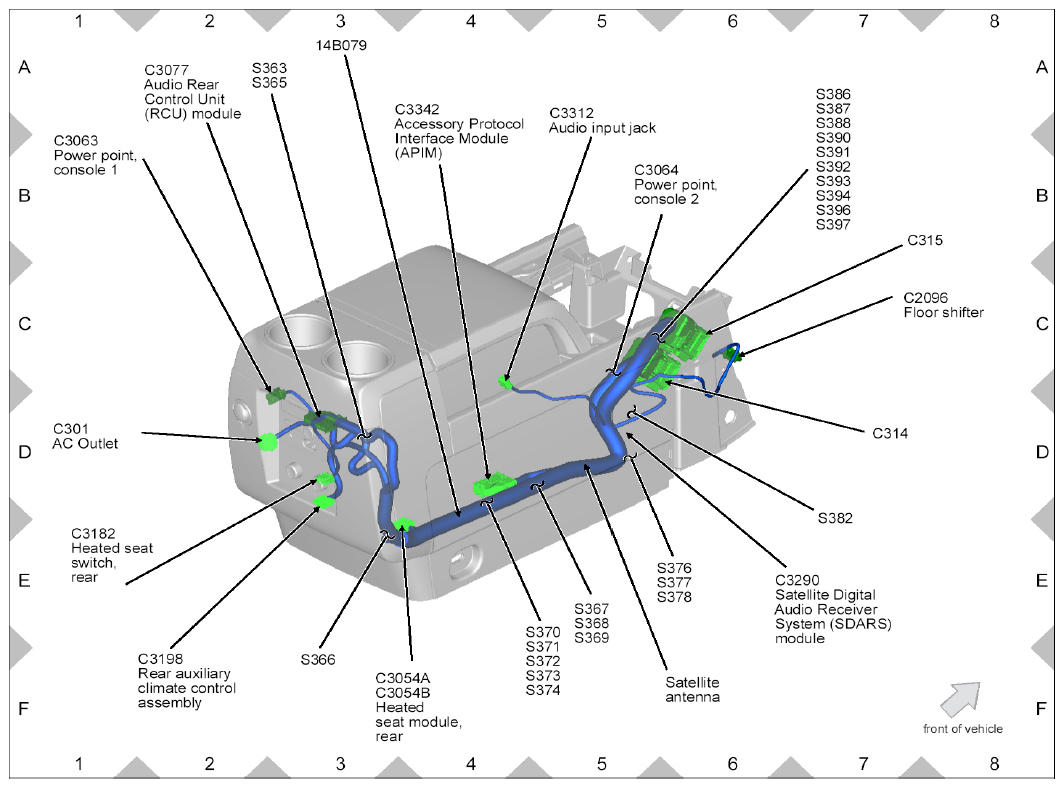

Fig 18: Center Console Wiring Harness Connectors Location (2 Of 2)

G08734839

Courtesy of FORD MOTOR CO.

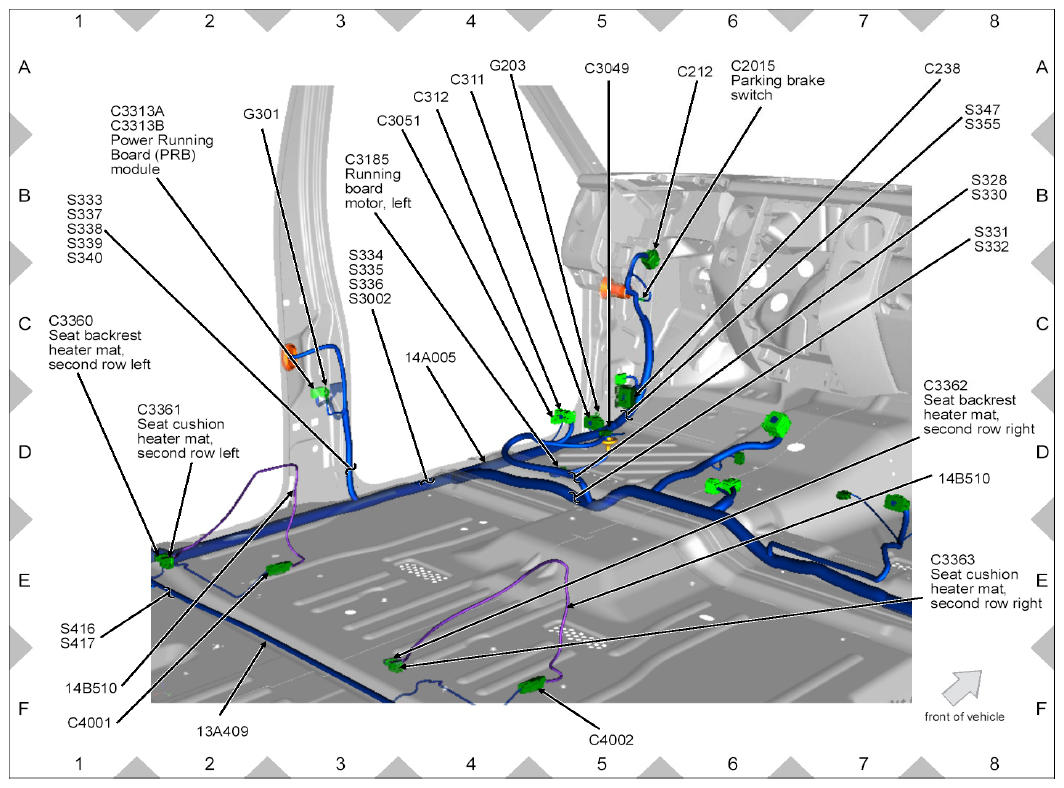

Fig 19: Floor Wiring Harness Connectors Location LH

G08734840

Courtesy of FORD MOTOR CO.

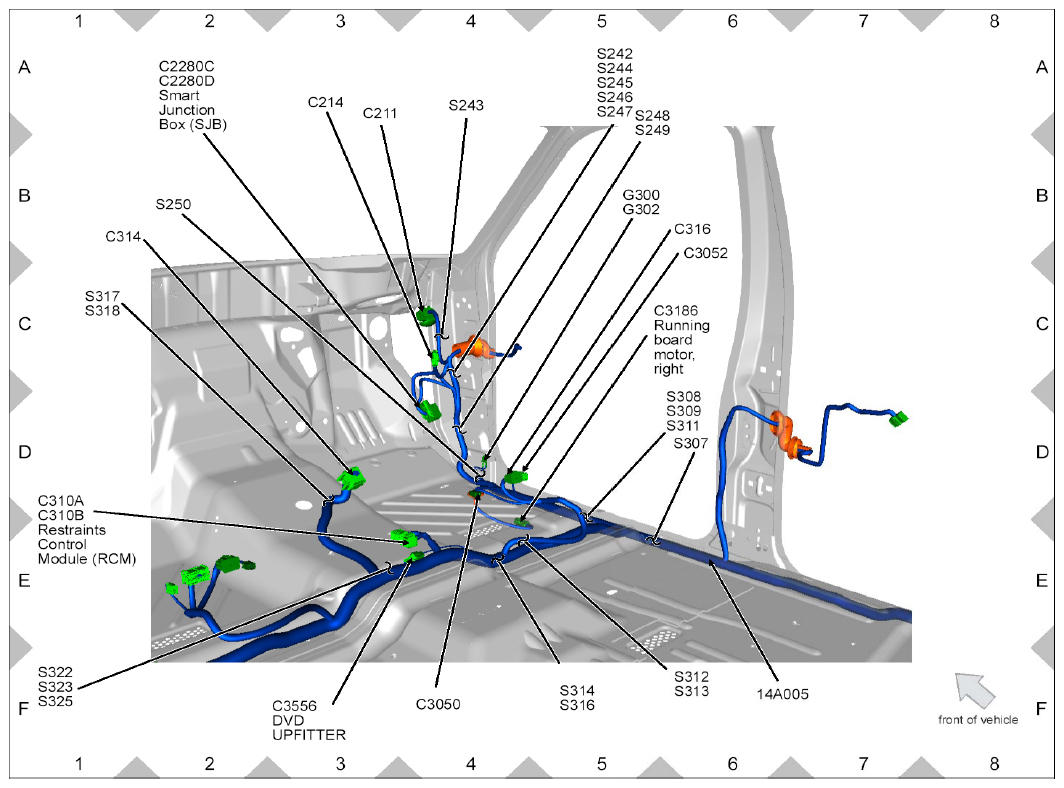

Fig 20: Floor Wiring Harness Connectors Location RH

G08734841

Courtesy of FORD MOTOR CO.

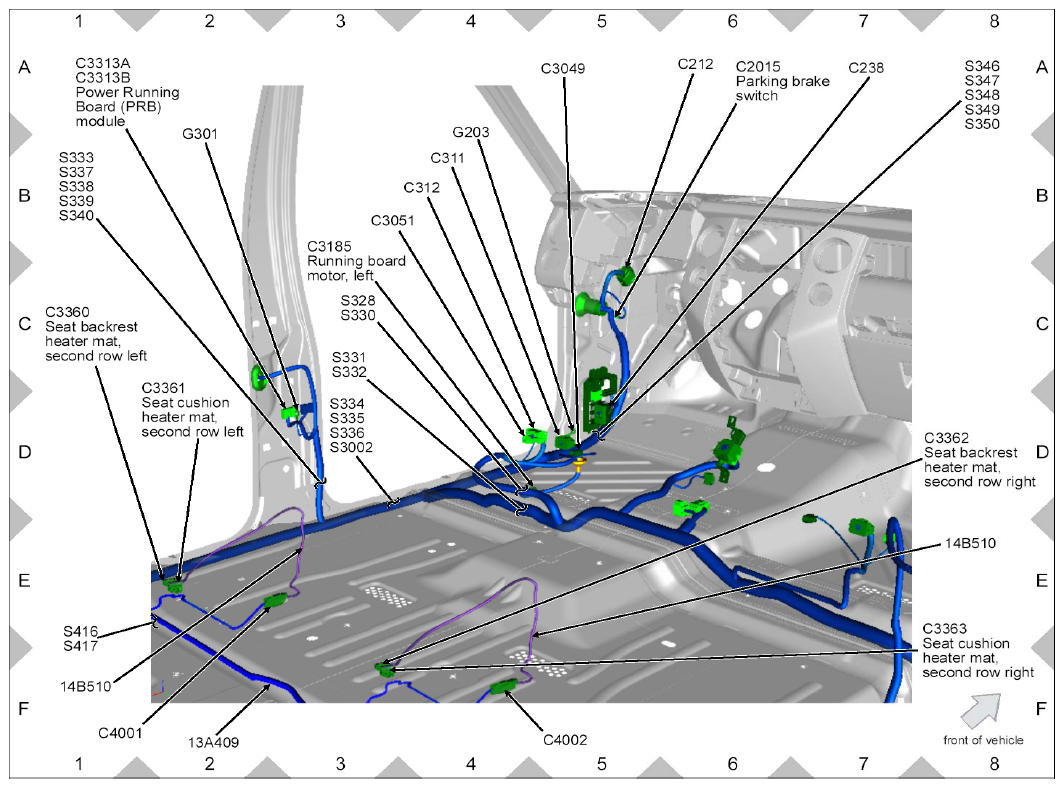

Fig 21: Floor Wiring Harness Connectors Location LH

G08734842

Courtesy of FORD MOTOR CO.

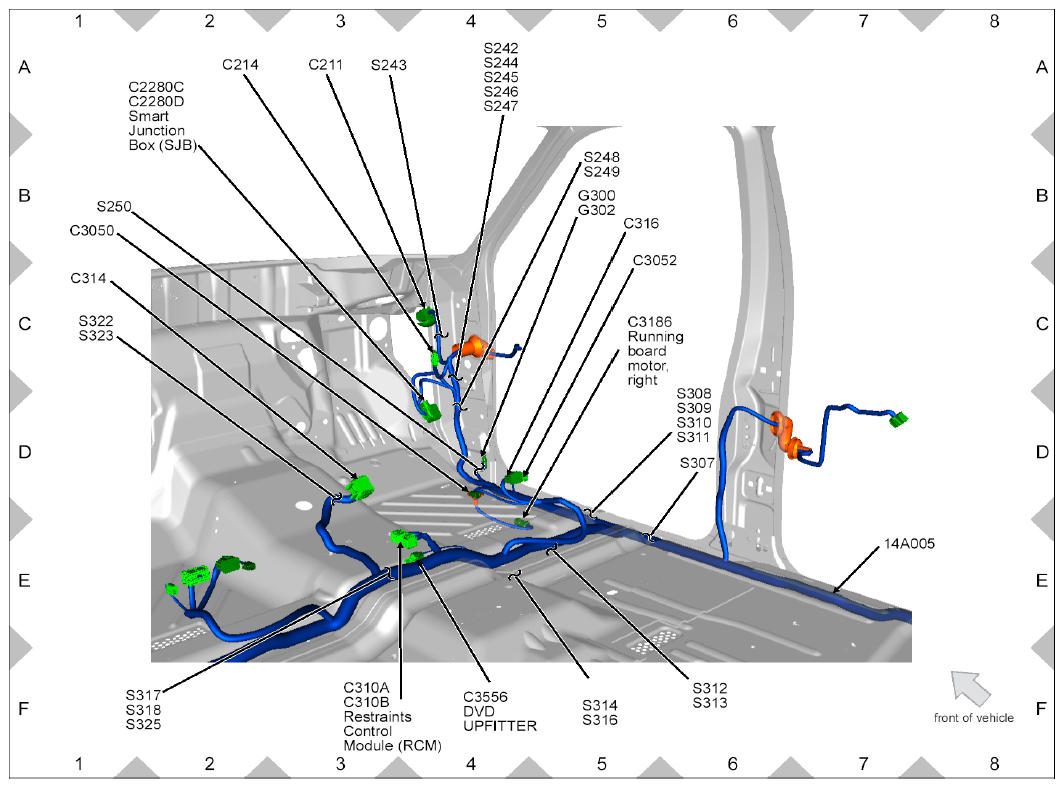

Fig 22: Floor Wiring Harness Connectors Location RH

G08734843

Courtesy of FORD MOTOR CO.

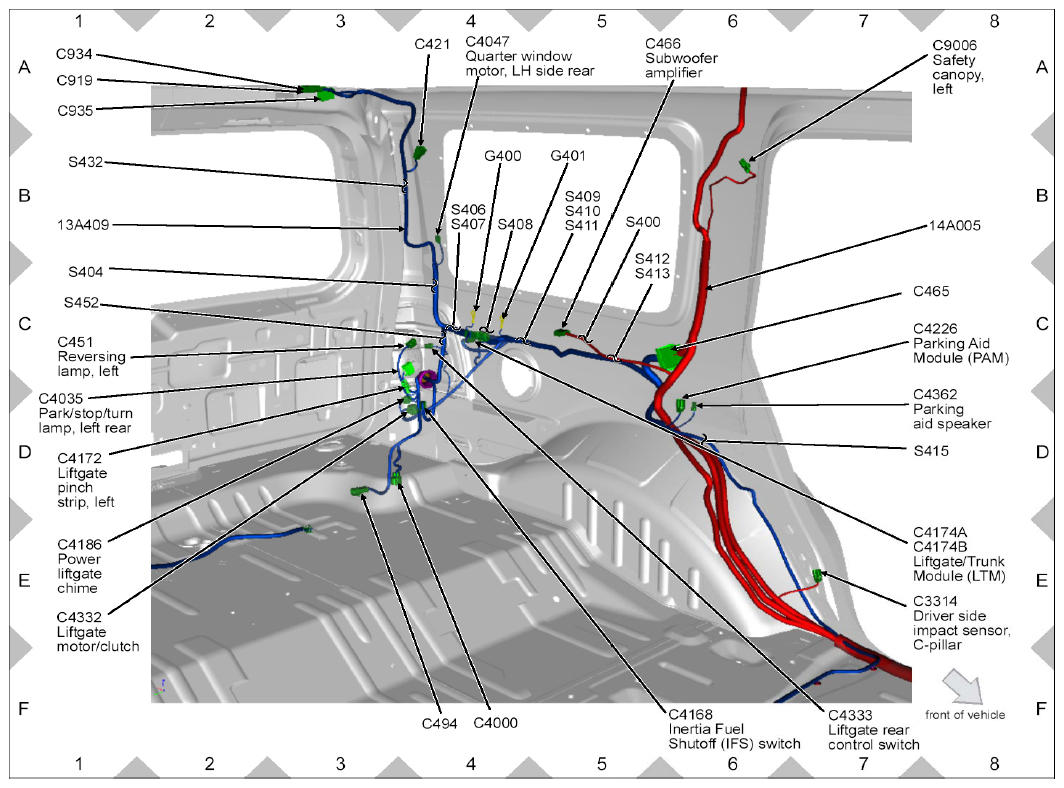

Fig 23: Floor Wiring Harness Connectors Location LH - Rear

G08734844

Courtesy of FORD MOTOR CO.

Fig 24: Floor Wiring Harness Connectors Location RH - Rear

G08734845

Courtesy of FORD MOTOR CO.

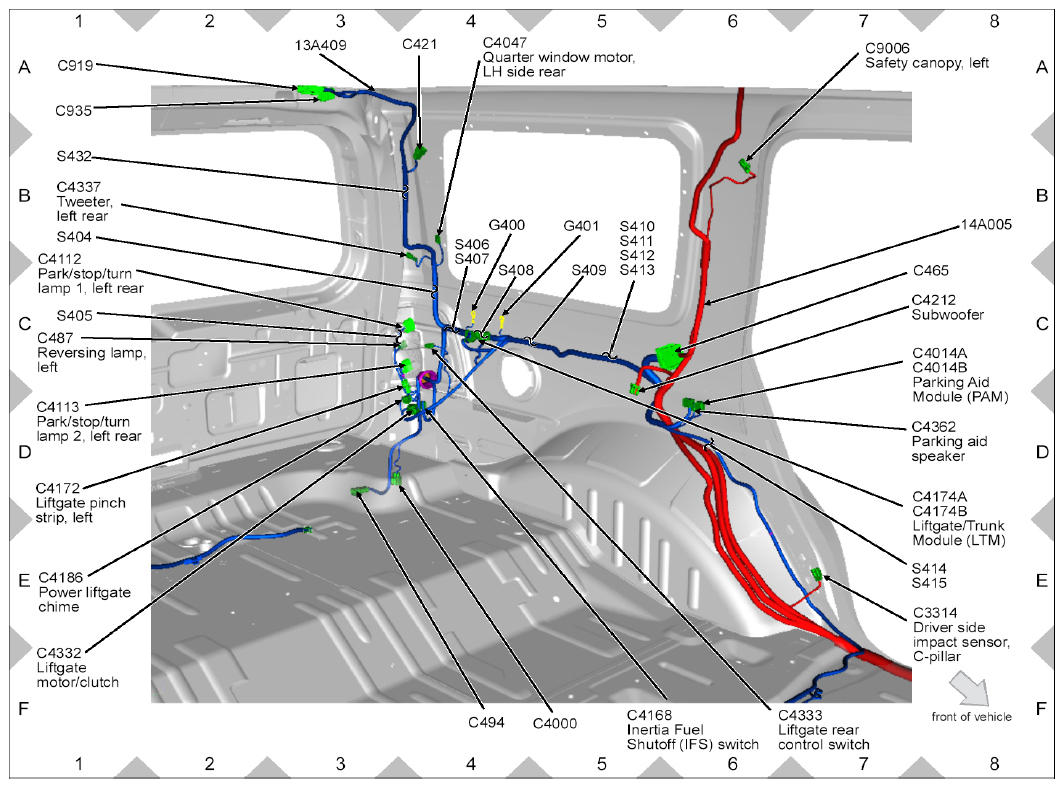

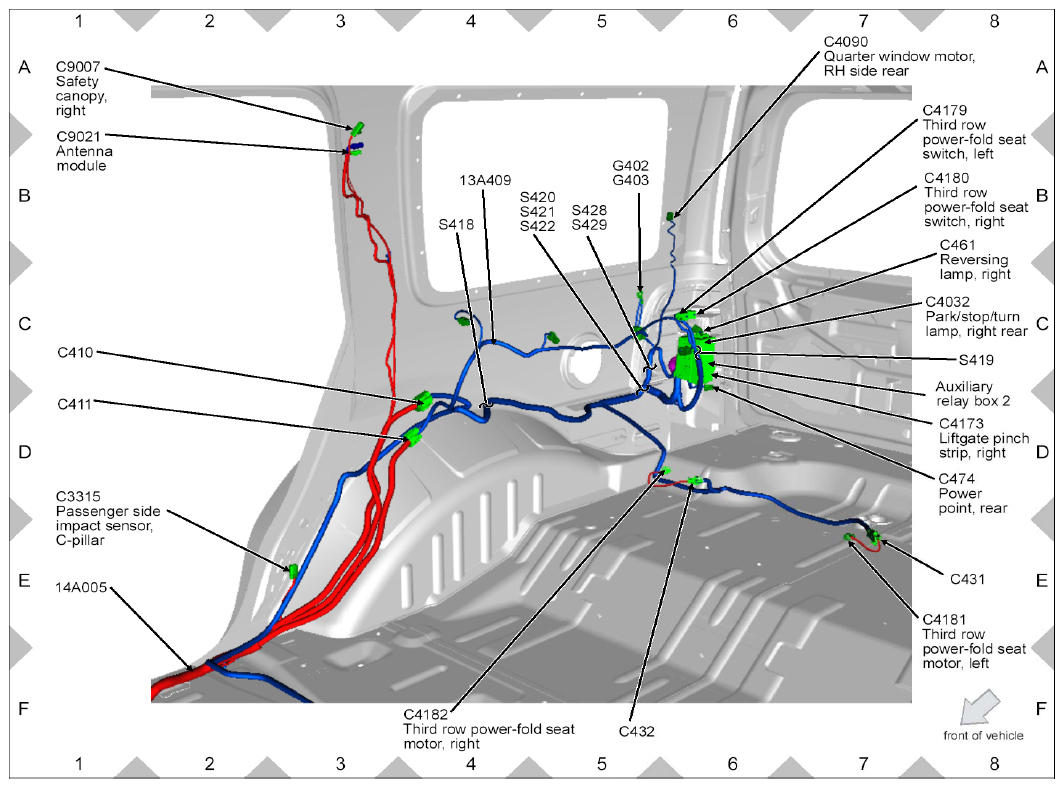

Fig 25: Floor Wiring Harness Connectors Location LH - Rear

G08734846

Courtesy of FORD MOTOR CO.

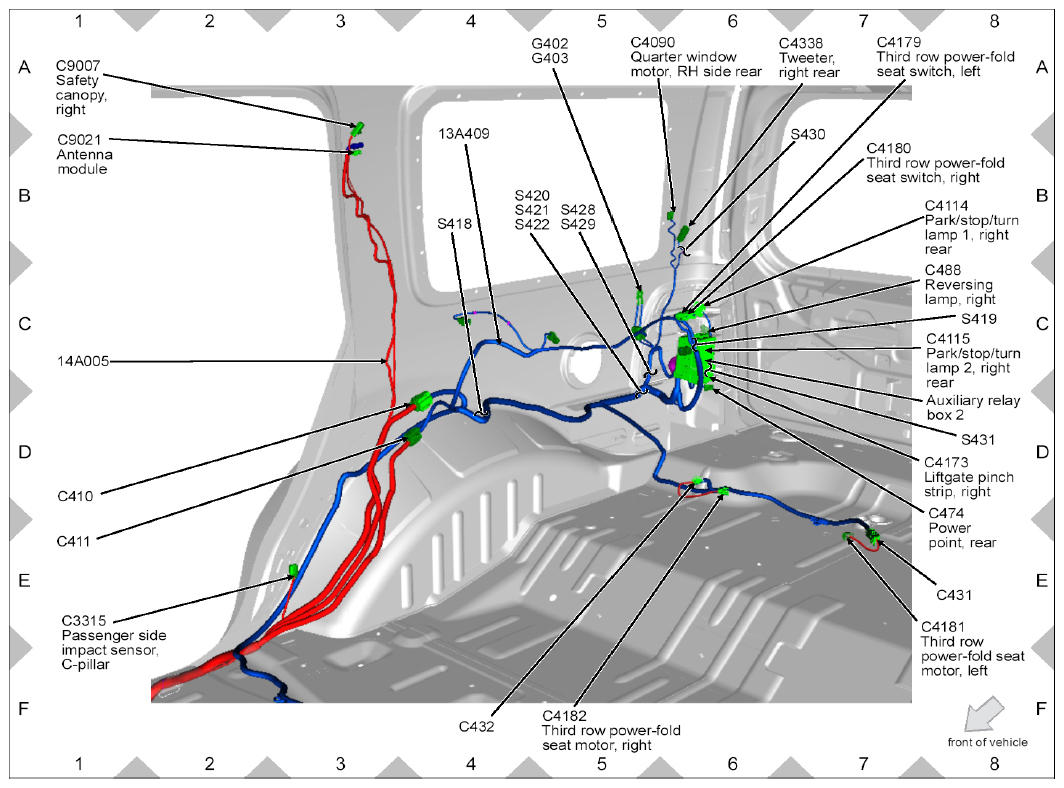

Fig 26: Floor Wiring Harness Connectors Location RH - Rear

G08734847

Courtesy of FORD MOTOR CO.

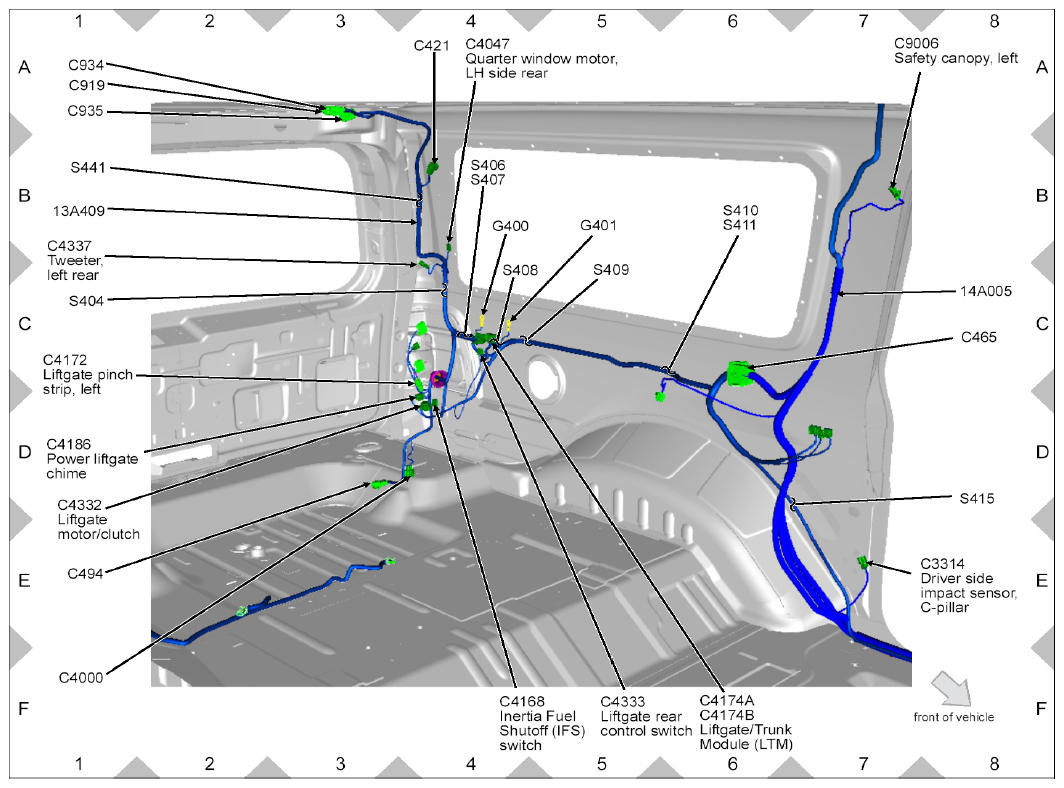

Fig 27: Floor Wiring Harness Connectors Location LH - Rear

G08734848

Courtesy of FORD MOTOR CO.

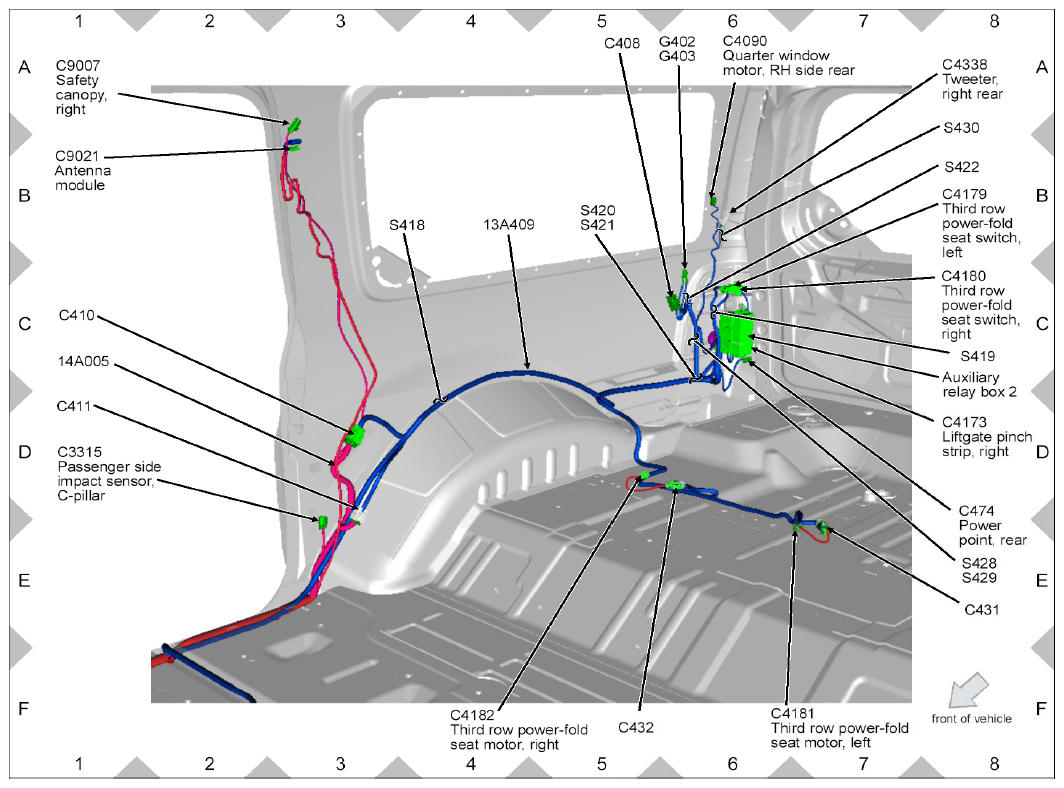

Fig 28: Floor Wiring Harness Connectors Location RH - Rear

G08734849

Courtesy of FORD MOTOR CO.

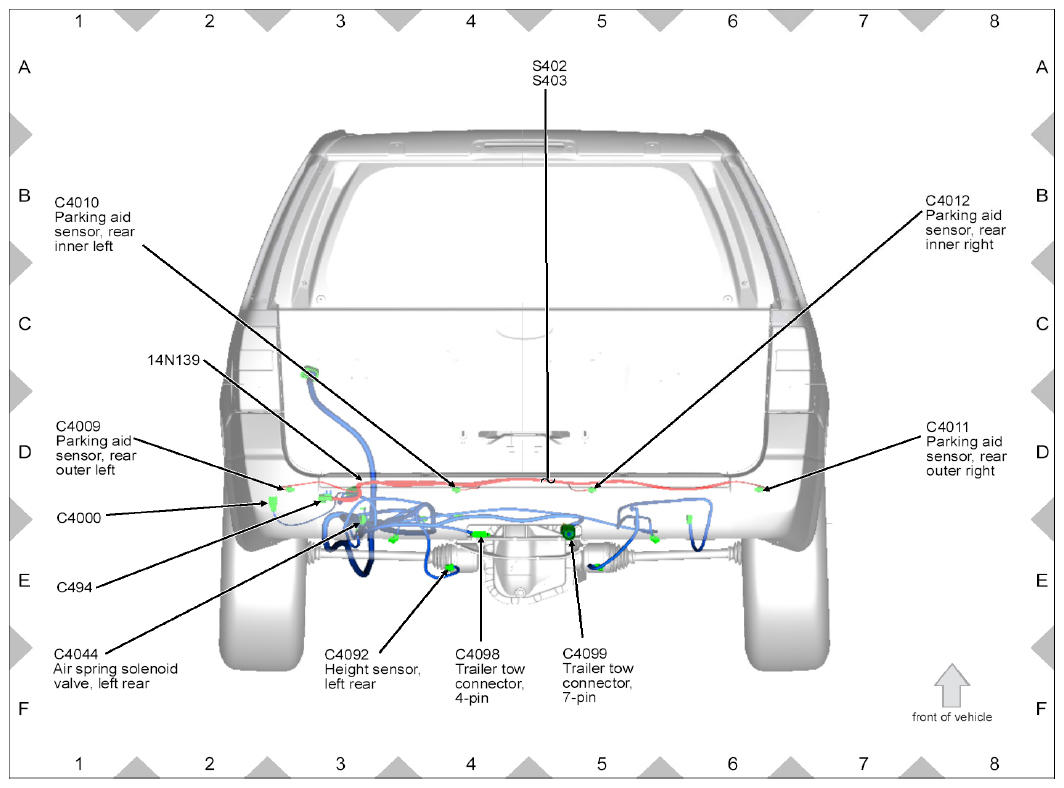

Fig 29: Trailer Wiring Harness Connectors Location

G08734850

Courtesy of FORD MOTOR CO.

Fig 30: Vehicle Wiring Harness Connectors Location - Rear (1 Of 2)

G08734851

Courtesy of FORD MOTOR CO.

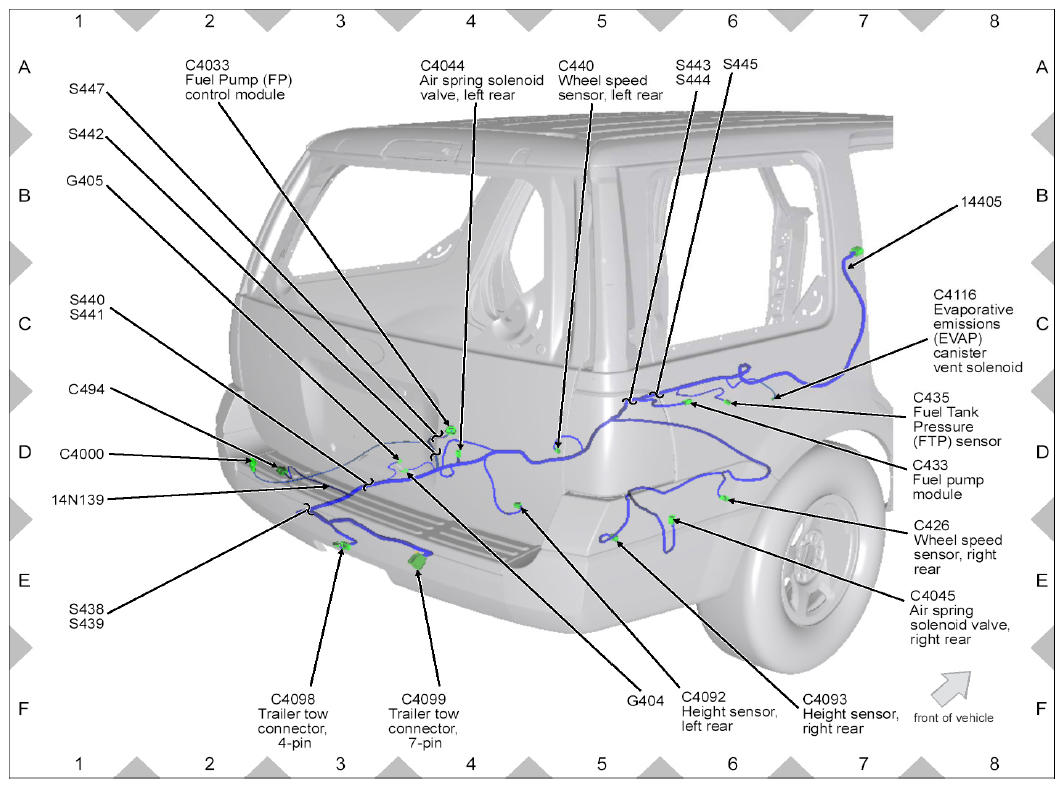

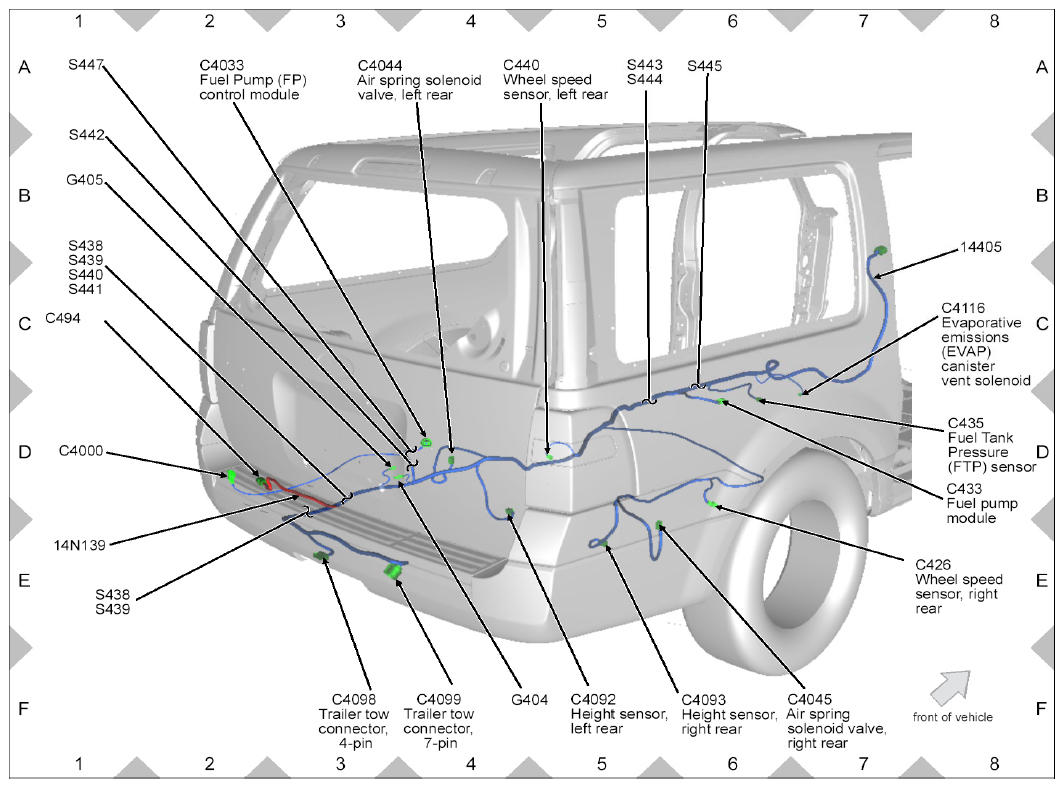

Fig 31: Vehicle Wiring Harness Connectors Location - Rear (2 Of 2)

G08734852

Courtesy of FORD MOTOR CO.

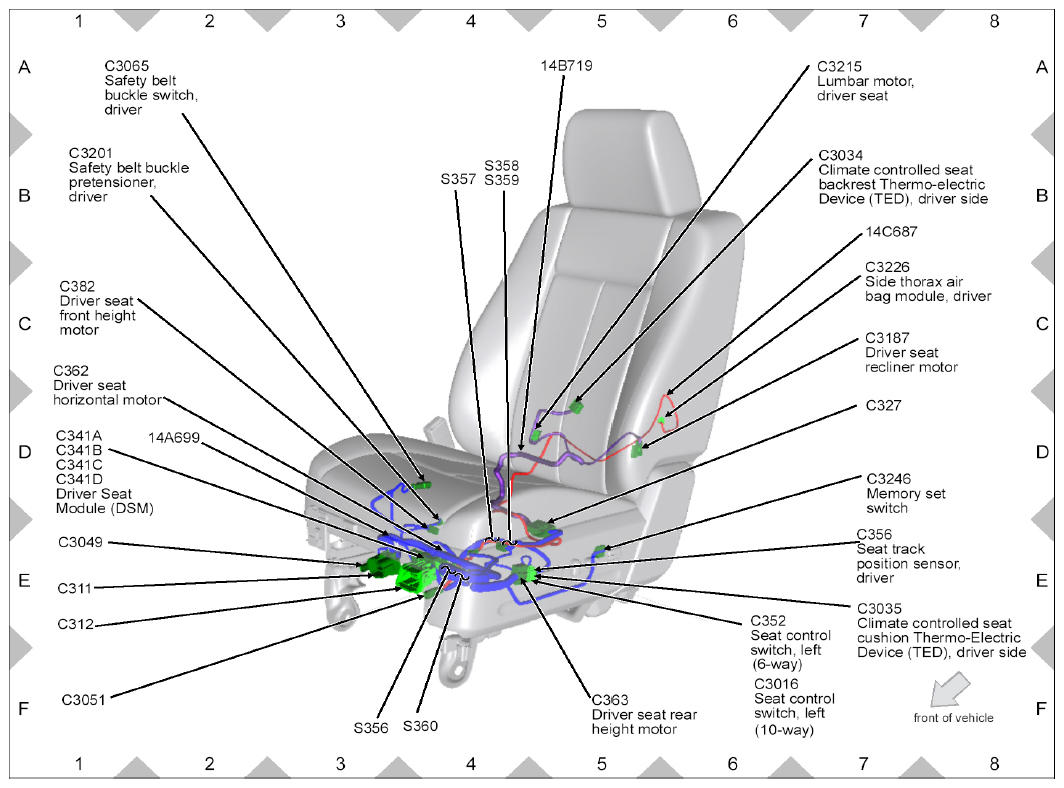

Fig 32: Seat Wiring Harness Connectors Location (1 Of 2)

G08734853

Courtesy of FORD MOTOR CO.

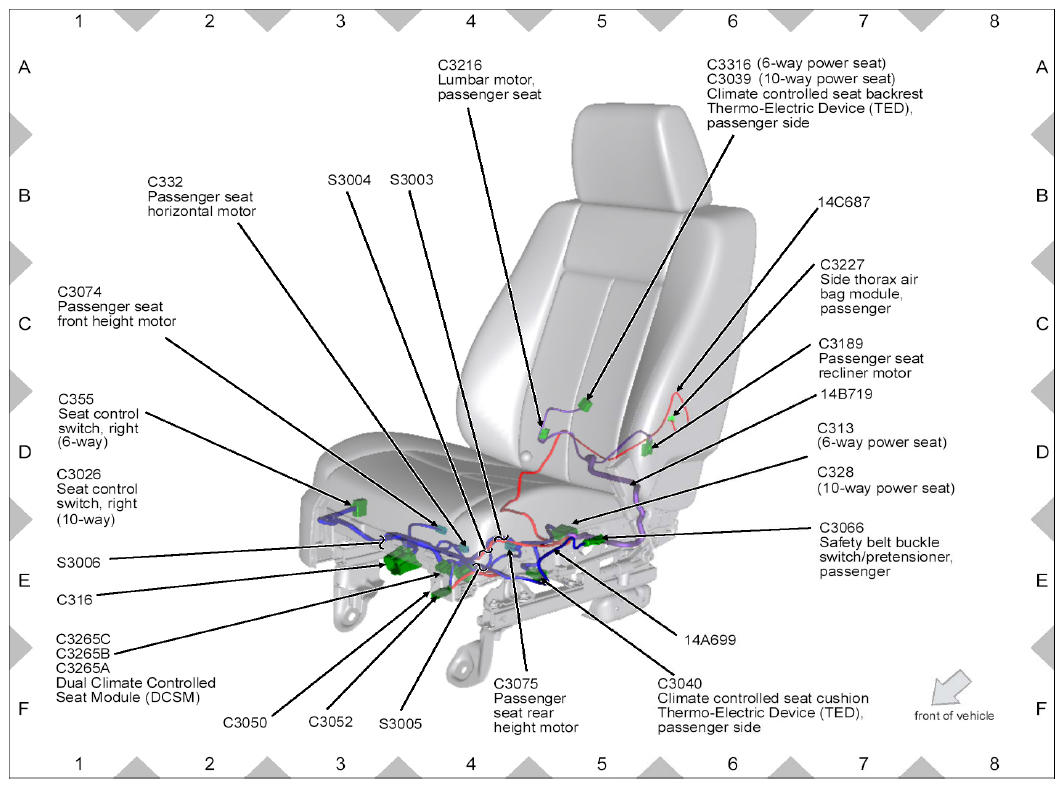

Fig 33: Seat Wiring Harness Connectors Location (2 Of 2)

G08734854

Courtesy of FORD MOTOR CO.

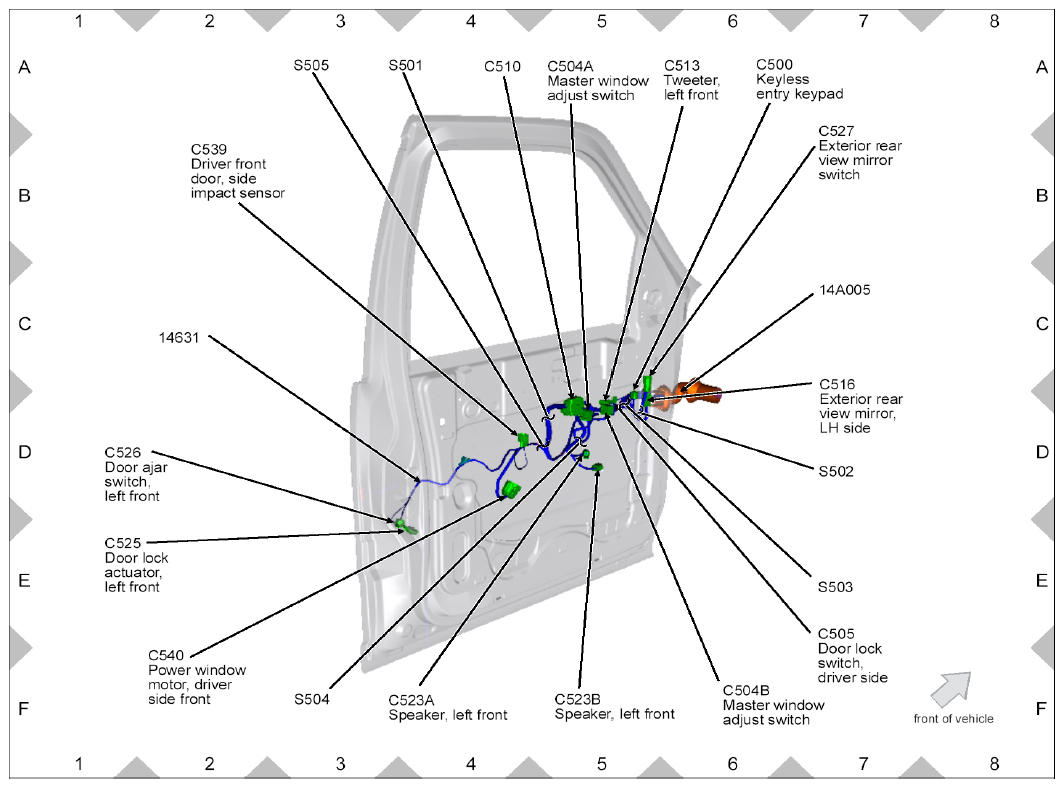

Fig 34: Driver Front Door Side Wiring Harness Connectors Location LH

G08734855

Courtesy of FORD MOTOR CO.

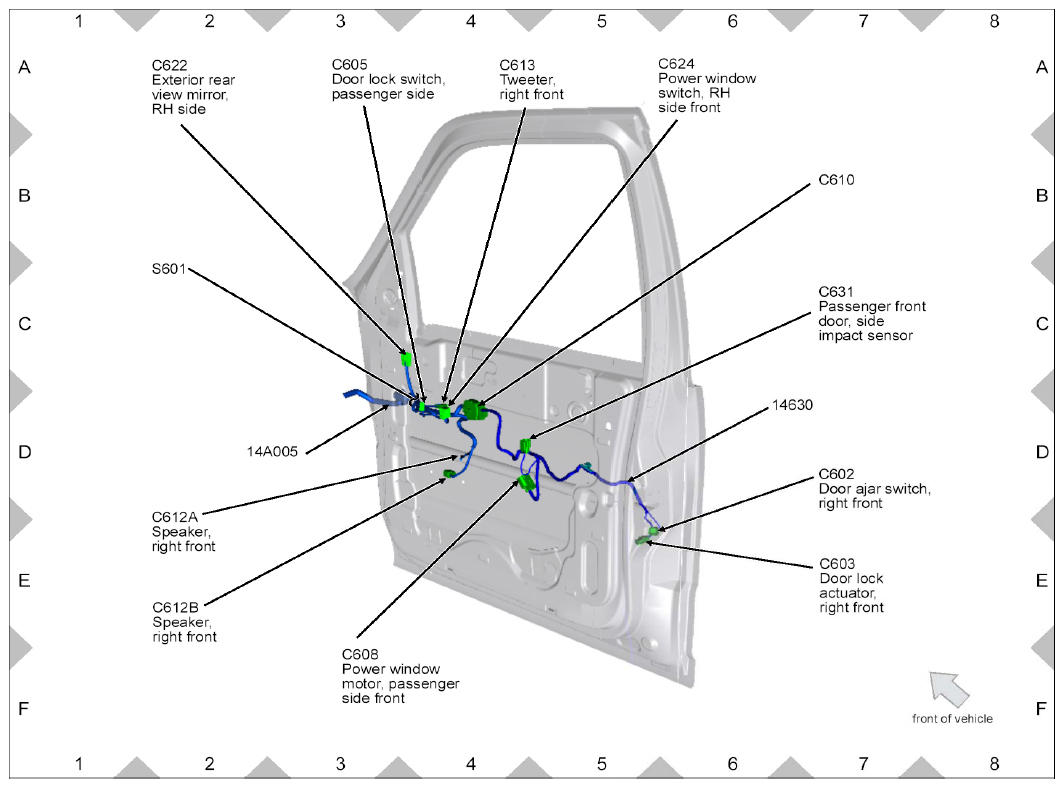

Fig 35: Passenger Front Door Side Wiring Harness Connectors Location RH

G08734856

Courtesy of FORD MOTOR CO.

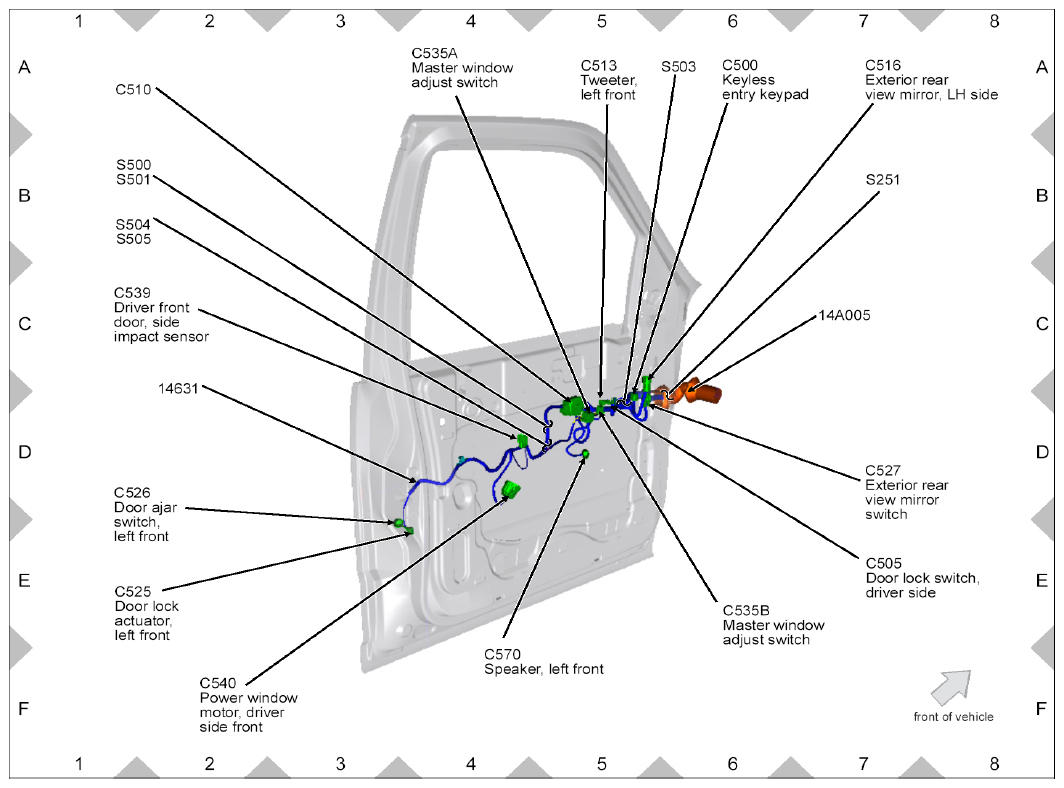

Fig 36: Driver Front Door Side Wiring Harness Connectors Location LH

G08734857

Courtesy of FORD MOTOR CO.

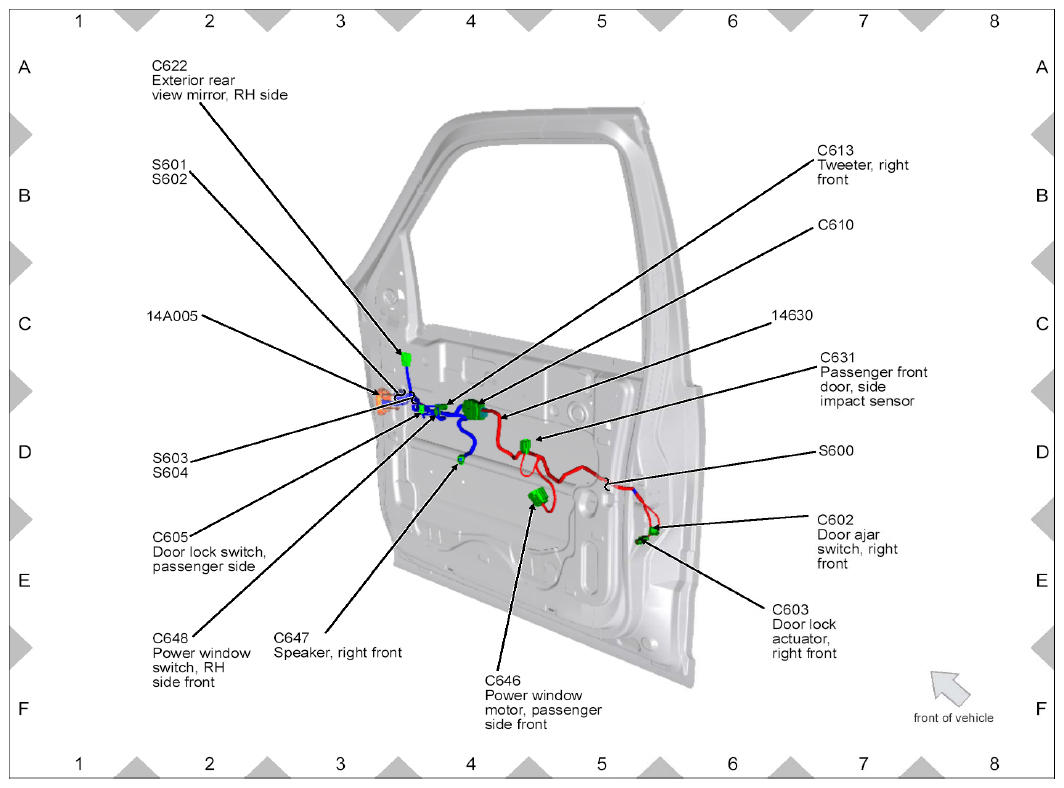

Fig 37: Passenger Front Door Side Wiring Harness Connectors Location RH

G08734858

Courtesy of FORD MOTOR CO.

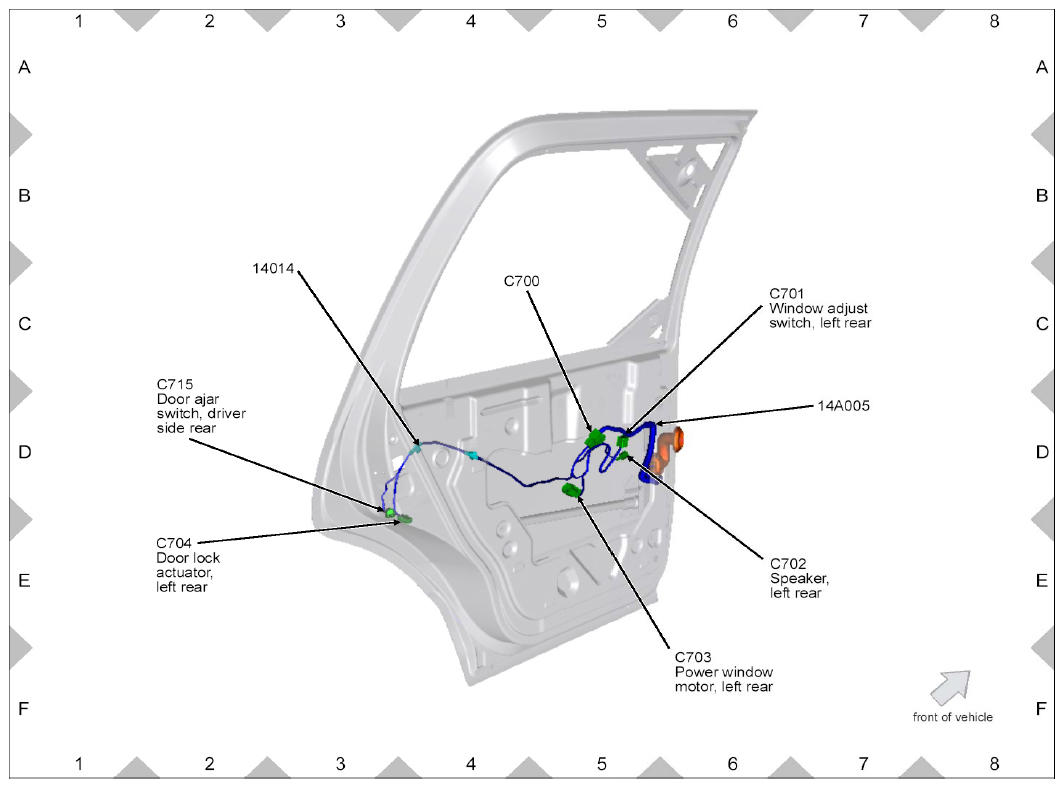

Fig 38: Driver Rear Door Side Wiring Harness Connectors Location LH

G08734859

Courtesy of FORD MOTOR CO.

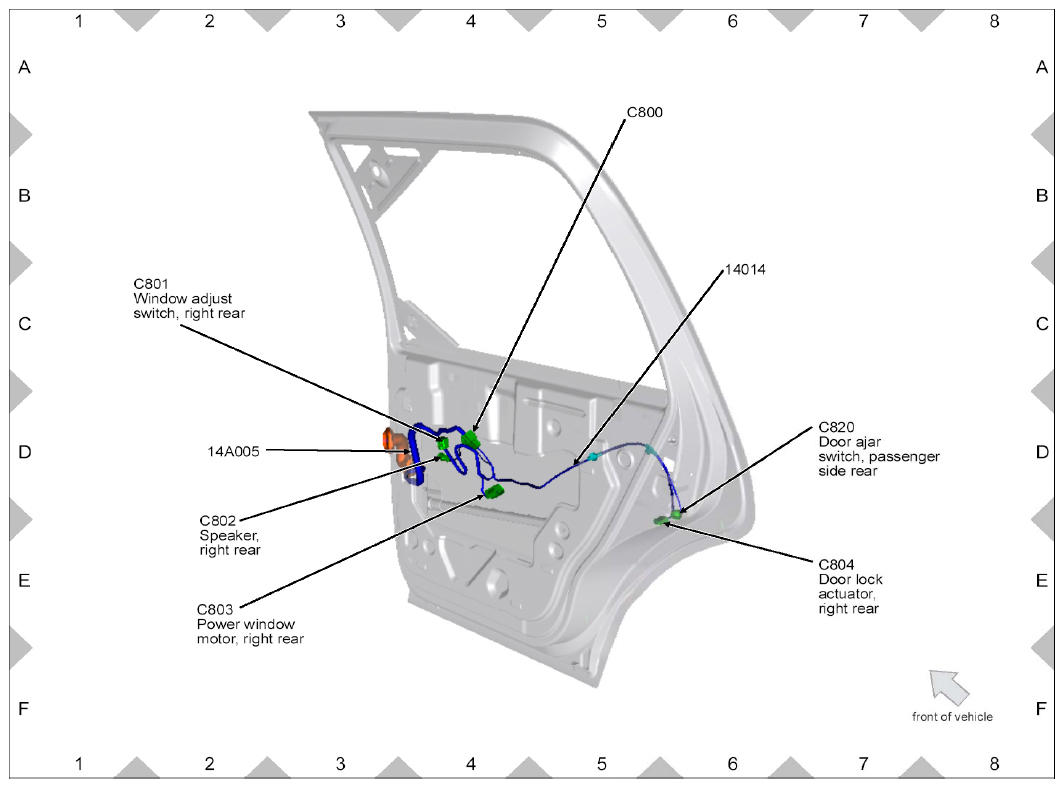

Fig 39: Passenger Rear Door Side Wiring Harness Connectors Location RH

G08734860

Courtesy of FORD MOTOR CO.

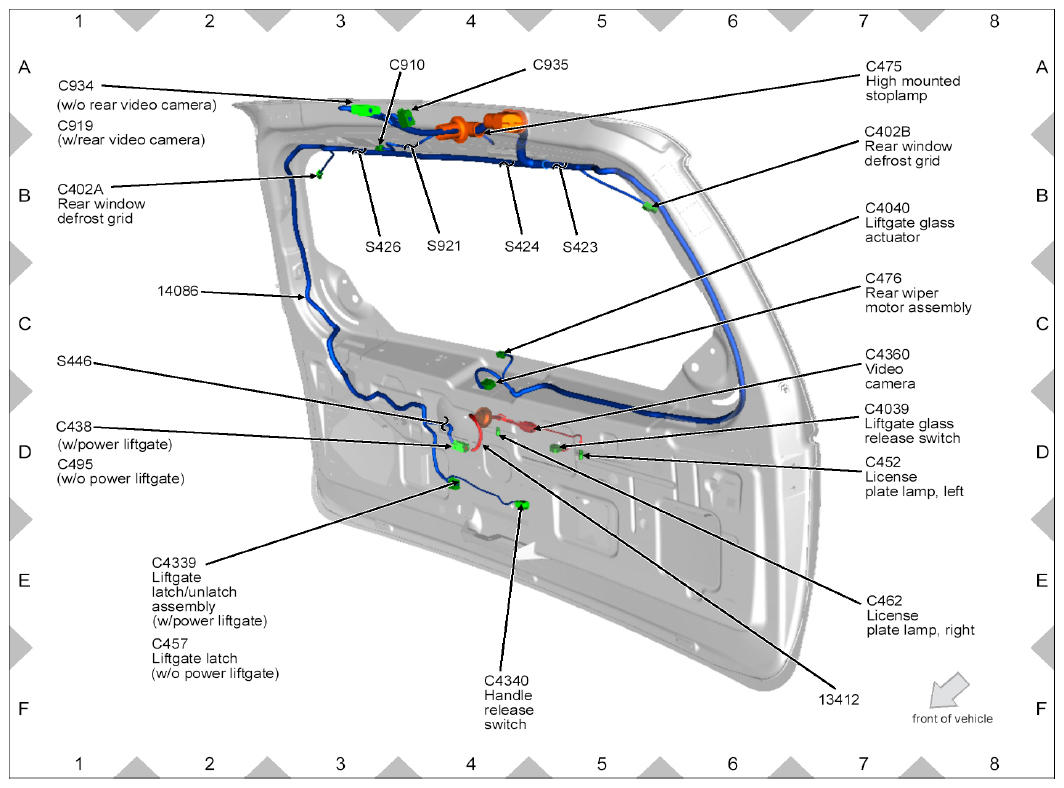

Fig 40: Back Door Wiring Harness Connectors Location (1 Of 2)

G08734861

Courtesy of FORD MOTOR CO.

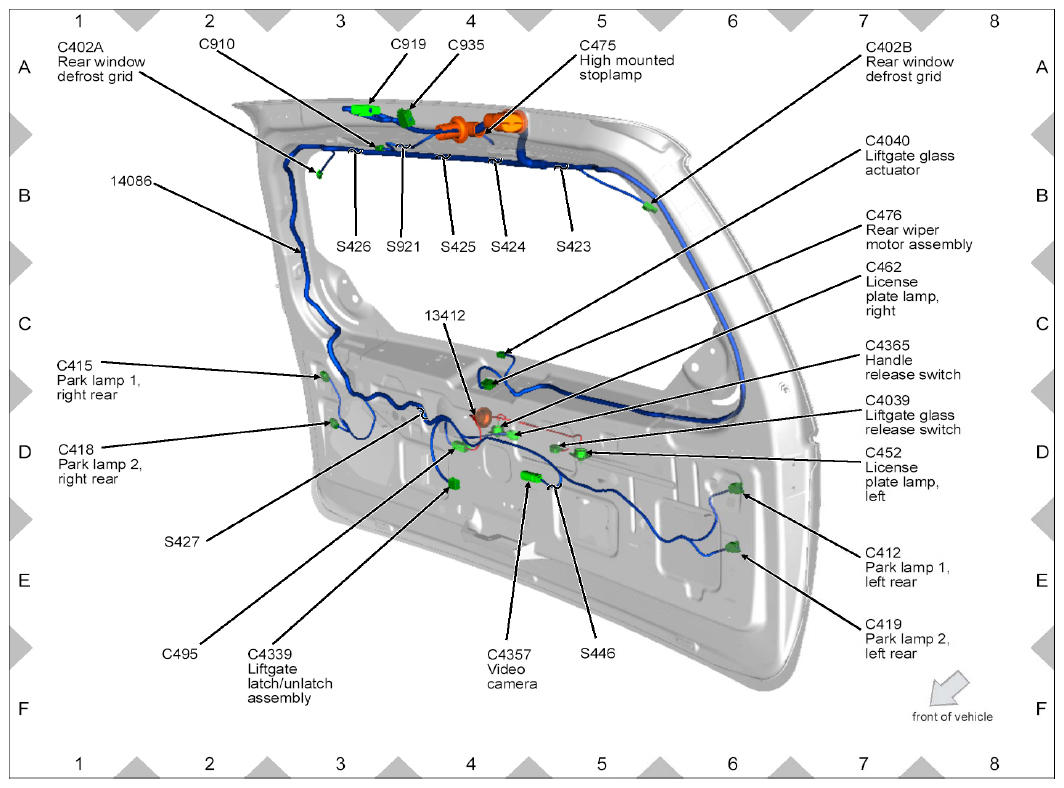

Fig 41: Back Door Wiring Harness Connectors Location (2 Of 2)

G08734862

Courtesy of FORD MOTOR CO.

Fig 42: Roof Wiring Harness Connectors Location (1 Of 2)

G08734863

Courtesy of FORD MOTOR CO.

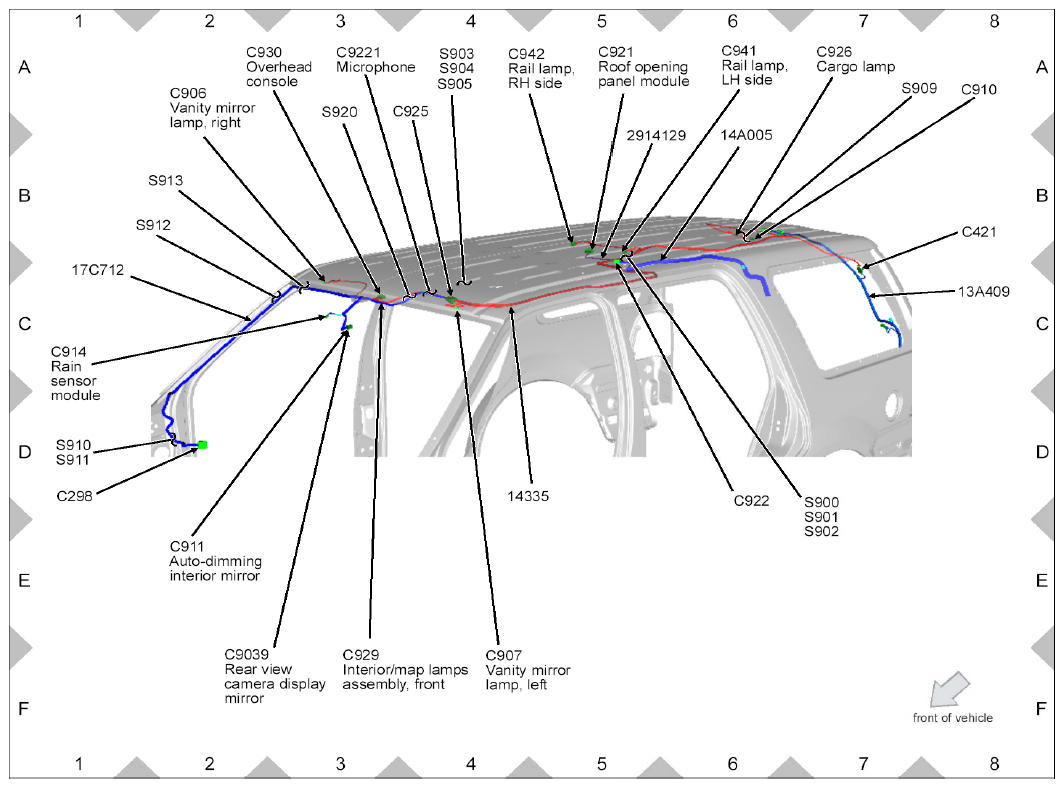

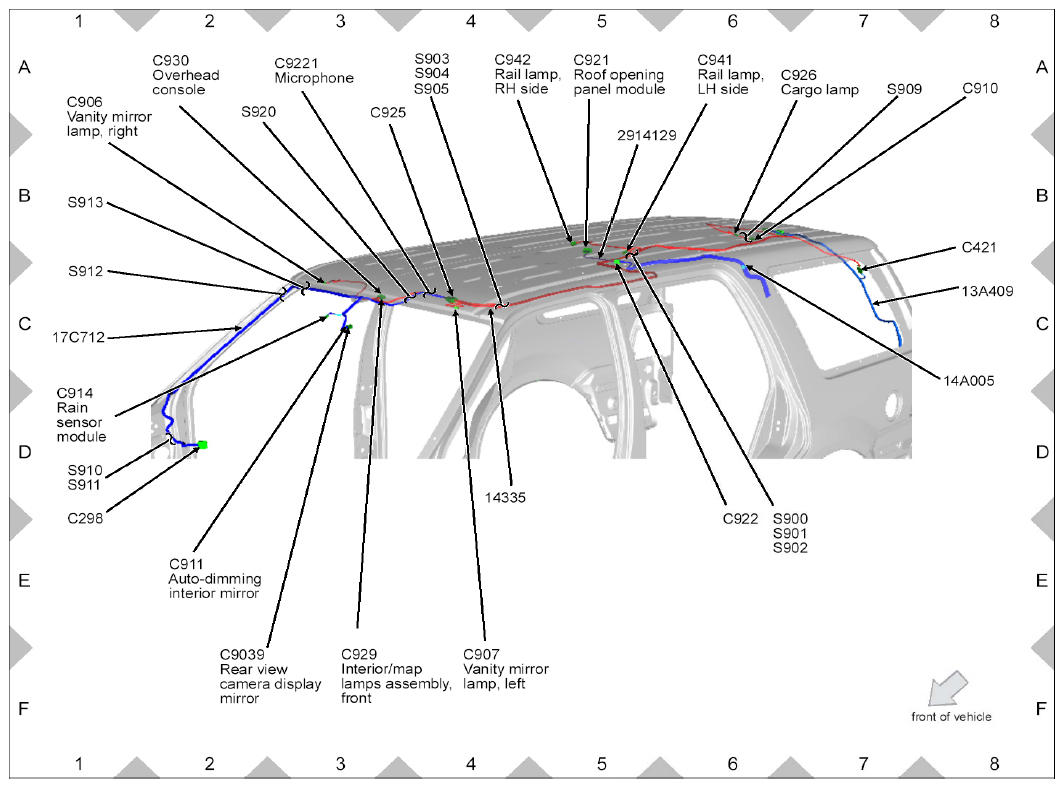

Fig 43: Roof Wiring Harness Connectors Location (2 Of 2)

G08734864

Courtesy of FORD MOTOR CO.

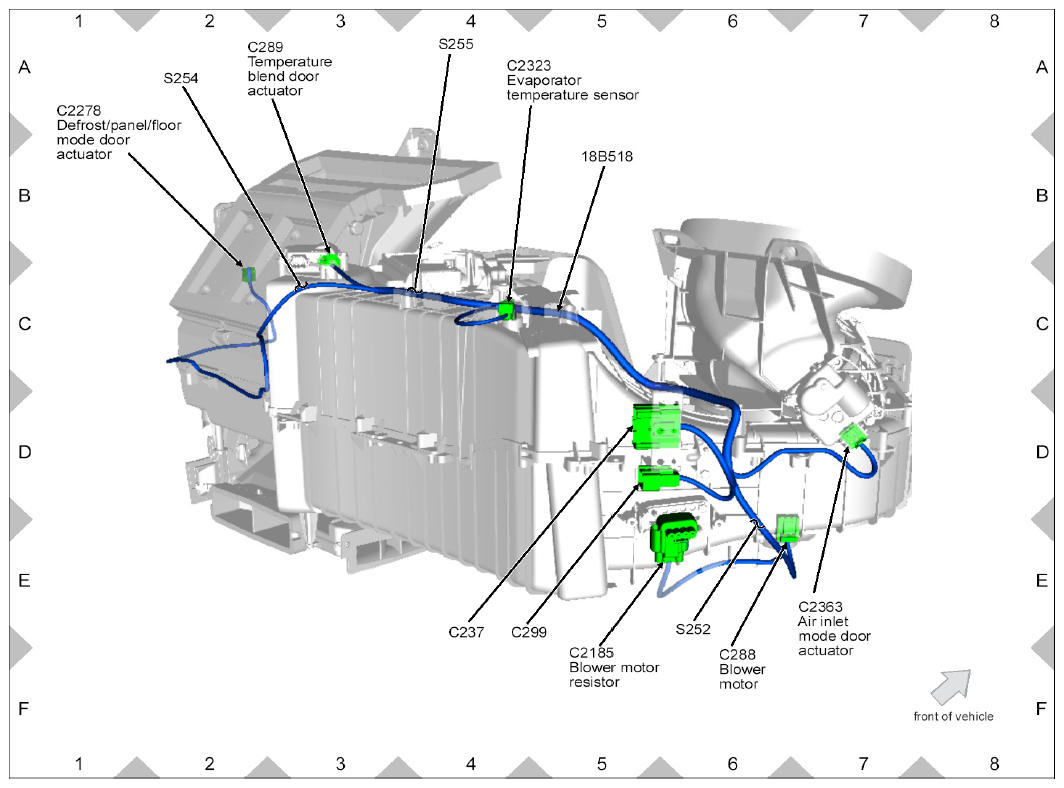

Fig 44: Blower System Wiring Harness Connectors Location (1 Of 2)

G08734865

Courtesy of FORD MOTOR CO.

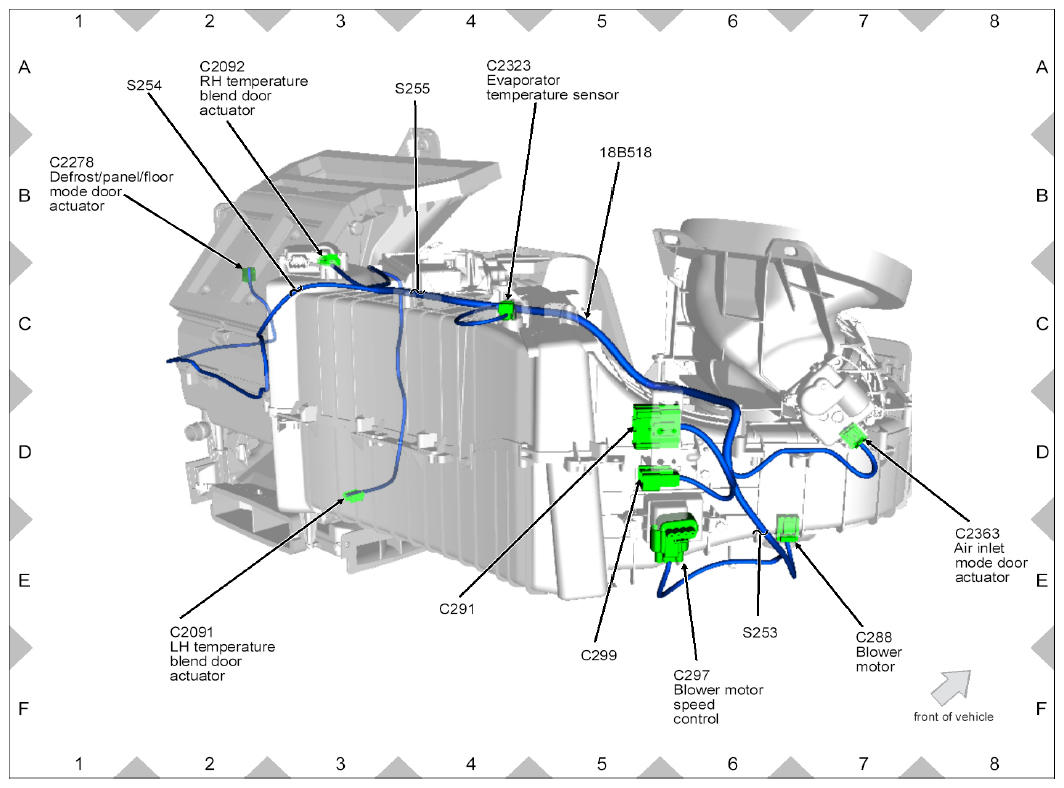

Fig 45: Blower System Wiring Harness Connectors Location (2 Of 2)

G08734866

Courtesy of FORD MOTOR CO.

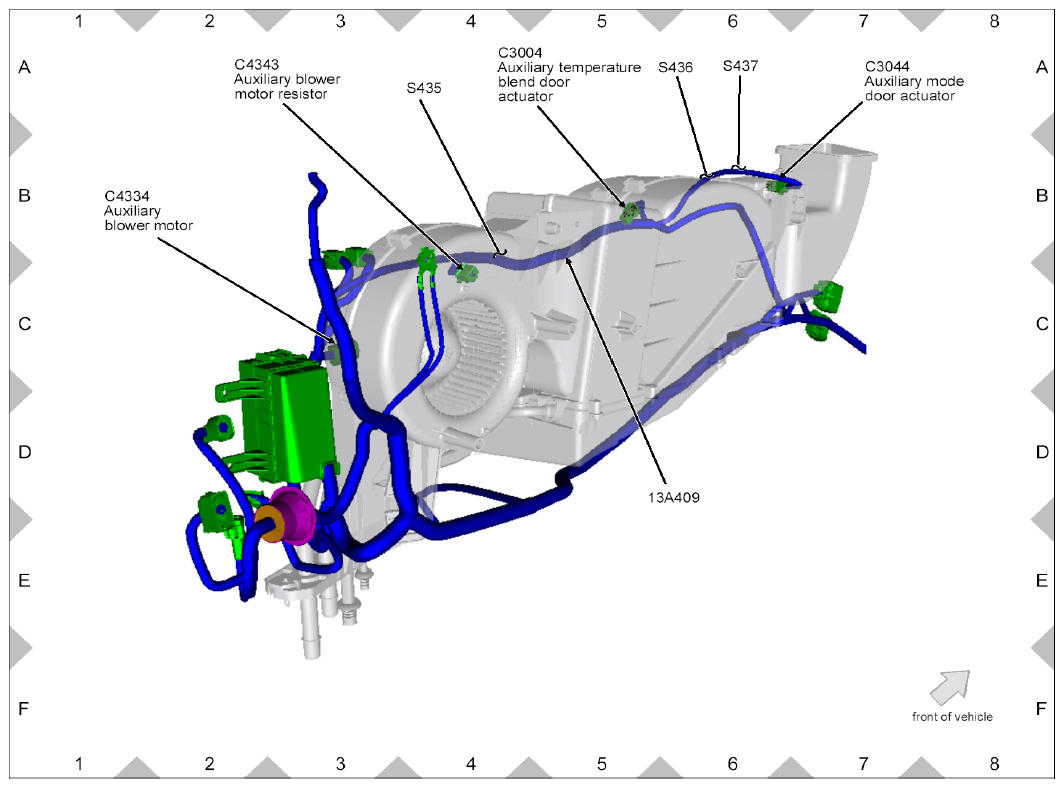

Fig 46: Blower Motor Wiring Harness Connectors Location

G08734867

Courtesy of FORD MOTOR CO.

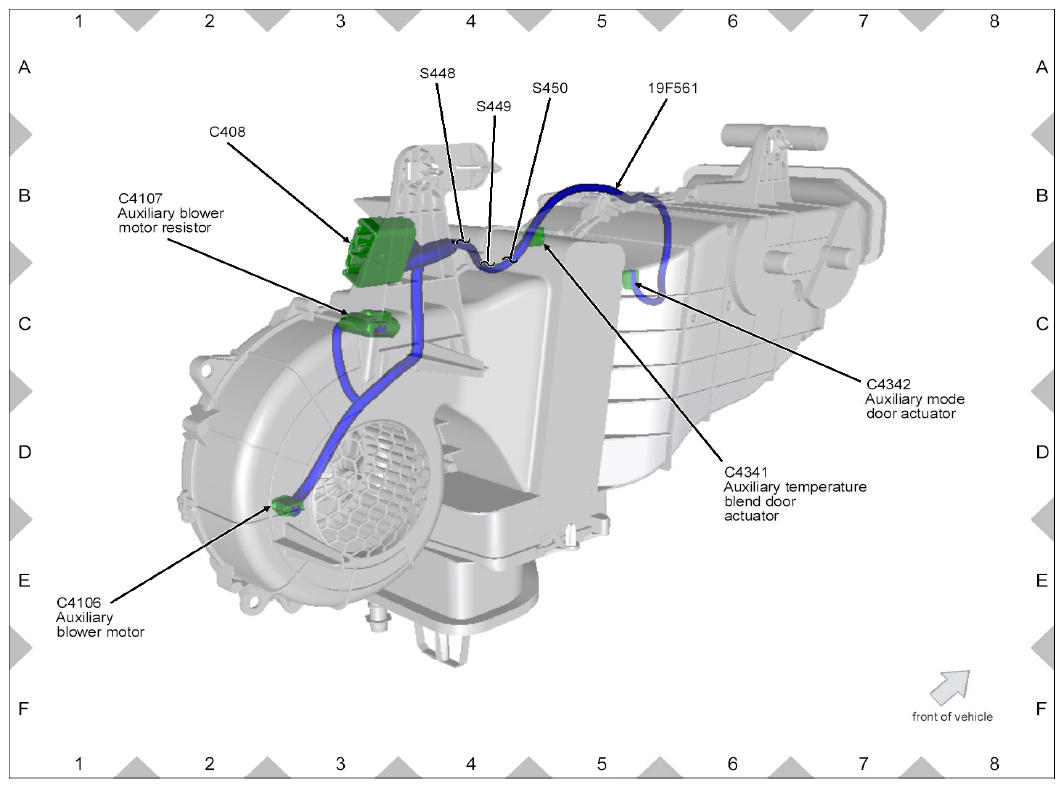

Fig 47: Auxiliary Blower Motor Wiring Harness Connectors Location

G08734868

Courtesy of FORD MOTOR CO.
