Home >> Lincoln >> 2013 >> Navigator Base, RWD >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> MULTIFUNCTION Electronic Modules >> Removal And Installation >> Smart Junction Box (SJB) >> Notes

Smart Junction Box (SJB): Notes

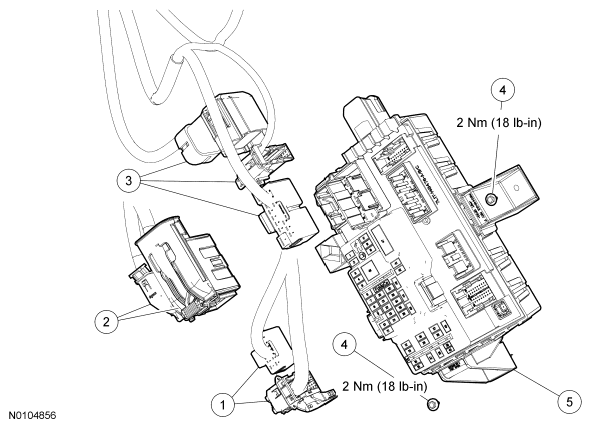

Fig 1: Smart Junction Box (SJB) Replacement Components With Torque Specifications
G06458448Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Smart Junction Box (SJB) electrical connectors (part of 14401)
2 - SJB electrical connectors (part of 14A005)
3 - SJB electrical connectors (part of 14290)
2 W706287 SJB bolts (2 required)
3 14B207 SJB
