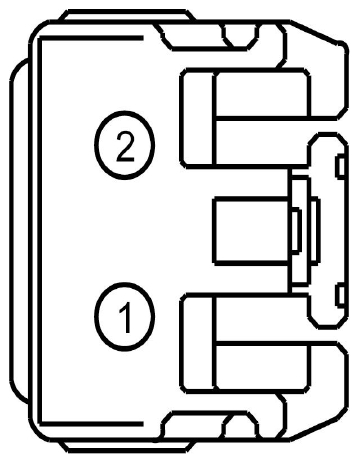

Driver Seat Module (DSM) Connector End View (C341A)

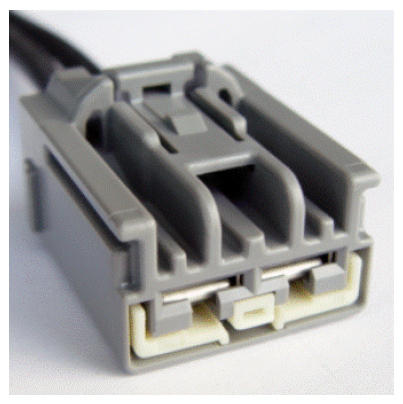

Fig 1: Identifying Driver Seat Module Connector (C341A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBB74 (YE-RD)	12	FUSE - 74 OR CIRCUIT BREAKER
2	GD143 (BK-VT)	12	GROUND - PILLAR B LEFT

Available Pigtail Kits
Pigtail Kit Part Number WPT-236	Service Part Number: 3U2Z-14S411-PA  Gauge: 10  Pin material: Tin  Cavities: 2  Vehicle Uses Mirror - Vanity Module - Seat Memory Motor - Heater/AC Blower (Auxiliary) Motor - Heater/AC Blower (Front) Radio - Amplifier Resistor - Blower Motor (Front) Switch - Heater/A/C Blower (Front)
