Antenna Module Connector End View (C9021)
Antenna Module Connector End View (C9021)

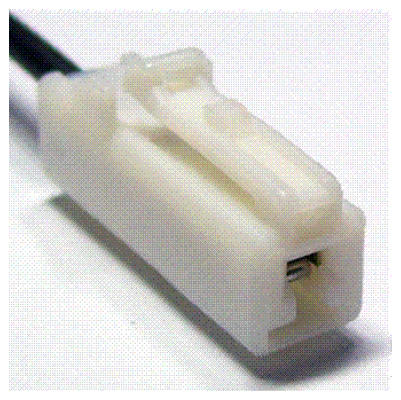

Fig 1: Identifying Antenna Module Connector (C9021)
Courtesy of FORD MOTOR CO.
Pin
Circuit
Gauge
Circuit Function
Qualifier
1
CME13 (YE-OG)
20
CTRL MOD. - POWER ANTENNA MOTOR
Available Pigtail Kits
Pigtail Kit Part Number
WPT-1106
Service Part Number:
AU2Z-14S411-AUA
Gauge:
16
Pin material:
Tin
Cavities:
1
Vehicle Uses
Module - Radio Power Antenna
