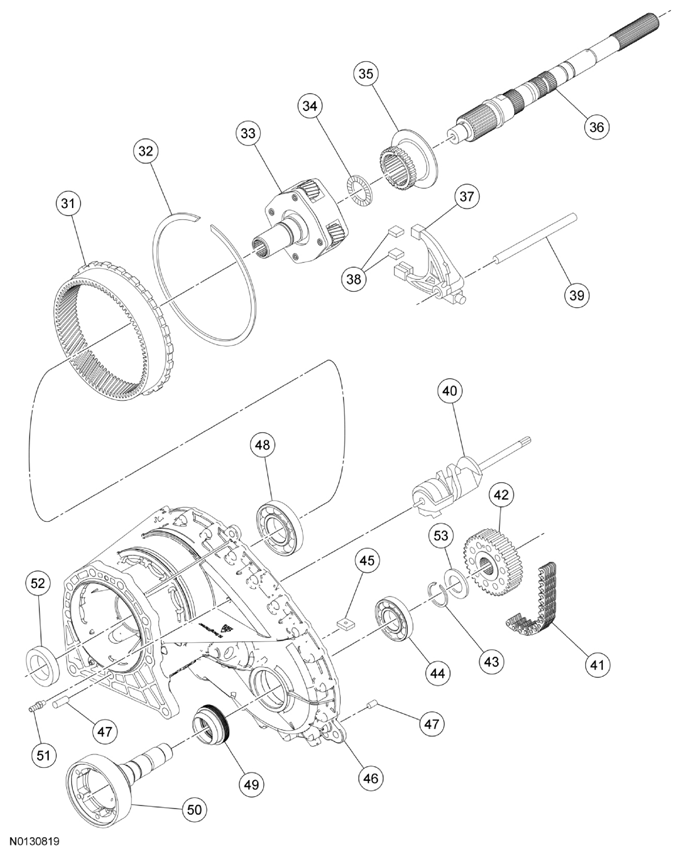

| 31 |
7A153 |
Ring gear |
| 32 |
7064 |
Snap ring |
| 33 |
7A398 |
Front planet carrier |
| 34 |
7D221 |
Front planet needle bearing |
| 35 |
7D164 |
Reduction hub |
| 36 |
7061 |
Output shaft |
| 37 |
7389 |
Shift fork |
| 38 |
7C430 |
Shift fork pad (2 required) |
| 39 |
7240 |
Shift fork shaft |
| 40 |
7F063 |
Shift cam assembly |
| 41 |
7A029 |
Drive chain |
| 42 |
7177 |
Driven sprocket |
| 43 |
7917 |
Snap ring |
| 44 |
7025 |
Front output shaft support bearing |
| 45 |
7E290 |
Magnet |
| 46 |
7005 |
Case |
| 47 |
7B362 |
Dowel |
| 48 |
7025 |
Front input shaft support bearing |
| 49 |
7B215 |
Front output shaft oil seal |
| 50 |
7061 |
Front output shaft |
| 51 |
7034 |
Vent tube |
| 52 |
7B215 |
Front input shaft seal |
| 53 |
7N063 |
Driven sprocket spacer |
