Audio System/Navigation
>>
With Sync, Without Navigation
With Sync, Without Navigation

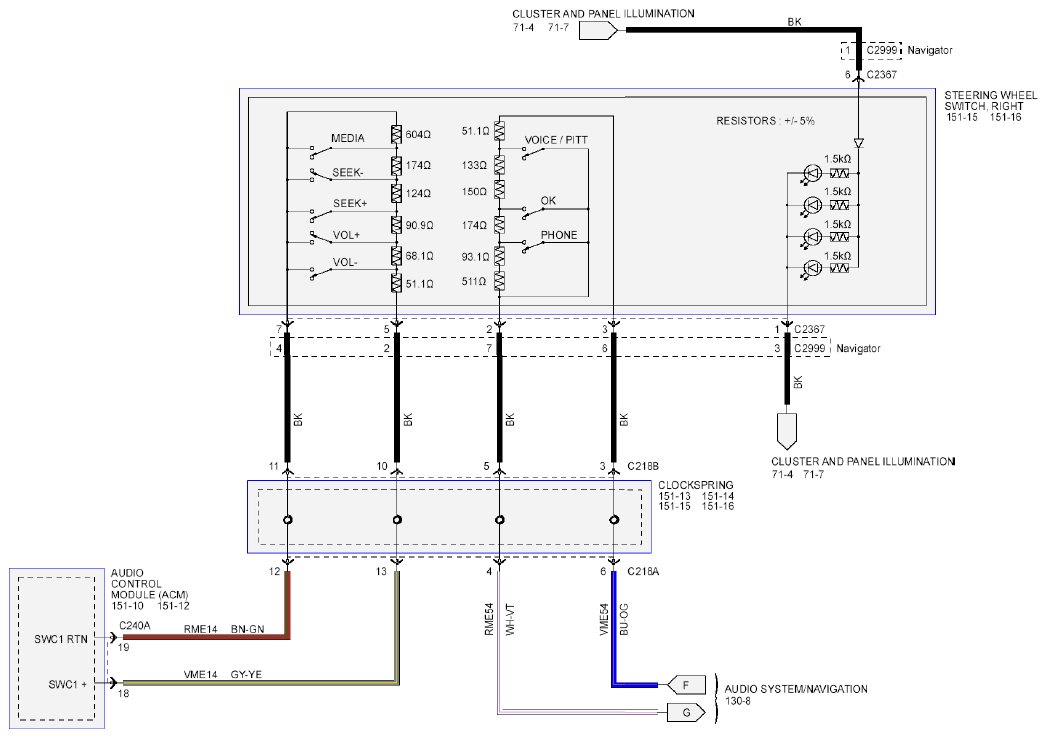

Fig 1: Audio System Navigation System Wiring Diagram - With SYNC, Without Navigation
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
