Audio System/Navigation: Notes

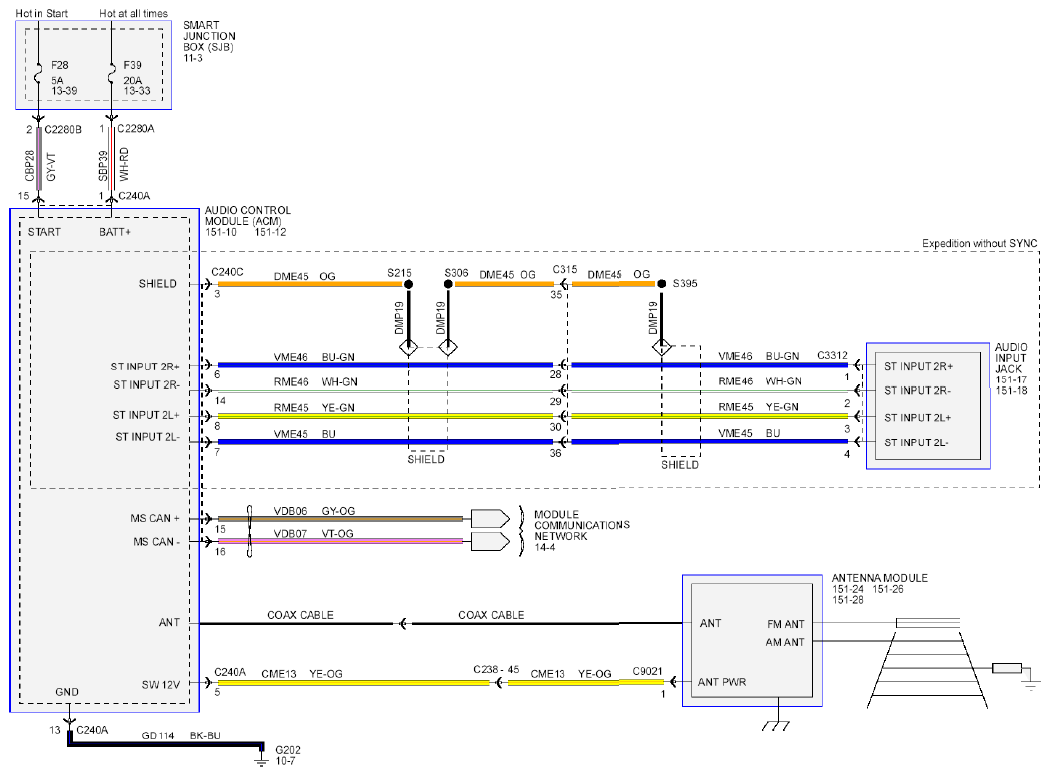

Fig 1: Audio System Navigation System Wiring Diagram (1 Of 2)
G08734736Courtesy of FORD MOTOR CO.

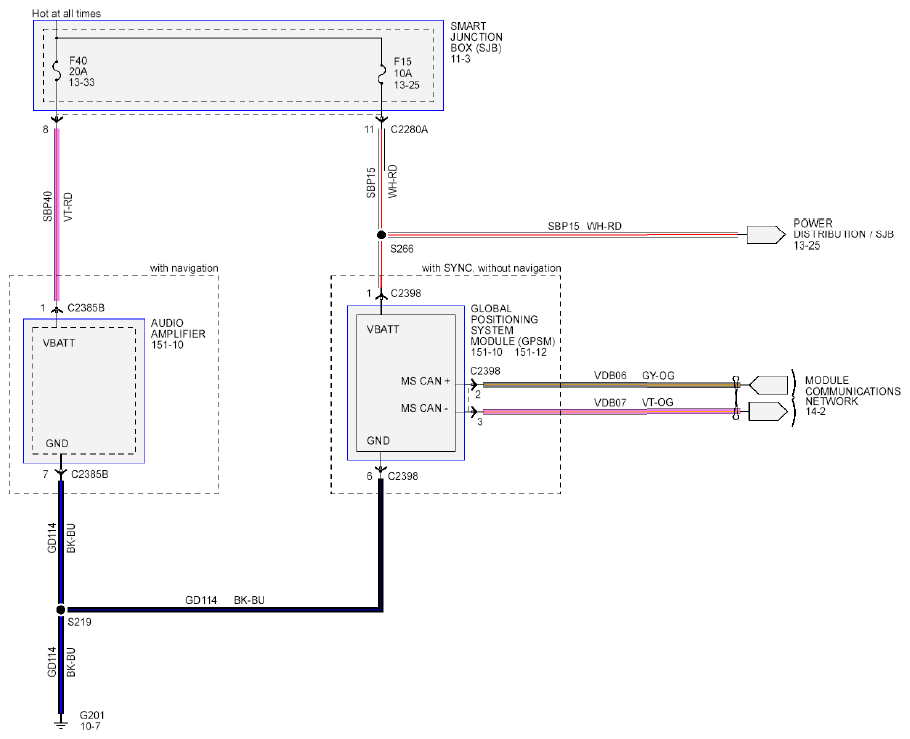

Fig 2: Audio System Navigation System Wiring Diagram (2 Of 2)
G08734747Courtesy of FORD MOTOR CO.
