Transfer Case Assembly Connector End View (C350)

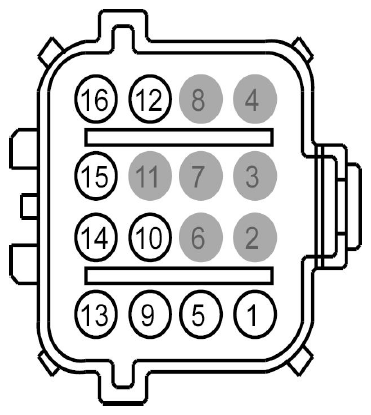

Fig 1: Identifying Transfer Case Assembly Connector (C350)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CCF15 (BN-YE)	18	SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 2 (4WDP)	Expedition
2	*	*	Not Used
3	*	*	Not Used
4	*	*	Not Used
5	CCF14 (GN-OG)	18	SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 1 (4WDP)	Expedition
6	*	*	Not Used
7	*	*	Not Used
8	*	*	Not Used
9	CCF16 (VT-GN)	18	SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 3 (4WDP)	Expedition
10	RCF09 (BN-WH)	18	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE MOTOR POSITION RETURN (4WDPRTN)	Expedition
11	*	*	Not Used
12	CCF04 (VT-OG)	14	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE CLUTCH RETURN (4WDCRTN)	Navigator
13	CCF17 (WH-OG)	18	SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 4 (4WDP)	Expedition
14	CCF08 (GY-OG)	14	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE MOTOR CW (4WDM)	Expedition
15	CCF07 (BN-GN)	14	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE MOTOR CCW (4WDM)	Expedition
16	CCF03 (GY-BN)	14	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE CLUTCH (4WDC)
