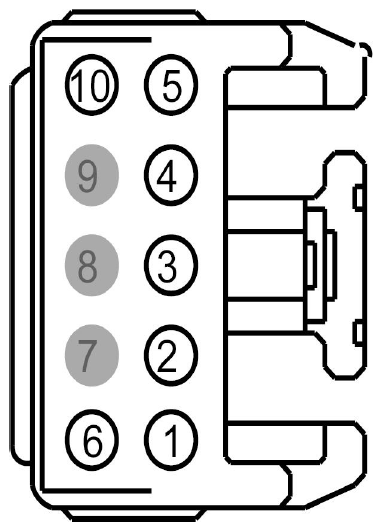

Roof Opening Panel Module Connector End View (C921)

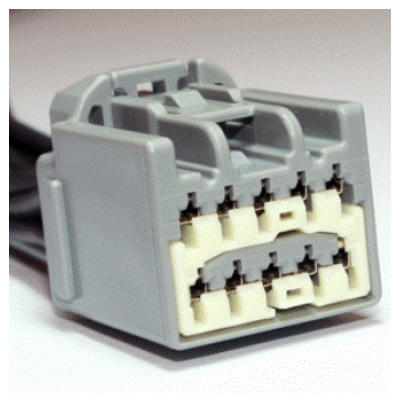

Fig 1: Identifying Roof Opening Panel Module Connector (C921)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	* (BK)	16	GROUND
2	* (YE)	18	CENTER SWITCH COMMON
3	* (OG)	18	ACCESSORY DELAY RELAY SWITCHED OUTPUT
4	* (WH)	18	ROOF OPENING PANEL SWITCH, TILT SIGNAL
5	* (GN)	18	ROOF OPENING PANEL SWITCH, OPEN SIGNAL
6	* (RD)	16	FUSED B+
7	*	*	Not Used
8	*	*	Not Used
9	*	*	Not Used
10	* (GY)	18	ROOF OPENING PANEL SWITCH, CLOSE SIGNAL

Available Pigtail Kits

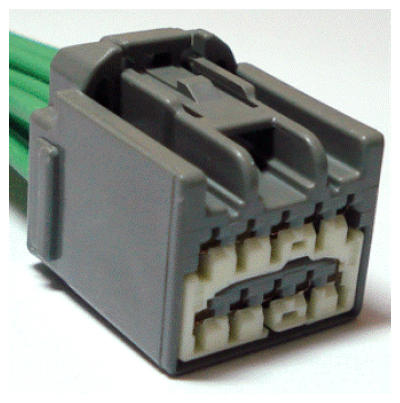

Pigtail Kit Part Number WPT-156	Service Part Number: 1U2Z-14S411-BLA  Gauge: 16  Pin material: Tin  Cavities: 10  Vehicle Uses Fuse Panel Junction Block Module - Anti-theft Module - Heated Seat Radio - Amplifier Switch - Gear Shift Select/Neutral Safety Switch - Headlamp Switch - Heated Seat Switch - Moon Roof/Sun Roof Switch - Multifunction
Pigtail Kit Part Number WPT-1037	Service Part Number: 1U2Z-14S411-BLB  Gauge: 14  Pin material: Silver  Cavities: 10  Vehicle Uses Inverter - DC to AC Module - Anti-theft Module - Heated Seat Module - Power Moonroof Radio - Amplifier Solenoid - Brake Shift Park Interlock Switch - Gear Shift Select/Neutral Safety Switch - Headlamp Switch - Heated Seat Switch - Moon Roof/Sun Roof Switch - Multifunction Switch - Overdrive Cancel Switch - Turn Signal Switch - Windshield Wiper/Washer
