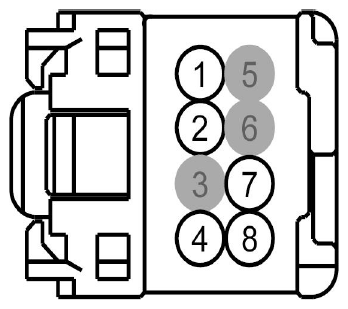

Power Liftgate/Traction Control/Hazard Switch Connector End View (C2361)

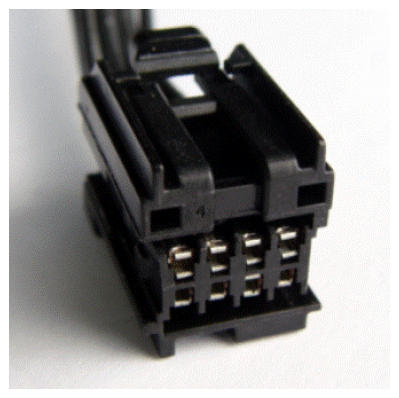

Fig 1: Identifying Power Liftgate/Traction Control/Hazard Switch Connector (C2361)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VLN18 (BU-WH)	18	DIMMER - IP/SWITCH ILLUMINATION
2	CCA15 (YE-GY)	20	SWITCH - IVD/TCS DISABLE
3	*	*	Not Used
4	GD138 (BK-WH)	20	GROUND - PILLAR A LEFT
5	*	*	Not Used
6	*	*	Not Used
7	CPR63 (GY-YE)	20	SWITCH - POWER LIFTGATE # OPEN/CLOSE
8	CLN30 (GN-OG)	20	SWITCH - HAZARD LAMPS

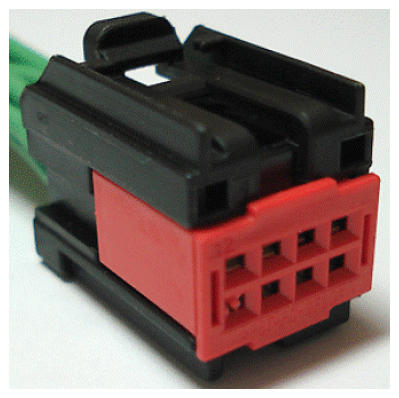

Available Pigtail Kits
Pigtail Kit Part Number WPT-204	Service Part Number: 3U2Z-14S411-BGA  Gauge: 20  Pin material: Tin  Cavities: 8  Vehicle Uses Lamp - Dimmer Switch Switch - 4x4 Control Switch - Adjustable Pedal Switch - Dimmer Switch - Hazard Warning Switch - Moon Roof/Sun Roof Switch - Multifunction (Wiper) Switch - Third Row Power Folding Seat (Rear LH) Switch - Traction Control
Pigtail Kit Part Number WPT-995	Service Part Number: 3U2Z-14S411-BGB  Gauge: 18  Pin material: Silver  Cavities: 8  Vehicle Uses Lamp - Dimmer Switch Switch - 4x4 Control Switch - Adjustable Pedal Switch - Center Stack (Multipurpose) Switch - Dimmer Switch - Hazard Warning Switch - Moon Roof/Sun Roof Switch - Multifunction Switch - Multifunction (Wiper) Switch - Seat (3rd Row) Switch - Third Row Power Folding Seat Switch - Traction Control
