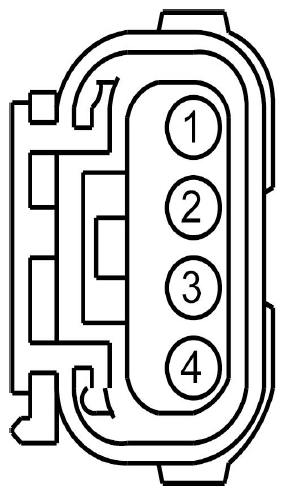

Fuel Pump Module Connector End View (C433)

Fig 1: Identifying Fuel Pump Module Connector (C433)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	RMC32 (GN-BU)	18	CTRL MOD. - SENSOR FUEL LEVEL
2	VMC11 (YE-VT)	18	SENSOR - FUEL LEVEL (FLI)
3	RE515 (WH-BN)	14	FUEL PUMP RETURN (FPRTN)
4	CE515 (YE-GY)	14	FUEL PUMP POWER (FPPWR)

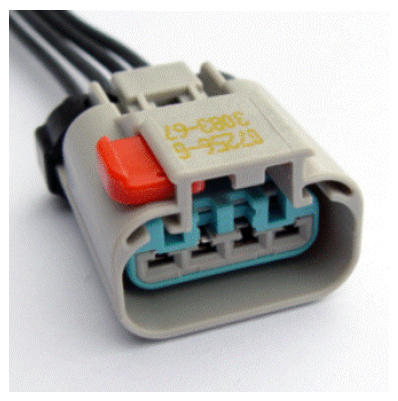

Available Pigtail Kits
Pigtail Kit Part Number WPT-709	Service Part Number: 3U2Z-14S411-DGAA Gauge: 14 Pin material: Tin Cavities: 4 Vehicle Uses Control - Engine Air Shutoff Fuel Pump/Sending Unit
