Washer System

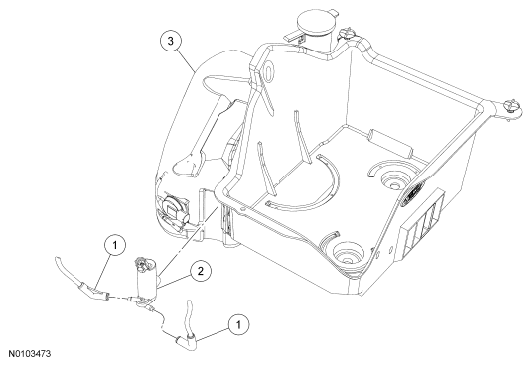

Fig 1: Identifying Windshield Washer Reservoir And Windshield Washer Pump With Hoses
G06135490Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Windshield washer pump hoses
2 - Windshield washer pump
3 - Windshield washer reservoir (part of battery tray assembly)
  1. For additional information, refer to the appropriate procedures in the service information.
