Rain Sensor: Notes

NOTE: Vehicle without Headlamp Control Module 2 (HCM-2) shown in illustration, vehicle with HCM-2 similar.

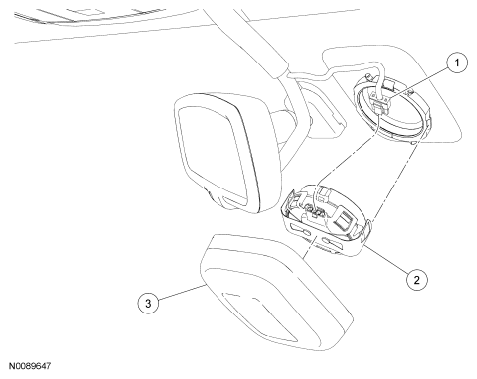

Fig 1: Identifying Rain Sensor With Cover And Electrical Connector
G06135524Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Electrical connector (part of 17C712)
2 17D547 Rain sensor
3 17D550 Rain sensor cover
