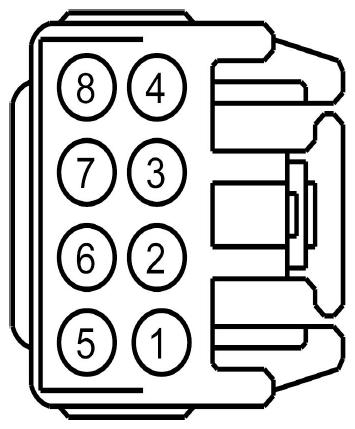

Power Seat Switch, Left Connector End View (C352)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CPS25 (WH-VT) | 14 | SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT UP | |
| 2 | GD145 (BK-BU) | 14 | GROUND - PILLAR B RIGHT | |
| 3 | CPS23 (GN-VT) | 14 | SWITCH - SEAT ADJUST. DRIVER FORWARD | |
| 4 | SBB23 (WH-RD) | 14 | FUSE - 23 OR CIRCUIT BREAKER | |
| 5 | CPS27 (BU-BN) | 14 | SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP | |
| 6 | CPS28 (GN) | 14 | SWITCH - SEAT ADJUST. DRIVER REARWARD | |
| 7 | CPS26 (YE-BU) | 14 | SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN | |
| 8 | CPS24 (GY) | 14 | SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT DOWN |
