Starter Motor - Ground Circuit Test
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Before beginning any service procedure
, refer to SAFETY WARNINGS
. Failure to follow this instruction may result in serious personal injury.
A slow cranking condition can be caused by resistance in the ground or return portion of the cranking circuit. This procedure will check the voltage drop in the ground circuit.

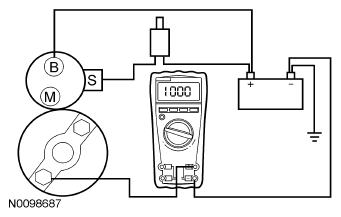

- Connect a remote starter switch between starter solenoid "S" terminal and the battery positive terminal.
- Connect the Digital Multimeter positive lead to the starter motor housing (the connection must be clean and free of rust or grease). Connect the negative lead to the negative battery terminal.
- Place the gear select lever in Park or Neutral.
- Engage the remote starter switch and crank the engine. Read and record the voltage reading. The reading should be 0.5 volt or less.
- If the voltage drop is greater than 0.5 volt, clean the negative cable connections at the battery, the body ground connections and the starter ground connection. Retest.
- If the voltage drop is greater than 0.5 volt, install a new negative battery cable. BATTERY, MOUNTING AND CABLES
- If the voltage reading is less than 0.5 volt and the engine still cranks slowly, install a new starter motor. Refer to STARTER MOTOR - 2.0L GTDI or STARTER MOTOR - 3.5L, 3.7L .
