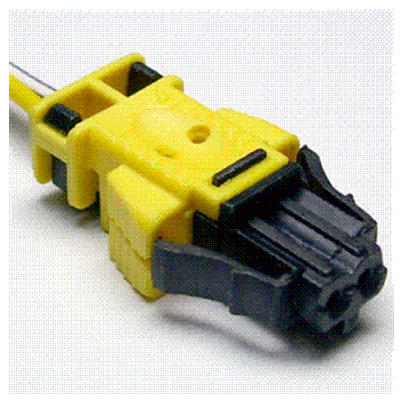

Collapsible Steering Column Module Connector End View (C2360)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CR168 (WH-GN) | 20 | CTRL MOD. - PYROTECHNIC STEERING COLUMN+ | |
| 2 | RR168 (BU-WH) | 20 | CTRL MOD. - PYROTECHNIC STEERING COLUMN- |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1229 | Service Part Number: BU2Z-14S411-BNA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses
|
