Memory Set Switch: Notes

NOTE: MKX shown, Edge similar.

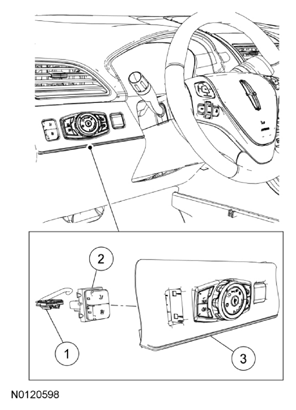

Fig 1: Identifying Electrical Connector, Memory Set Switch And Left Trim Panel
G08980957Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Electrical connector (part of 14401)
2 14776 Memory SET switch
3 044A91 Left trim panel
