Block Heater - 5.0L: Notes

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

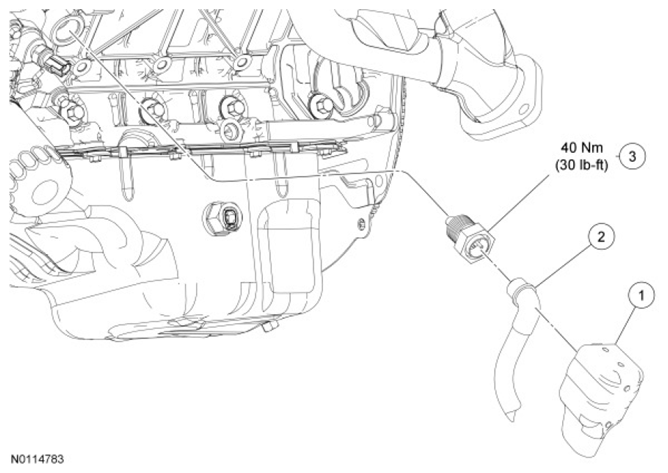

Fig 1: Exploded View Of Block Heater With Torque Specifications (5.0L)
G07488211Courtesy of FORD MOTOR CO.
Item Part Number Description
1 030104 Block heater cover
2 6B018 Block heater electrical connector
3 6A051 Block heater
