Main Control Cover - 3.5L GTDI: Installation

  1. Check for damage. Visual check.
    G08412897Courtesy of FORD MOTOR CO.

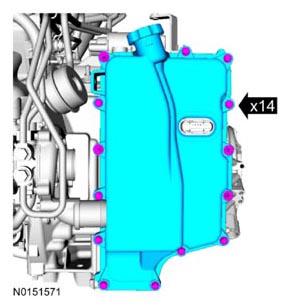

  2. NOTE: Install the studbolts in the correct locations as noted during disassembly.

    Loosely install the bolts.

    G08626980Courtesy of FORD MOTOR CO.

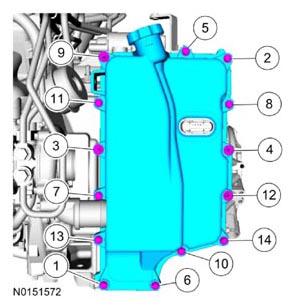

  3. Tighten the main control cover bolts in the sequence shown in illustration.
    • Tighten to 12 Nm (106 lb-in).
      G08626983Courtesy of FORD MOTOR CO.

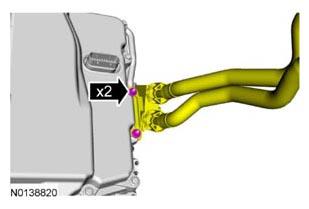

    • Tighten to 9 Nm (80 lb-in).
      G08626979Courtesy of FORD MOTOR CO.

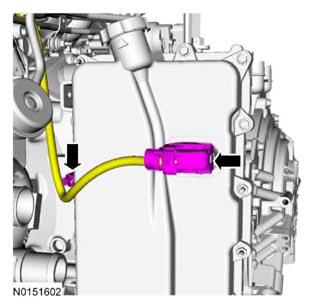

  5. G08626978Courtesy of FORD MOTOR CO.

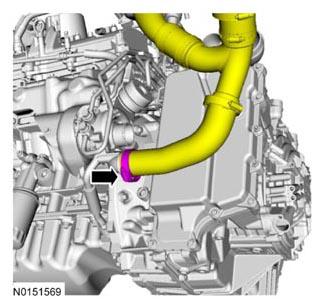

  6. G08626976Courtesy of FORD MOTOR CO.
  7. If equipped.
    • Tighten to 70 Nm (52 lb-in).
      G08616440Courtesy of FORD MOTOR CO.

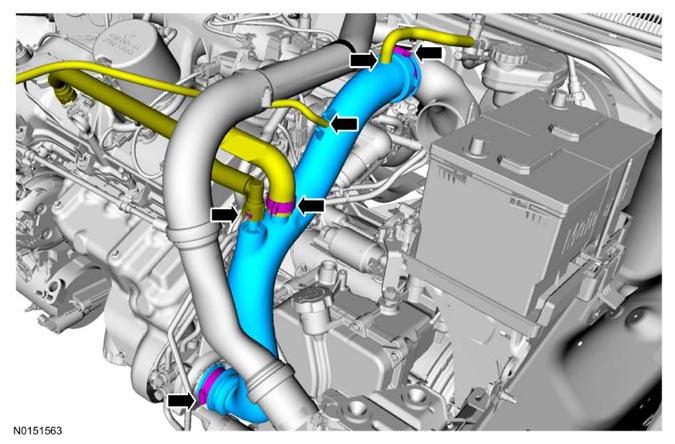

  8. G08626974Courtesy of FORD MOTOR CO.
  9. Fill the transaxle with clean transmission fluid. Refer to TRANSMISSION FLUID DRAIN AND REFILL .
  10. Install the ACL and outlet pipe. REFER to INTAKE AIR DISTRIBUTION & FILTERING .
