Blower Motor: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

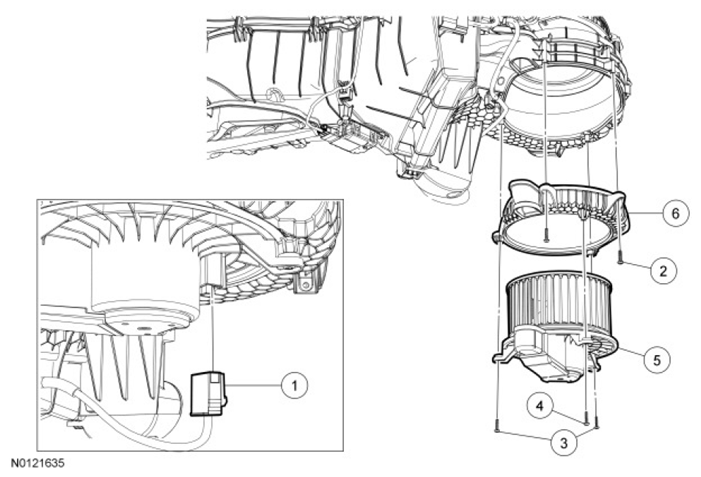

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Blower motor electrical connector (part of 19D605) |
| 2 | - | Blower motor housing extension screw (2 required) |
| 3 | - | Blower motor-to-heater core and evaporator core housing screw (2 required) |
| 4 | - | Blower motor-to-blower motor housing extension screw |
| 5 | 19805 | Blower motor |
| 6 | - | Blower motor housing extension |
