Instrument Panel Electrical Connectors

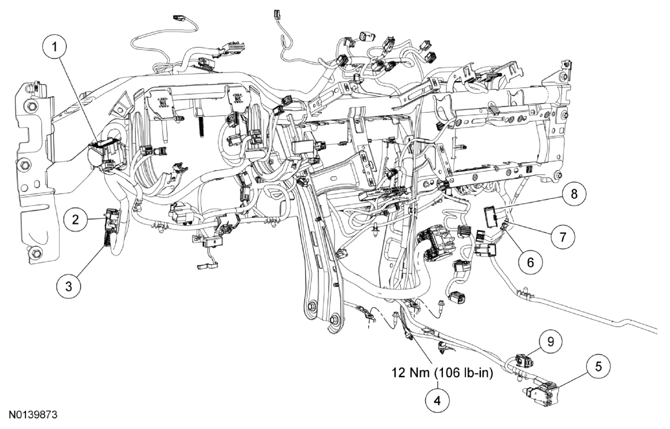

Fig 1: Instrument Panel Electrical Connectors And Related Replacement Components With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | 14401 | LH instrument panel bulkhead electrical connector |
| 2 | 14401 | Smart Junction Box (SJB) lower electrical connector |
| 3 | 14401 | Lower bulkhead electrical connector |
| 4 | W706281 | Ground wire bolt |
| 5 | 14401 | Restraints Control Module (RCM) electrical connector |
| 6 | 14401 | Satellite radio antenna connector |
| 7 | 14401 | Antenna cable |
| 8 | 14401 | RH bulkhead electrical connector |
| 9 | 14D202 | Universal Serial Bus (USB) cable |
- For additional information, refer to the appropriate procedures.
