Door Lock Switch, Driver Side: Schematic

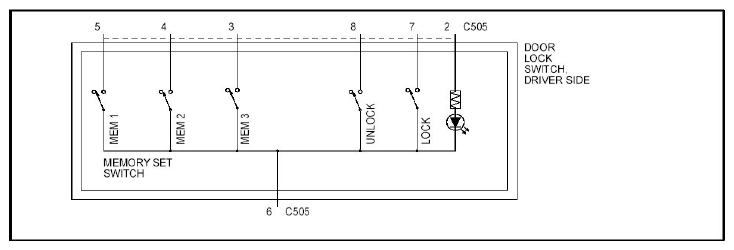

Fig 1: Door Lock Switch Schematic (Driver Side)

G09081935

Courtesy of FORD MOTOR CO.
