OEM Ground Distribution: Grounds: G201

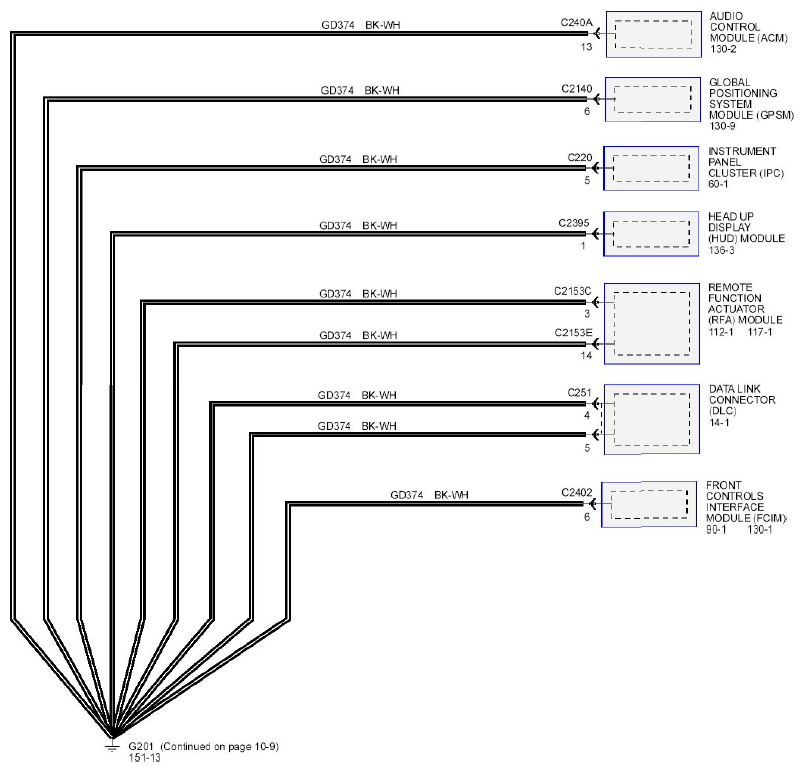

Fig 1: Ground System Wiring Diagram - G201 (1 Of 2)

G09081644

Courtesy of FORD MOTOR CO.

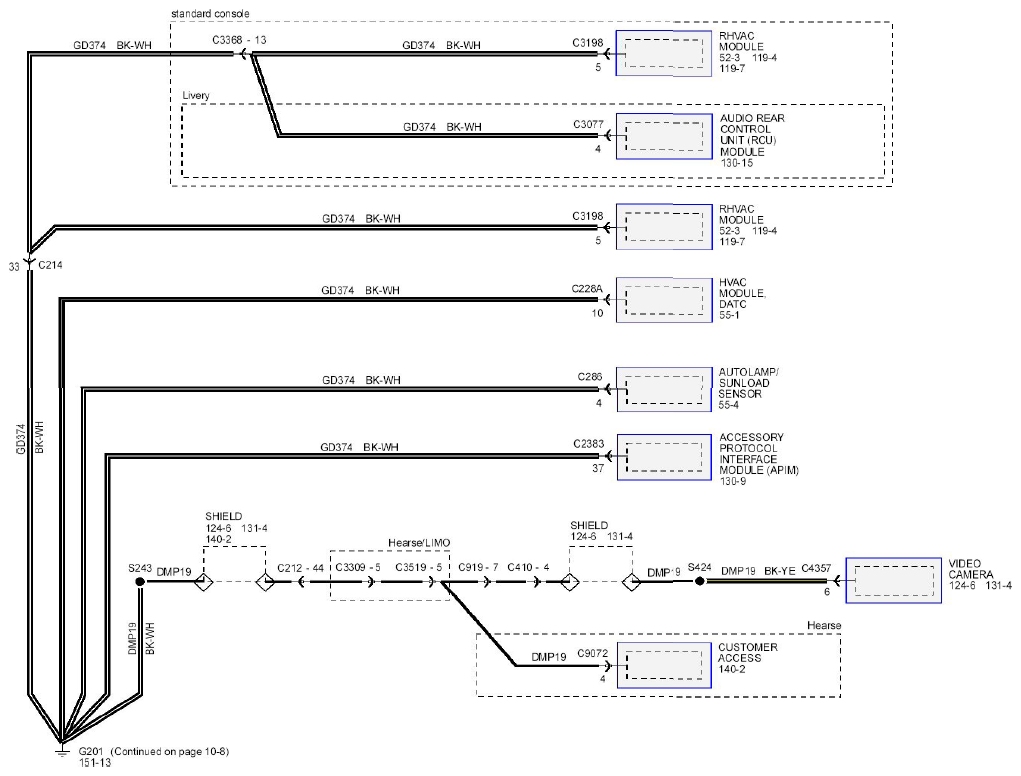

Fig 2: Ground System Wiring Diagram - G201 (2 Of 2)

G09081645

Courtesy of FORD MOTOR CO.
